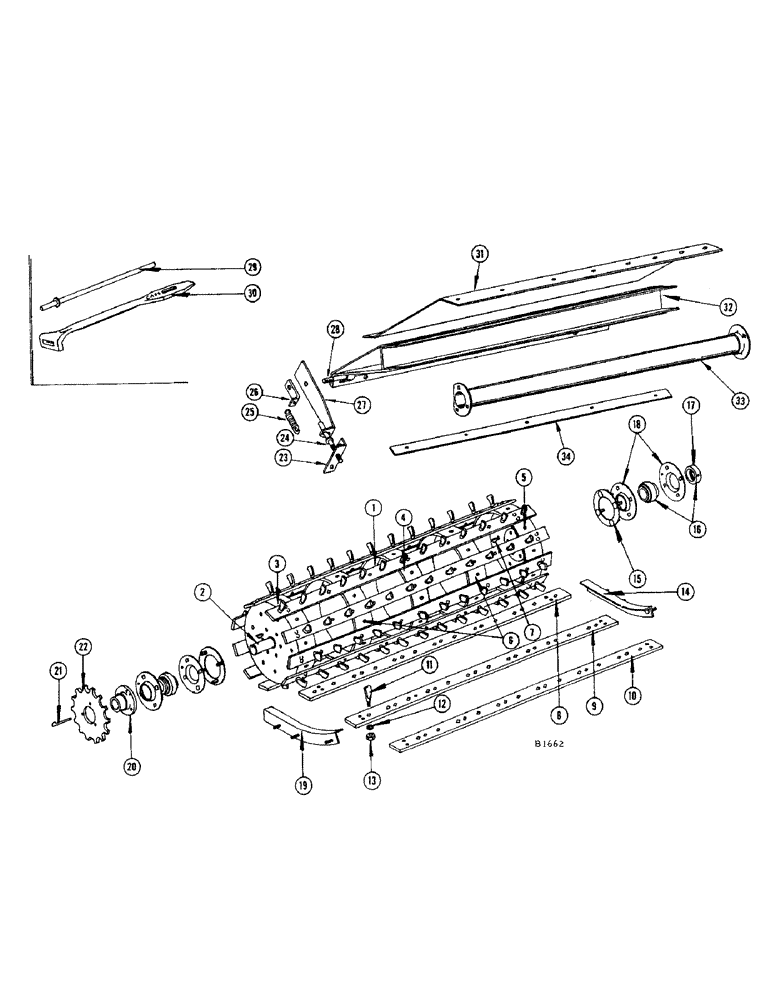

Запчасти Case IH 400 (044) - SPIKE TOOTH CYLINDER (66) - THRESHING

1

F82433

CYLINDER

1шт.

2

F18519

SHAFT

1шт.

3

F84111

HEAD - R.H. cylinder

1шт.

BOLT - rd. hd. sq. nk. 7/16" x 3" (11-748) amd dbl. hex. nut (25-107)

2шт.

4

F81148

RING - center

1шт.

5

F84110

HEAD - L.H.

1шт.

O1632TS1

WASHER - balance (2-1/4" O.D. x 1-1/32 I.D. #18 ga.)

1шт.

SCREW - mach. rd. hd. N.C. 5/16" x 1-1/2" (75-520) and nut (25-105) L.W. (92-5)

2шт.

6

F81149

RING - outside

2шт.

7

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

8

F16784

BAR - #1, less teeth

3шт.

BOLT - rd. hd. sq. nk. 1/2" x 1-1/4" (11-820) and nut (25-108) L.W. (92-8)

3шт.

9

F16785

BAR - #2, less teeth

3шт.

BOLT - rd. hd. sq. nk. 1/2" x 1-1/4" (11-820) and nut (25-108) L.W. (92-8)

6шт.

10

F16786

BAR - #3, less teeth

3шт.

BOLT - rd. hd. sq. nk. 1/2" x 1-1/4" (11-820) and nut (25-108) L.W. (92-8)

6шт.

11

O385T

X

TEETH

111шт.

12

O269T

LOCKWASHER - for O385T teeth

111шт.

13

O236T

NUT - for O385T teeth

111шт.

14

F77257

SHIELD - L.H. cylinder

1шт.

NUT - N.C. 1/4" (25-104) L.W. (92-4)

3шт.

15

F81313

RETAINER - cylinder bearing

2шт.

16

F77924

BEARING

- (Fafnir #1108KRRB)

2шт.

17

O2991CS

X

COLLAR

1шт.

18

F8944

FLANGE

4шт.

19

F77258

SHIELD - R.H.

1шт.

NUT - N.C. 1/4" (25-104) L.W. (92-4)

3шт.

20

F3406

HUB

- cylinder drive

1шт.

21

O30388HT

KEY

- gib

1шт.

22

F8974

SPROCKET ASSY.

SPROCKET - (24T)

1шт.

23

F18978

BRACKET - spring, cylinder stripper

2шт.

24

F82683

BRACKET - adjustment

2шт.

25

F18980

SPRING

2шт.

26

F18979

CLIP - spring

2шт.

27

F18982

COVER - slot

2шт.

28

F18983

ROD - adjustment

1шт.

29

F81694

LEVER - cylinder

1шт.

30

O205T1

STRAIGHTENER - tooth

1шт.

31

F18988

SCREW

SHIELD - air

1шт.

32

F83778

STRIPPER - cylinder

1шт.

FHBNF 3/8" x 4" (14-664)

3шт.

NUT - N.F. 3/8" (25-116)

6шт.

33

F83698

SUPPORT - stripper

1шт.

BOLT - rhd. sq. nk. 3/8" x 3/4" (11-612) nut (25-106) and L.W. (92-6)

3шт.

34

F16800

PLATE - filler

9шт.

FHBNF 3/8" x 3/4" (114-201) L.W. (192-21)

45шт.

NUT - N.F. 3/8" (129-123)

30шт.

F83315

DOOR - spike tooth cylinder

1шт.

HANDLE - Stanley #479 (228-3)

1шт.

RIVET - W.B. hd. 3/16" x 3/8" (49-36)

2шт.

F19316

SEAL - top

1шт.

F19317

SEAL - side

2шт.
