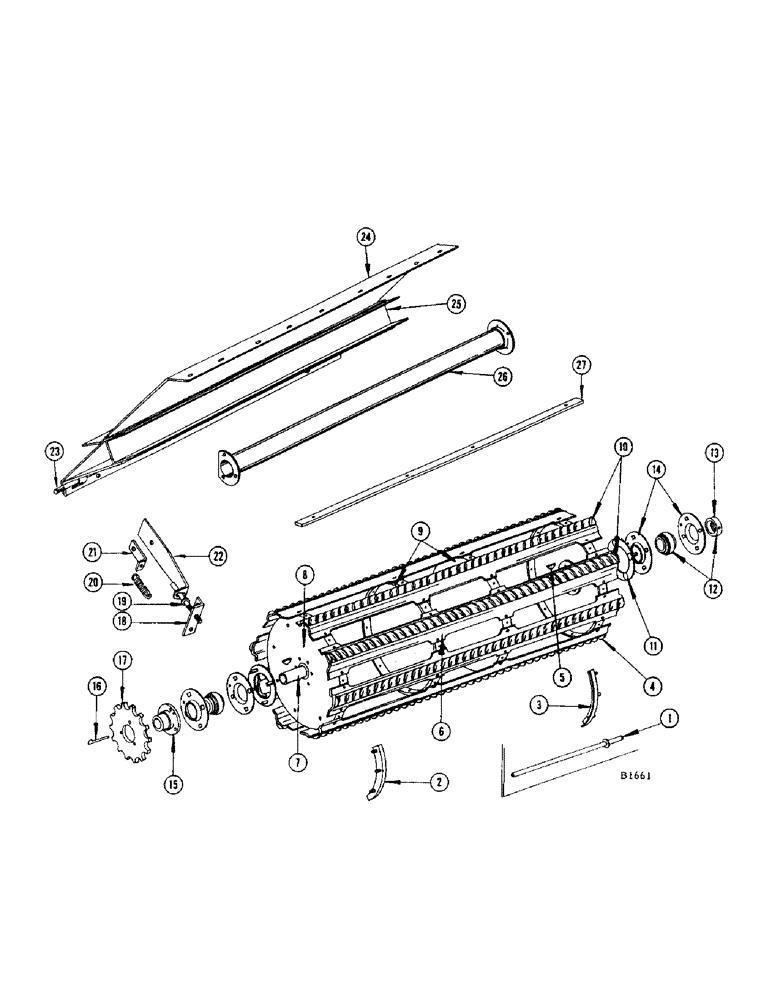

Запчасти Case IH 400 (042) - RUB BAR CYLINDER (66) - THRESHING

1

F81694

LEVER - cylinder

1шт.

2

F76890

SHIELD - R.H. cylinder

1шт.

NUT - N.C. 1/4" (25-104) L.W. (92-4)

3шт.

3

F76889

SHIELD - L.H. cylinder

1шт.

NUT - N.C. 1/4" (25-104) L.W. (92-4)

3шт.

4

F82372

CYLINDER

1шт.

5

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

6

F16933

SUPPORT

8шт.

NUT - N.F. 3/8" (25-116) L.W. (92-6) wshr. (95-6)

64шт.

7

F18519

SHAFT

1шт.

8

F84109

HEAD - outer

2шт.

BOLT - rd. hd. sq. nk. 7/16" x 3" (11-748) and dbl. hex. nut (25-107)

2шт.

9

F80817

HEAD - inner

2шт.

10

F82049

BAR - set of (4) R.H. and (4) L.H.

1шт.

O1632TS1

WASHER - balance, for cylinder (2-1/4" O.D. x 1-1/32" I.D. #18)

1шт.

FHBNC 5/16" x 1-1/4" (113-105) nut (25-105) and L.W. (92-5)

4шт.

11

F81313

RETAINER - cylinder bearing

2шт.

NUT - N.C. 1/2" (25-108) L.W. (92-8)

8шт.

12

F77924

BEARING

- cylinder shaft (Fafnir #1108KRRB)

2шт.

13

O2991CS

X

COLLAR

1шт.

14

F8944

FLANGE

TTE

4шт.

15

F346

HUB - cylinder drive

1шт.

16

O30388HT

KEY

- gib

1шт.

17

F8974

SPROCKET ASSY.

SPROCKET - (24T)

1шт.

18

F18978

BRACKET - spring, cylinder stripper

2шт.

NUT - dbl. N.C. 3/8" (25-106) wshr. (95-6)

2шт.

19

F82683

BRACKET - adjustment

2шт.

20

F18980

SPRING

2шт.

21

F18979

CLIP - spring

2шт.

22

F18982

COVER- slot

2шт.

23

F18983

ROD - adjustment

1шт.

PIN - cotter 1/4" x 1" (132-48)

1шт.

NUT - Flex-Loc, 24 N.F. 3/8" (131-528)

1шт.

24

F18988

SCREW

SHIELD - air

1шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

8шт.

25

F83778

STRIPPER - cylinder

1шт.

FHBNF 3/8" x 4" (14-664)

3шт.

NUT - N.F. 3/8" (25-116)

6шт.

26

F83698

SUPPORT - stripper

1шт.

BOLT - rhd. sq. nk. 3/8" x 3/4" (11-612) nut (25-106) and L.W. (92-6)

3шт.

27

F17568

PLATE - filler

8шт.

FHBNF 3/8" x 1" (114-200) L.W. (192-21) nut (129-123)

24шт.

FHBNF 3/8" x 3/4" (114-209) L.W. (192-21)

8шт.
