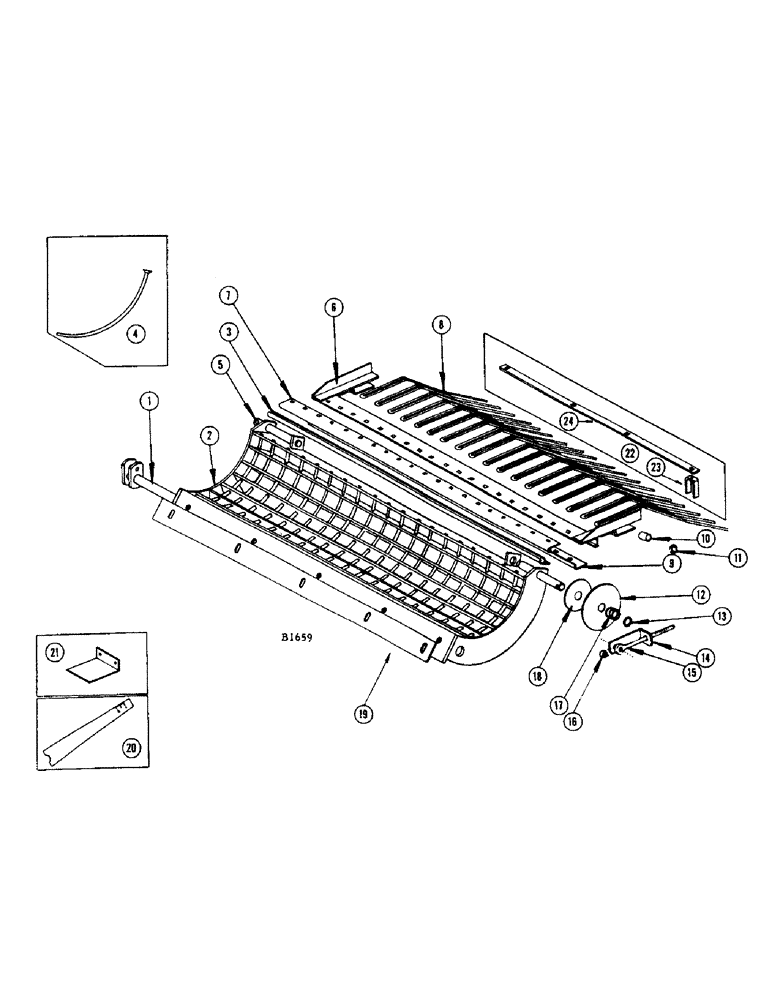

Запчасти Case IH 400 (038) - RUB BAR CONCAVE (66) - THRESHING

1

F81319

SHAFT

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

2

F83531

CONCAVE - rub bar

1шт.

FHBNF 1/4' x 5/8" (14-410) nut (25-114) L.W. (92-4)

2шт.

3

F83522

HINGE - grate tine

1шт.

FHBNC 3/8" x 1" (13-616) nut (25-106) L.W. (92-6)

6шт.

4

F19486

TINE - concave

39шт.

5

F18523

SHAFT - stub

2шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

2шт.

6

F82485

TINE ASSEMBLY

1шт.

7

F17825

HINGE

- support

1шт.

8

F18171

TINE

- grate

22шт.

BOLT - rd. hd. sq. nk. 1/4" x 3/4" (11-412) and nut (25-104) L.W. (92-4)

22шт.

9

F17826

STRIP

- bolting

1шт.

10

O390Z

SPACER - (1/4" x 13/16" pipe)

2шт.

FHBNF 5/16" x 1-1/2" (14-524) nut (25-116) L.W. (92-5)

2шт.

11

O1594N

WASHER - (3/4" O.D. x 25/64" I.D. #14 ga.)

2шт.

12

F16031

COVER - rear

2шт.

13

O907AB

WASHER - spring retainer (1-3/8" O.D. x 25/32" I.D. #18 ga.)

2шт.

14

F80849

ARM

- rear concave adjustment

2шт.

15

F16028

EYEBOLT

2шт.

FHBNF 7/16" x 1-1/4" (14-720) L.W. (92-7)

2шт.

NUT - 3/8" N.F. (25-116)

4шт.

PIN - cotter 3/32" x 3/4" (132-26)

2шт.

16

F17520

SPACER - eyebolt

2шт.

17

O3914CS

SPRING

2шт.

18

F16032

SPACER - rear concave

2шт.

19

F16025

PLATE

- wear,concave

1шт.

20

F16941

GAUGE - concave clearance

1шт.

21

F16778

COVER

2шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

4шт.

22

F17888

RETAINER

20шт.

23

F19485

RETAINER

4шт.

24

F17887

STRIP - filler

6шт.

BOLT - rd. hd. sq. nk. 5/16" x 3-1/4" (111-223) and nut (129-102) L.W. (192-20)

24шт.
