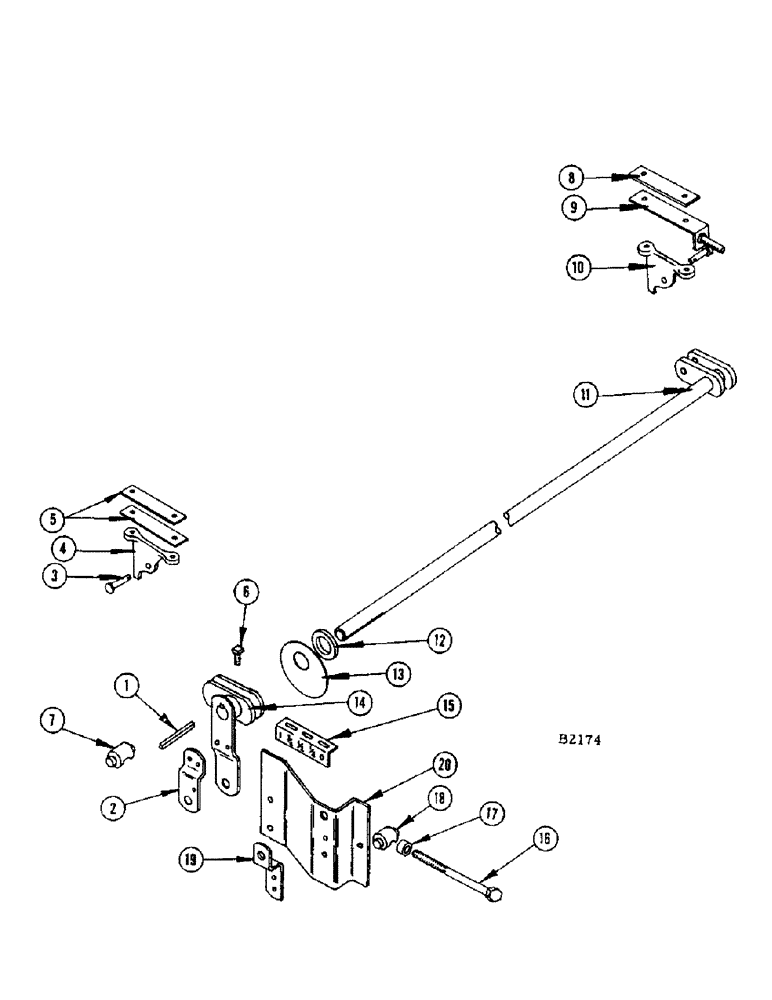

Запчасти Case IH 400 (036) - CONCAVE ADJUSTING LINKAGE (66) - THRESHING

1

T25070

KEY

- (1/4" sq. x 2")

1шт.

2

F17553

RETAINER - trunnion

1шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5)

2шт.

3

O5925AB

X

PIN

2шт.

PIN - cotter 3/32" x 1" (132-28)

2шт.

4

F1413

HANGER - concave

1шт.

FHBNF 3/8" x 1-1/4" (14-620) nut (25-116) L.W. (92-6)

2шт.

5

F16041

SHIM

2шт.

6

85-58

SET SCREW

SCREW - set, 5/16" x 1/2" N.C. sq. hd.

1шт.

7

F17552

TRUNNION

1шт.

8

F16041

SHIM

1шт.

9

F80850

BRACKET

1шт.

NUT - N.C. 3/8" (25-106)

2шт.

10

F1413

HANGER - concave

1шт.

FHBNF 3/8" x 1-1/4" (14-620) nut (25-116) L.W. (92-6)

2шт.

11

F81319

SHAFT - front concave

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

12

O1611CH

SPACER - (2" O.D. x 1-1/32" I.D.)

1шт.

13

F16034

COVER - slot (4-1/8" O.D.)

2шт.

14

F83704

LEVER - adjustment

1шт.

SCREW - set, sq. hd. N.C 5/16" x 1/2" (85-58)

1шт.

15

F20753

SCREW

GAUGE - concave clearance

1шт.

FHBNF 1/4" x 1/2" (114-2) nut (129-121) L.W. (192-19)

2шт.

16

F20744

SCREW

BOLT

1шт.

NUT - 1/2" N.C. (25-148)

2шт.

17

VB1054

SPACER - (3/4" O.D. x 17/32" long)

1шт.

18

F17550

TRUNNION - anchor

1шт.

19

F20685

SCREW

RETAINER - trunnion

1шт.

20

F20684

SCREW

BRACKET

1шт.

FHBNF 3/8" x 3/4" 914-612) nut (25-116) L.W. (92-6)

2шт.

FHBNF 1/2" x 1" (14-816) nut (25-118) L.W. (92-8)

2шт.
