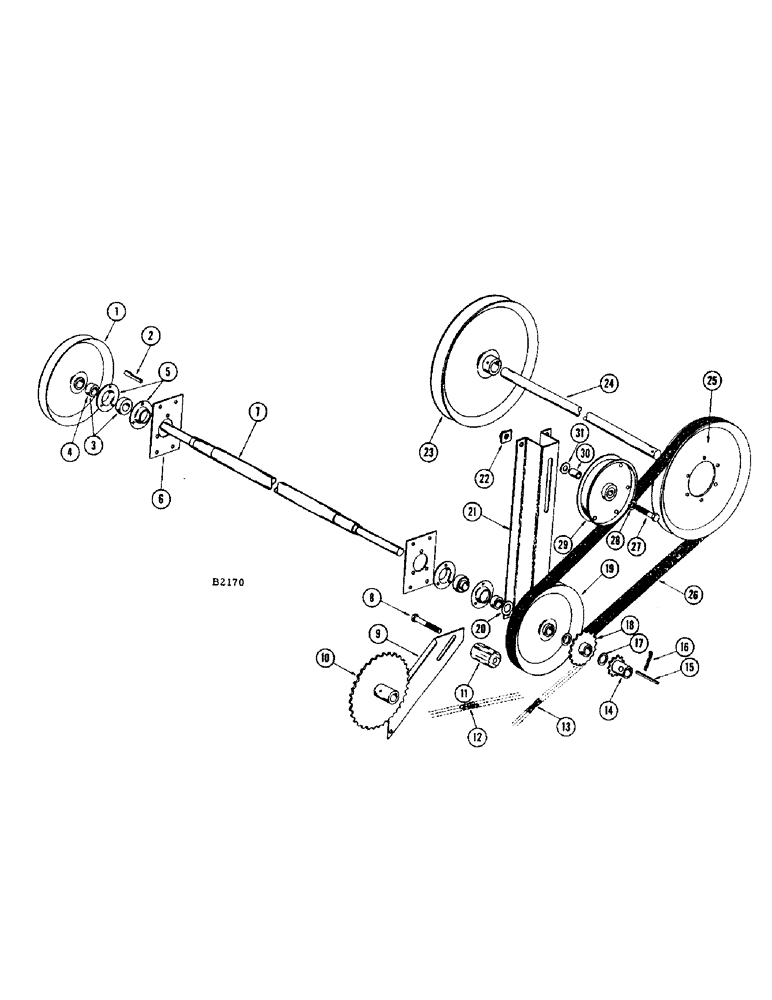

Запчасти Case IH 400 (032) - MAIN HEADER DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F81281

SHEAVE

1шт.

2

F17863

KEY - gib 1/4" x 2-1/2"

1шт.

3

3074CSA

BALL BEARING

- (Fafnir #RA100NPPB)

2шт.

4

O3785CS

X

COLLAR

1шт.

5

O799CB

X

FLANGETTE

4шт.

6

F20632

PLATE - feeder spout bearing

2шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

14шт.

7

F83825

JACKSHAFT - header drive

1шт.

8

11-552

BOLT

- rhd. sq. nk. N.C. 5/16" x 3-1/4"

1шт.

NUT - 5/16" (25-105) L.W. (92-5) fl. wshr. (95-5)

1шт.

9

F20635

BRACKET - idler, reel drive

1шт.

10

F81760

SPROCKET - (60T) drives reel jackshaft, 19-31 RPM with 15T sprocket - 28-45 RPM with 22T drive sprocket

1шт.

PIN - cotter 3/16" x 2" (132-99)

1шт.

11

3162-1/2HT

BLOCK - idler (Wood) reel jackshaft drive

1шт.

12

F20637

CHAIN - reel drive

1шт.

13

F20636

CHAIN - auger drive

1шт.

14

F82898

SPROCKET ASSY.

SPROCKET - (15T) drives reel jackshaft - standard

1шт.

15

O1032HT

X

KEY - 1/4" x 1/4" x 3-1/2"

1шт.

16

132-58

COTTER PIN

PIN - cotter (1/8" x 2-1/4")

1шт.

17

O1932AB

WASHER - (3 inside and 2 outside of F81741)

5шт.

18

F81741

SPROCKET - auger drive (22T)

1шт.

19

F83686

SHEAVE - jackshaft, driven

1шт.

20

O906B

WASHER

- (1-1/2" x 1-1/32" #16 ga.)

1шт.

21

F20587

BRACKET - idler

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-105) L.W. (92-5)

4шт.

WASHER - 5/16" flat (95-5)

2шт.

22

F75313

NUT - lock assembly

1шт.

23

F83685

SHEAVE

1шт.

PIN - cotter 1/4" x 2-1/2" (132-157)

1шт.

24

F20899

SHAFT - upper feed rake

1шт.

25

F81287

SHEAVE - header drive

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

6шт.

26

F17445

V-BELT

BELT - jackshaft

1шт.

27

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- N.F. hex. (5/8" x 3")

1шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

29

F6458

BEARING ASSY

SHEAVE - idler, upper feed rake

1шт.

30

VP592

SPACER - (7/8" O.D. x 5/16" long)

1шт.

31

95-10

WASHER,5/8"

FLATWASHER - 5/8"

1шт.
