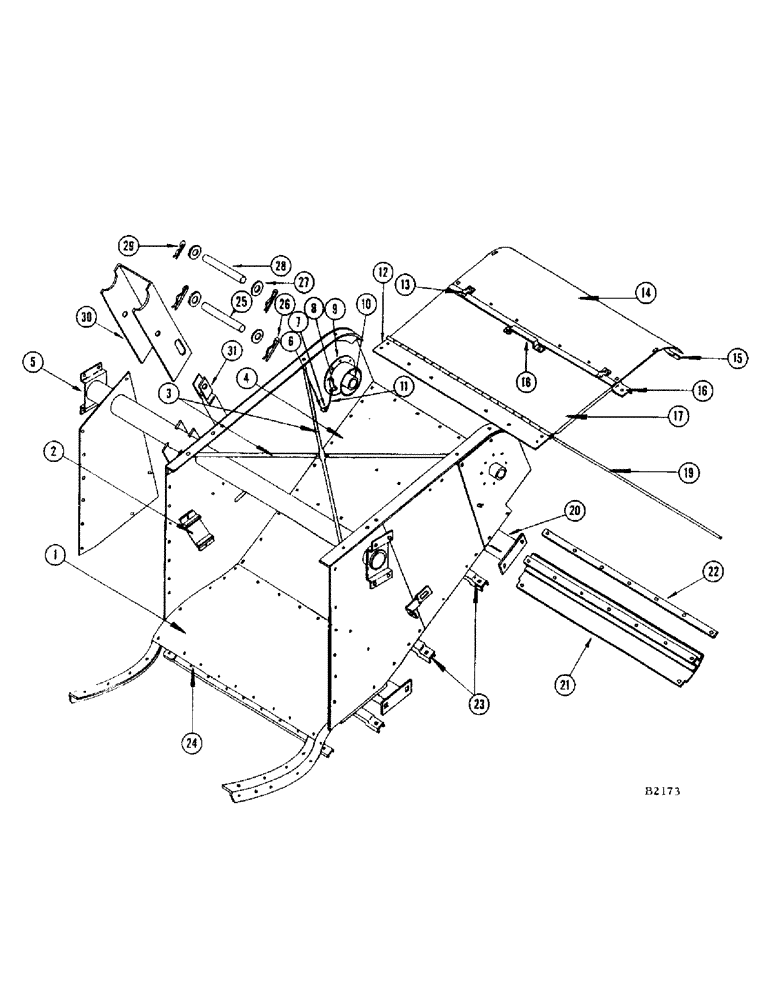

Запчасти Case IH 400 (030) - FEEDER SPOUT (58) - ATTACHMENTS/HEADERS

1

F15730

FLOOR - lower, feeder spout

1шт.

BOLT - rd. hd. sh. sq. nk. 1/4" x 5/8" (12-410) and nut (25-104) L.W. (92-4)

12шт.

2

F82074

BRACKET

- lower, feed rake support

2шт.

FHBNF - 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

4шт.

3

F16822

BRACE - cross

2шт.

FHBNF 1/2" x 1-3/4" (14-828) nut (25-118) L.W. (92-8)

1шт.

FHBNF 1/2" x 2" (14-832) nut (25-118) L.W. (92-8)

1шт.

FHBNF 3/8" x 1-1/2" (14-624) dbl. nut (25-116)

2шт.

4

F15737

FLOOR - upper feeder spout

1шт.

BOLT - rd. hd. sh. sq. nk. 1/4" x 1/2" (12-48) and nut (25-104) L.W. (92-4)

12шт.

BOLT - rd. hd. sh. sq. nk. 1/4" x 5/8" (12-410) and nut (25-104) L.W. (92-4)

10шт.

BOLT - rd. hd. sh. sq. nk. 1/4" x 3/4" (12-412) and nut (25-104) L.W. (92-4)

2шт.

5

F84061

SPOUT - feeder

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

O3049CK

ELBOW - grease line, pivot plate hub

2шт.

8

O3048CK

X

UNION - grease line, pivot plate hub

2шт.

9

F83069

HUB - feeder spout pivot plate (Includes bushing)

2шт.

10

F15709

BUSHING - (Oilite #AA1640)

2шт.

RIVET - ctsk. hd. 1/4" x 3/4" (46-412)

14шт.

11

F15710

LINE - oil, upper feed shaft bearing

2шт.

12

F20589

STRIP - hinge, feeder spout door

1шт.

13

F86525

CLIP

- spring, door

2шт.

14

F15717

SHEET - top, feeder spout

1шт.

15

F16826

ANGLE - feeder spout top, rear

1шт.

16

F16832

ANGLE - reinforcement, feeder spout

1шт.

17

F80727

DOOR

- feeder spout (Includes handle)

1шт.

18

228-3

HANDLE - door, Stanley #479

1шт.

RIVET - W.B. 3/16" x 5/16" (49-35)

2шт.

19

F15764

ROD - hinge, feeder door

1шт.

20

F80718

CHANNEL - cross, feeder spout

2шт.

21

F82068

PLATE - stone trap seal

1шт.

22

F15739

FILLER - feed plate hinge

1шт.

BOLT - rd. hd. sq. nk. 1/4" x 5/8" (11-410) nut (25-104) and L.W. (92-4)

8шт.

23

F15738

REINFORCEMENT - feeder spout floors

3шт.

BOLT - rd. hd. sh. sq. nk. 1/4" x 5/8" (12-410) and nut (25-104) L.W. (92-4)

4шт.

BOLT - rd. hd. sh. sq. nk. (1/4" x 3/4" (12-412) and nut (25-104) L.W. (92-4)

2шт.

24

F17871

REINFORCEMENT - feeder spout floor

1шт.

25

F20619

PIN - hydraulic lift

1шт.

WASHER - 1" (195-53)

2шт.

26

CT1864

COTTER - hair pin

2шт.

27

195-553

WASHER,1", SAE

FLATWASHER- (1" I.D.), high header lift att.

4шт.

28

F20810

PIN - ram pivot, high header lift att.

2шт.

29

CT1864

COTTER - hair pin, high header lift att.

4шт.

30

F20809

EXTENSION - header ram, high lift att.

1шт.

31

F83896

LINK - transport, high header lift att.

1шт.

FHBNF 5/8" x 2-1/2" (114-601) L.W. (192-25) and nut (129-127), high header lift att.

2шт.
