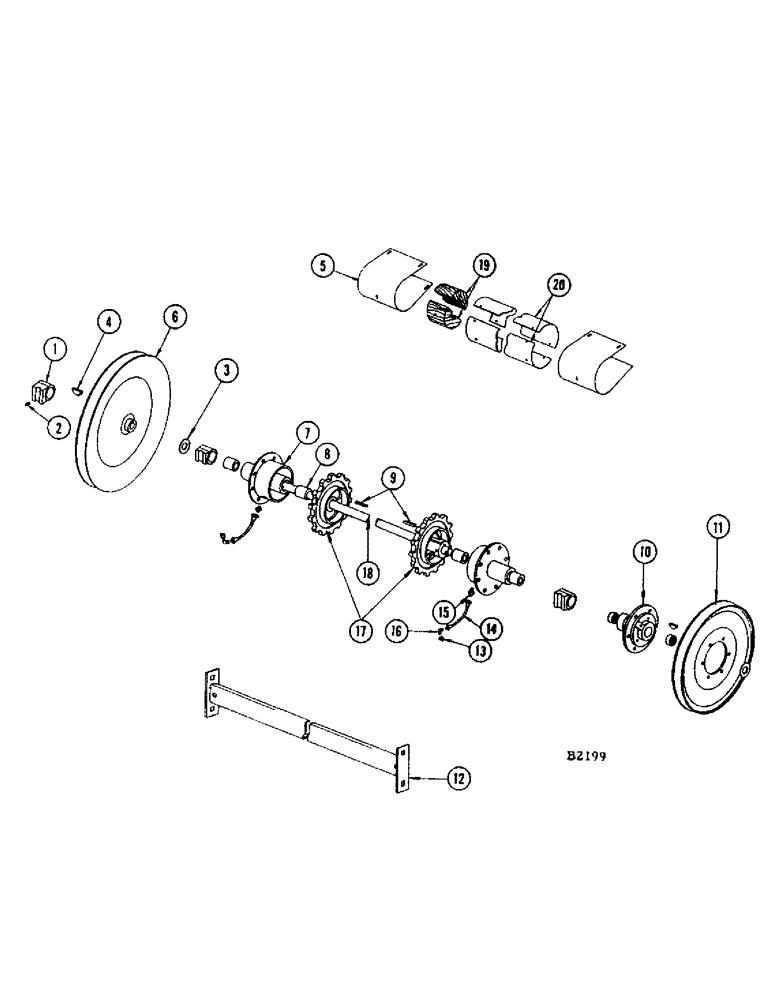

Запчасти Case IH 400 (028) - UPPER FEED RAKE SHAFT (58) - ATTACHMENTS/HEADERS

1

F83093

BEARING

- header pivot

3шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

3

O468CH

WASHER - upper feed rake shaft

1шт.

4

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Header drive #C, 5/16" x 1 1/8"

2шт.

5

F19567

SHIELD - end

2шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (11-612) nut (25-106) and L.W. (92-6)

8шт.

6

F83685

SHEAVE - header, driven

1шт.

PIN - cotter 1/4" x 2-1/2" (132-157)

1шт.

7

F83069

HUB - pivot plate

2шт.

8

F15709

BUSHING (Oilite #AA1604)

2шт.

RIVET - ctsk. hd. 1/4" x 3/4" (46-412)

14шт.

9

F20957

KEY - sprocket

2шт.

10

F83684

HUB - header drive

1шт.

PIN - cotter 1/4" x 2-1/2" (132-157)

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

6шт.

11

F81287

SHEAVE - header drive

1шт.

FHBNF 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

6шт.

12

F83307

SUPPORT - shield

1шт.

BOLT - rd. hd. sq. nk. N.C. 1/2" x 1" (11-816) and nut (25-108) L.W. (92-8)

4шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

F15710

LINE - oil, upper feed shaft bearing

2шт.

15

O3048CK

X

UNION - grease line, pivot plate hub

2шт.

16

O3049CK

ELBOW - grease line, pivot plate hub

2шт.

17

F1685

SPROCKET - upper, feed rake (15T)

2шт.

SCREW - sq. hd. cup pt. set 3/8" x 1" (85-616) and jam nut (25-146)

2шт.

18

F20899

SHAFT - upper, feed rake

1шт.

19

F4338

SUPPORT - shield, feed rake shaft, anti-wrap

6шт.

20

F18059

SHIELD - upper, feed rake shaft, anti-wrap

2шт.
