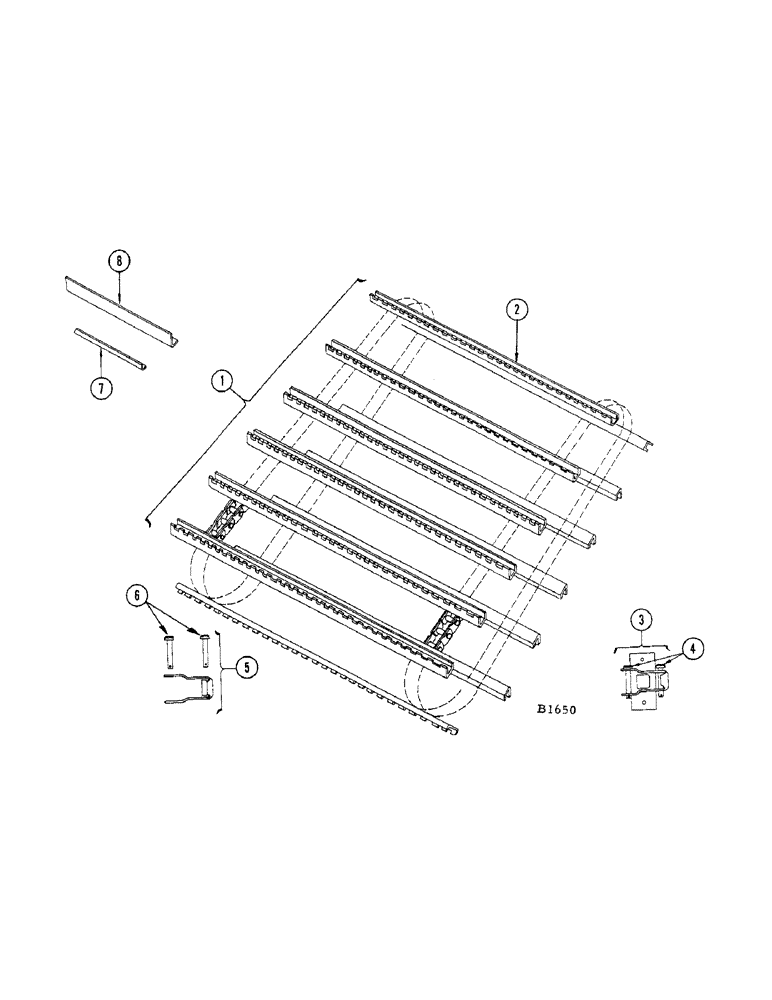

Запчасти Case IH 400 (026) - FEED RAKE (58) - ATTACHMENTS/HEADERS

1

F82576

RAKE - feed, (Consists of (13) F17406 slats, (26) F17927 attachment links, (8) F17928 replacement links and (92) riveted links #662 lock steel chain)

1шт.

2

F17406

SLAT - feed rake

1шт.

RIVET - rd. hd. 1/4" x 5/8" (45-410)

1шт.

3

F17927

DRAG LINK

LINK - attachment

1шт.

4

F17929

AXLE PIN

PIN - connector, for replacement links

1шт.

5

F17928

LINK - replacement

1шт.

6

F17929

AXLE PIN

PIN - connector, for replacement links

1шт.

7

F17576

REINFORCEMENT - wiper strip

5шт.

8

F17575

WIPER

STRIP - wiper

5шт.

FHBNF 1/4" x 3/4" (114-5) nut (129-121) and L.W. (192-19)

1шт.
