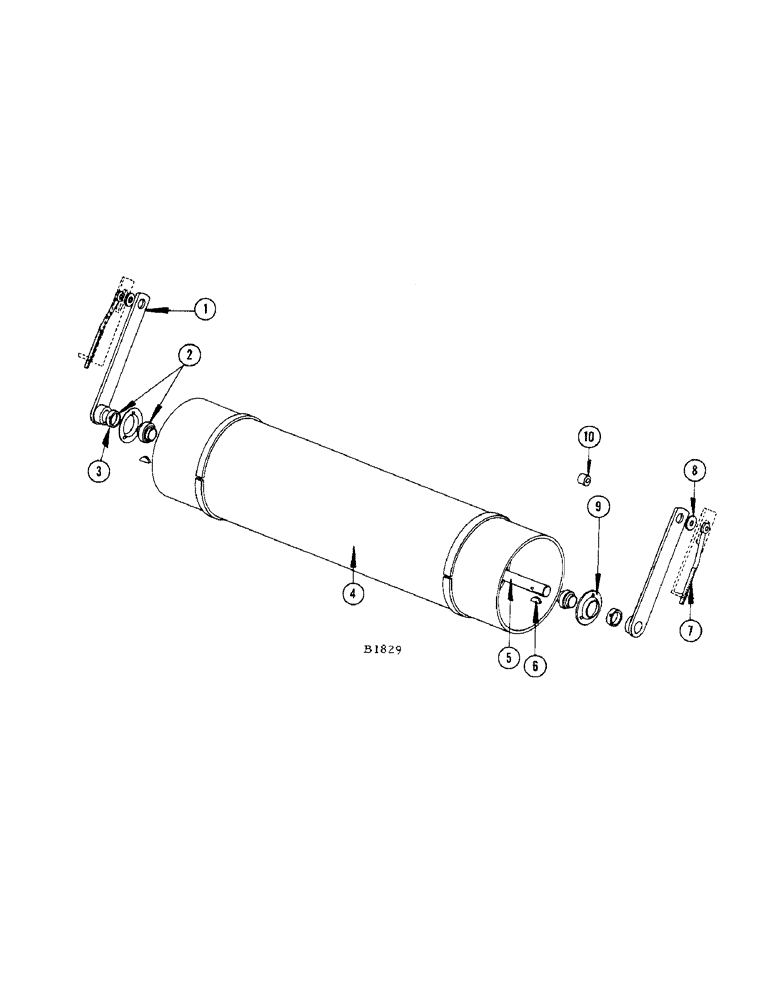

Запчасти Case IH 400 (026[1]) - LOWER FEED RAKE SHAFT (58) - ATTACHMENTS/HEADERS

1

F81691

ARM - adjustment

2шт.

PIN - cotter 3/16" x 2" (132-99)

2шт.

2

3074CSA

BALL BEARING

- (Fanfir (#RA100NPPB with O3785CS collar)

2шт.

3

O3785CS

X

COLLAR

1шт.

4

F82574

DRUB - lower

1шт.

NUT - 5/16" (25-105) L.W. (92-5)

6шт.

5

F17397

SHAFT

- lower, feed rake

1шт.

6

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

2шт.

7

F17402

BOLT - eye

2шт.

NUT - 7/16" N.C. (25-107)

4шт.

8

O273B

WASHER - between hub arm and side sheet

4шт.

9

O799CB

X

FLANGE - for 3074CSA bearing

2шт.

10

F18490

SPACER

- between hub arm and eyebolt

2шт.

FHBNC 7/16" x 1-3/4" (13-728) nut (25-107) L.W. (92-7)

2шт.
