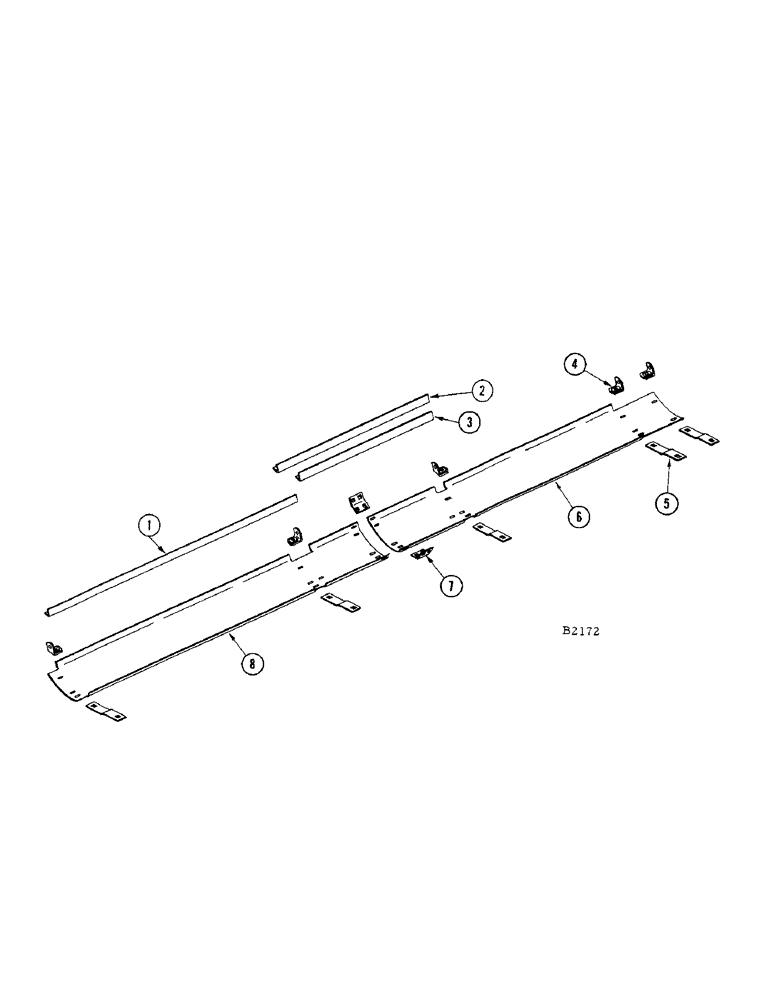

Запчасти Case IH 400 (024[1]) - HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F20806

REINFORCEMENT - outer

1шт.

2

F19992

PACKAGE

REINFORCEMENT - center

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (111-302) L.W. (192-21) and nut (129-103)

2шт.

3

F20805

REINFORCEMENT - inner

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (111-302) L.W. (192-21) and nut (129-103)

4шт.

4

F83117

BRACKET - rear

5шт.

FHBNF 5/16" x 1" (114-104) L.W. (192-20) nut (129-122)

1шт.

FHBNF 5/16" x 7/8" (114-101) L.W. (192-20) nut (129-122)

4шт.

5

F12410

CLIP - front

5шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (111-302) L.W. (192-21) and nut (129-103)

10шт.

6

F20808

PLATE - skid, L.H.

1шт.

FHBNF 3/8" x 1" (114-200) L.W. (192-21) wshr. (195-525)

3шт.

7

F19989

SPLICE

2шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (111-302) L.W. (192-21) and nut (129-103), header skid attachment

8шт.

8

F20807

PLATE - skid, R.H.

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (111-302) L.W. (192-21) and nut (129-103)

2шт.

FHBNF 3/8" x 1" (114-200) L.W. (192-21) wshr. (192-525)

2шт.
