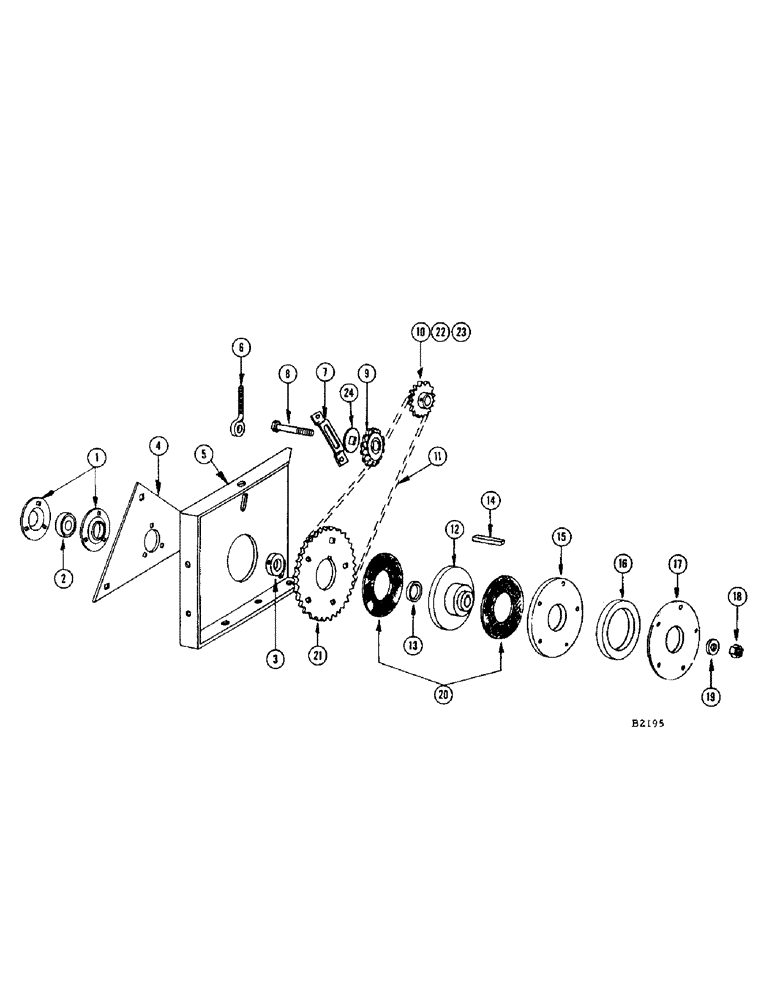

Запчасти Case IH 400 (020) - HEADER AUGER CLUTCH AND DRIVE (58) - ATTACHMENTS/HEADERS

1

O650CB

X

FLANGE

2шт.

2

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - L.H. end, auger shaft (Fafnir #RA103PPB-2)

1шт.

3

O697CB

X

COLLAR

1шт.

4

F15804

PLATE - L.H. auger adjustment

1шт.

5

F20268

BRACKET - auger support

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

6

F17753

EYEBOLT - auger adjustment

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 1" (11-516) dbl. nut (25-105) L.W. (92-5)

1шт.

7

F20626

STRAP - tightener

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

1шт.

FHBNF 1/4" x 5/8" (14-410) nut (25-114) L.W. (92-4)

1шт.

8

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" rd. hd. sq. nk. N.C.

1шт.

NUT - N.C. 5/8" (25-1010) L.W. (92-10) wshr. (95-41)

1шт.

9

F6078

SPROCKET ASSY.

SPROCKET- tightener, main header (17T)

1шт.

10

F81741

SPROCKET - auger drive (22T)

1шт.

11

F20636

CHAIN - auger drive

1шт.

12

F82072

HUB - auger drive

1шт.

13

F17923

BEARING

1шт.

14

O6267HT

KEY

- drive hub

1шт.

15

F17495

PLATE - thrust

1шт.

16

F17496

SPRING - rubber

1шт.

17

F17494

PLATE

- pressure

1шт.

18

131-45

X

NUT - Esna stop (3/4" N.F.)

1шт.

19

95-12

WASHER,3/4"

- () 3/4"

1шт.

20

F82061

FACING - slip clutch (Set of 2)

1шт.

21

F17493

SPROCKET - header auger drive, driven (45T)

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 2" N.F. (111-218) Flex-Loc nut (131-575)

5шт.

22

F81819

SPROCKET - (26T) header auger drive (197 RPM)

1шт.

23

F81747

SPROCKET - (18T) auger drive (132 RPM)

1шт.

24

O2287CS

WASHER

1шт.
