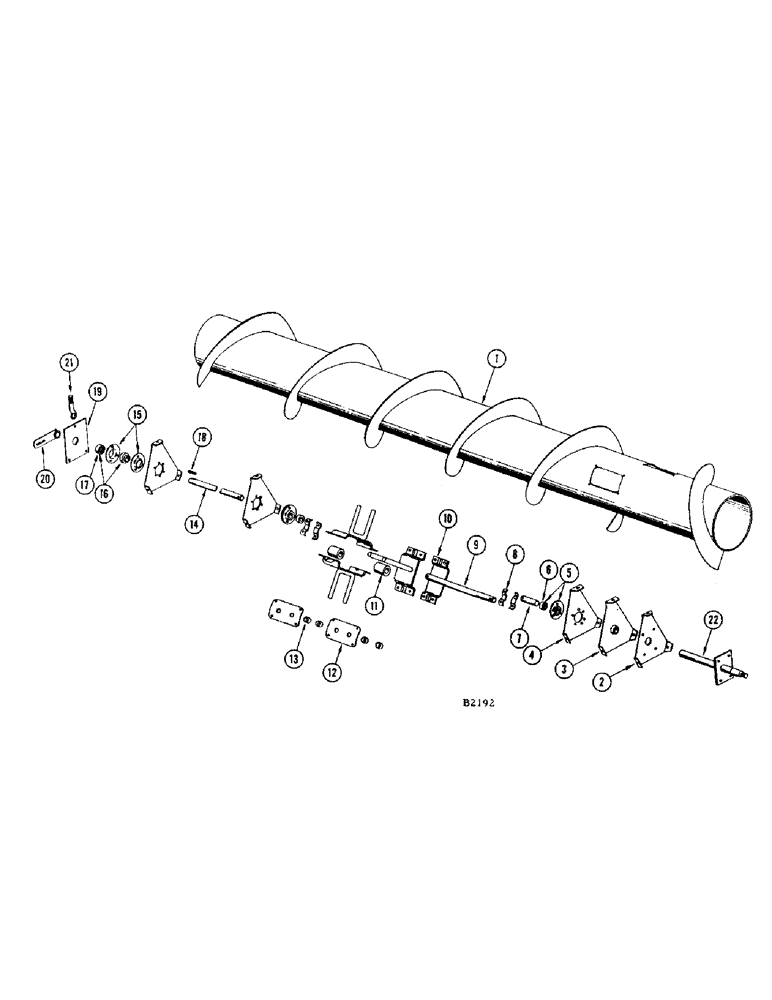

Запчасти Case IH 400 (018) - HEADER AUGER (58) - ATTACHMENTS/HEADERS

1

F83673M

AUGER - header (20" inline finger)

1шт.

F83692

TUBE AND FLIGHTING

1шт.

SCREW - rhd. mach. 3/8" x 3/4" (75-612) L.W. (92-6) and nut (25-106)

15шт.

2

F18442

BULKHEAD - outer drive

1шт.

3

F18441

HEAD

BULKHEAD - inner drive

1шт.

4

O5114CS

PLATE - mounting

3шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) L.W. (92-5) and nut (25-105)

9шт.

5

N5077

FLANGED BEARING

BEARING - (Aetna #AG1014)

2шт.

6

F52076

COLLAR

1шт.

7

O4241CS

SHAFT - stub

1шт.

8

F7473

ARM

- crank

4шт.

FHBNF 5/16" x 2" (14-532) L.W. (92-5) nut (25-115)

4шт.

9

F20639

SHAFT - roller

1шт.

10

F86287

FINGER

4шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) L.W. (92-5) and nut (25-105)

8шт.

11

F11606

BUSHING

- roller

2шт.

12

F76158

LARGE PLATE

PLATE - cover

4шт.

13

F6658

BUSHING

- finger

2шт.

SCREW - pan hd. self tapping #14 x 5/8" (187-348) #C7318-14A1 Tinnerman speed nut (131-136)

16шт.

14

F20638

SHAFT - control

1шт.

15

O799CB

X

FLANGE

2шт.

16

2950CSA

HOUSING ASSY.

BEARING - (Fafnir #1014KLLB)

1шт.

17

O4233CS

COLLAR

1шт.

18

O4284CS

X

KEY - finger control arm

1шт.

19

F15811

RING - R.H. end, auger adjustment

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) L.W. (92-5) and nut (25-105) wshr. (195-21)

2шт.

20

F81959

ARM - adjustment, finger control

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) L.W. (92-5) and nut (25-105) wshr. (195-21)

1шт.

21

F17753

BOLT - eye

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 1" (11-516) L.W. (92-5)

1шт.

NUT - N.C. 5/16" (25-105)

2шт.

22

F83674

SHAFT - auger drive

1шт.

FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)

4шт.
