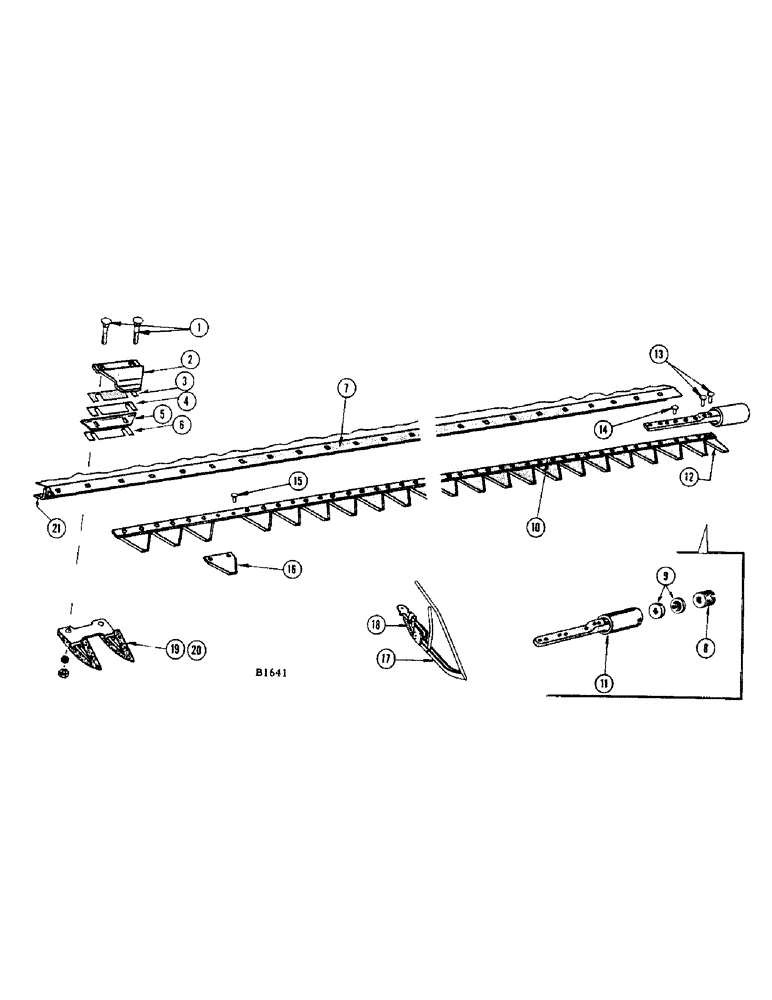

Запчасти Case IH 400 (016) - SICKLE AND CUTTER BAR (58) - ATTACHMENTS/HEADERS

1

F76562

BOLT - sickle guard (3/8" x 1-1/2" rhd. sq. nk. w/nut)

1шт.

2

F8356

CLIP

- hold down

10шт.

3

E3354S

SHIM - hold down clip (26 ga.)

1шт.

4

F8355

SHIM - hold down clip (20 ga.)

1шт.

5

TF7098

PLATE - chafing

10шт.

6

F9392

SHIM - hold down clip (18 ga.)

10шт.

7

F20597

RAIL - cutter bar

1шт.

8

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting

1шт.

PIN - cotter 3/32" x 1/2" (132-24)

2шт.

FITTING - grease 1/8" str. (219-1)

1шт.

9

O2004AB

BEARING - Pitman socket

2шт.

10

TF82508

X

SICKLE

1шт.

11

TF77330

X

HEAD - sickle

1шт.

12

TF9956

X

PLATE - filler, L.H. end of sickle

1шт.

13

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- (1/4" x 1-1/8" rd. hd.) sickle head

2шт.

14

Z1702

RIVET

- #5 (1/2 x 7/8") rhd. (1 lb. pkg. - 111 rivets)

1шт.

15

Z1690

RIVET

- #5 (1/2" x 9/16") rhd. (1 lb. pkg. - 160 rivets)

1шт.

16

TF11304

X

SECTION - sickle (12 ga. under serrated)

40шт.

17

F86299

GUARD - pickup, grain saving

1шт.

18

VT3280

X

SPRING

1шт.

19

F3146

GUARD

- forged

19шт.

20

F3147

GUARD

- end, forged

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 1-1/4" (111-304) and nut (25-116) L.W. (92-6)

2шт.

21

F20598

REINFORCEMENT - cutter bar

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 7/8" (11-514) and nut (25-105) L.W. (92-5)

7шт.
