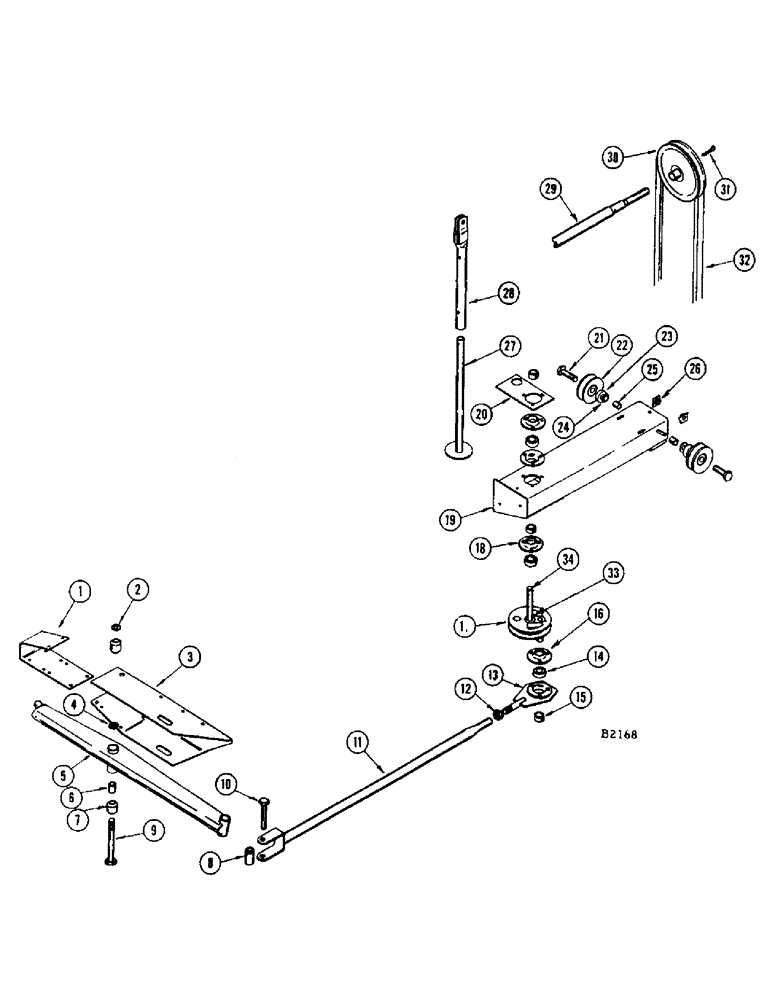

Запчасти Case IH 400 (014) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

1

F17759

REINFORCEMENT - L.H. divider shoe

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 1" (11-516) nut (25-105) and L.W. (92-5)

2шт.

FHBNF 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

2шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

2шт.

FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)

4шт.

2

95-14

WASHER,7/8"

FLATWASHER - I.D. 7/8"

2шт.

3

FF82512

PLATE - support

1шт.

4

O3885A

WASHER

- pivot bolt

2шт.

5

F83677

SWAYBAR

1шт.

FHBNF 5/16" x 1-1/2" (14-524) wshr. (195-21) and dbl. nut (25-115)

2шт.

6

F18853

SPACER

- center

1шт.

7

F18852

RUBBER BUSHING

PIVOT - center

2шт.

8

F18851

BUSHING

- rear

1шт.

9

13-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

- 7/8" x 7" N.C. hex. (Grade 5)

1шт.

NUT - 7/8" N.C. (25-1014) jam nut (25-1414)

1шт.

10

14-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

- 5/8" x 4-1/2" hex. N.F.

1шт.

NUT - 5/8" N.C. (25-1110) L.W. (92-10)

1шт.

11

F83683

PITMAN - sickle

1шт.

12

25-1514

JAM NUT,Jam, 7/8"-14, G5

- 7/8" jam

1шт.

13

F82633

PLATE ASSY.

PLATE - bearing

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 1" (11-616) nut (25-106) and L.W. (92-6)

6шт.

14

1443CKA

BALL BEARING

BEARING - drive shaft (Fafnir #RA102PPB)

3шт.

15

O3203CK

COLLAR

1шт.

16

O650CB

X

FLANGETTE

3шт.

17

F83681

SHEAVE AND PIN

1шт.

18

F19270

FLANGE

TTE - bearing

1шт.

FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)

3шт.

19

F83671

CHANNEL - support

1шт.

20

F20878

BRACKET - stand

1шт.

FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)

3шт.

21

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

2шт.

22

F81124

SHEAVE - idler

2шт.

23

F7293

BEARING

- (Fafnir #203PP6)

1шт.

24

95-10

WASHER,5/8"

- flat 5/8"

2шт.

25

VB1180

SPACER - idler sheave

2шт.

26

F75313

LOCKNUT

2шт.

27

F83895

STAND

1шт.

FHBNF 1/2" x 2-1/2" (14-840) nut (25-118) L.W. (92-8)

1шт.

28

F83864

STAND - support

1шт.

FHBNF 5/8" x 2" (14-1032) nut (25-1110) L.W. (92-10)

1шт.

FHBNF 1/2" x 2-1/2" (14-840) nut (25-118) L.W. (92-8)

1шт.

29

F83825

JACKSHAFT - header drive

1шт.

30

F81281

SHEAVE - sickle drive

1шт.

31

F17863

GIB KEY

1шт.

32

F20628

BELT - sickle drive

1шт.

33

O4746TF

KEY

1шт.

34

F18845

SHAFT

1шт.
