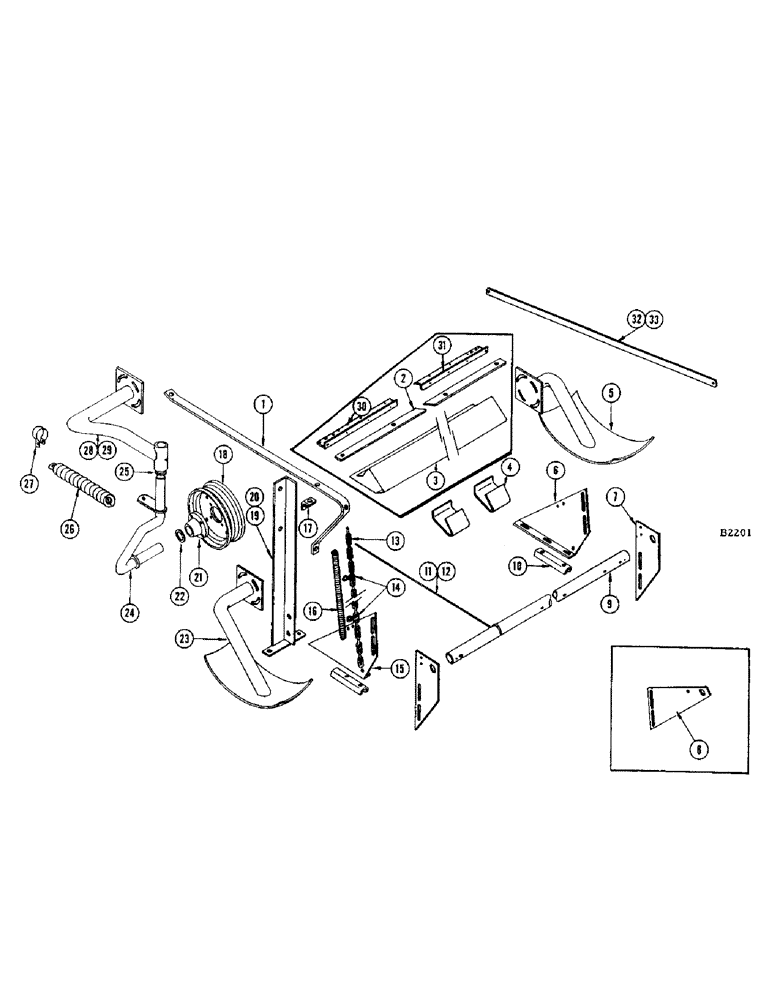

Запчасти Case IH 400 (012) - PICKUP SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F17679

SUPPORT - mounting angle

2шт.

2

F9643

WIPER - finger

2шт.

FHBNF 1/4" x 5/8" (14-410) nut (25-114) L.W. (92-4) and fl. wshr. (95-4)

10шт.

3

F9642

SHIELD - sickle guard

2шт.

4

F12150

SUPPORT - sickle guard shield F9642 (Use with F3132 sickle guard) Not shown

4шт.

5

F77372

RUNNER - L.H.

1шт.

NUT - 3/8" N.C. (25-106) L.W. (92-6) fl. wshr. (95-6)

4шт.

6

F16731

BRACKET - L.H. lower windguard support

1шт.

FHBNF 5/16" x 3/4 (114-102) nut (129-122) L.W. (192-20)

3шт.

WASHER - 5/16" (195-103)

5шт.

FHBNF 5/16" x 1" (114-104) nut (129-122) L.W. (192-20)

2шт.

WASHER - 5/16" (195-103)

2шт.

7

F12552

SUPPORT - upper windguard (Before #8262501)

2шт.

FHBNF 7/16" x 2-1/4" (114-304)

2шт.

NUT - 7/16" N.F. (129-124)

4шт.

8

F9981

SUPPORT - upper windguard (#8262501 and after)

2шт.

FHBNF 7/16" x 2-1/4" (114-304)

2шт.

NUT - 7/16" N.F. (129-124)

4шт.

9

F17671

PIPE - windguard

1шт.

PIN - cotter (132-99)

2шт.

BOLT - tap N.C. 7/16" x 4" (123-401)

2шт.

LOCKNUT - 7/16" N.C. Gripco jam (131-353)

4шт.

10

F17680

REINFORCEMENT - shield extension

2шт.

11

F12549

TINE - windguard (Before #8262501)

15шт.

12

F9639

TINE - windguard (#8262501 and after)

15шт.

13

F83797

CHAIN (AG)

CHAIN - support

2шт.

14

F20641

"S" HOOK

4шт.

FHBNF 5/16" x 1-1/4" (114-100) wshr. (195-103)

2шт.

NUT - 5/16" N.F. (129-122)

4шт.

15

F17676

BRACKET - R.H. lower windguard support

1шт.

FHBNF 5/16" x 3/4" (114-102) nut (129-122) L.W. (192-20)

3шт.

WASHER - 5/16" (195-103)

5шт.

FHBNF 5/16" x 1" (114-104) nut (129-122) L.W. (192-20)

2шт.

WASHER - 5/16" (195-103)

2шт.

16

F12558

SPRING - for supporting arms

2шт.

17

F17683

CLIP - mounting angle support

2шт.

FHBNF 5/16" x 1" (114-104) nut (129-122) L.W. (192-20)

2шт.

18

F11478

WHEEL - caster (2) disc halves for 12 x 3.50 semi-pneumatic tire

2шт.

FITTING - grease 1/8" str. (219-1)

2шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

8шт.

19

F86661

ANGLE - L.H. mounting

1шт.

WASHER - 3/8" (195-104)

3шт.

FHBNF 3/8" x 1-1/4" (114-201) nut (129-123) and L.W. (192-21)

3шт.

FHBNF 7/16" x 1" (114-301) nut (129-124 L.W. (192-22)

3шт.

20

F86662

ANGLE - R.H. mounting

1шт.

WASHER - 3/8" (195-104)

3шт.

FHBNF 3/8" x 3/4" (114-209) nut (129-123) L.W. (192-21)

1шт.

FHBNF 3/8" x 1-1/4" (114-201) nut (129-123) and L.W. (192-21)

3шт.

FHBNF 7/16" x 1" (114-301) nut (129-124 L.W. (192-22)

2шт.

21

F1355

HUB - caster wheel

2шт.

FITTING - grease 1/8" str. (219-1)

2шт.

FHBNF 5/16" x 7/8" (14-514) nut (25-115) L.W. (92-5)

8шт.

22

O46FG

WASHER - (1-3/4" O.D. x 1-1/32" I.D. #16 ga.) axle

6шт.

23

F77373

RUNNER - R.H.

1шт.

NUT - 3/8" N.C. (25-106) L.W. (92-6) Fl. Wshr. (95-6)

4шт.

24

F86973

AXLE - caster wheel

2шт.

PIN - cotter 1/4" x 1-3/4" (132-307)

4шт.

25

O124GR

WASHER

- (1-1/2" O.D. x 1-1/32" I.D. #12 ga.) axle

4шт.

26

O2818BF

SPRING

2шт.

27

F12970

CLAMP

2шт.

28

F78891

ARM - L.H. support, caster wheel

1шт.

FITTING - grease 1/4" str. (219-8)

1шт.

29

F78892

ARM - R.H. support, caster wheel

1шт.

FITTING - grease 1/4" str. (219-8)

1шт.

30

F10952

PLATE - filler, R.H. (See note)

1шт.

31

F10951

PLATE - filler, L.H. (See note)

1шт.

BOLT - rhd. sq. nk (3/8" x 3/4" (111-302) nut (129-103) and L.W. (192-21)

10шт.

31

F10951

PLATE - filler, L.H. (See note)

1шт.

BOLT - rhd. sq. nk. 3/8" x 3/4" (111-302) nut (129-103) and L.W. (192-21)

10шт.

33

F12550

BRACE - R.H. mounting angle

1шт.

32

F12551

BRACE - L.H. mounting angle

1шт.
