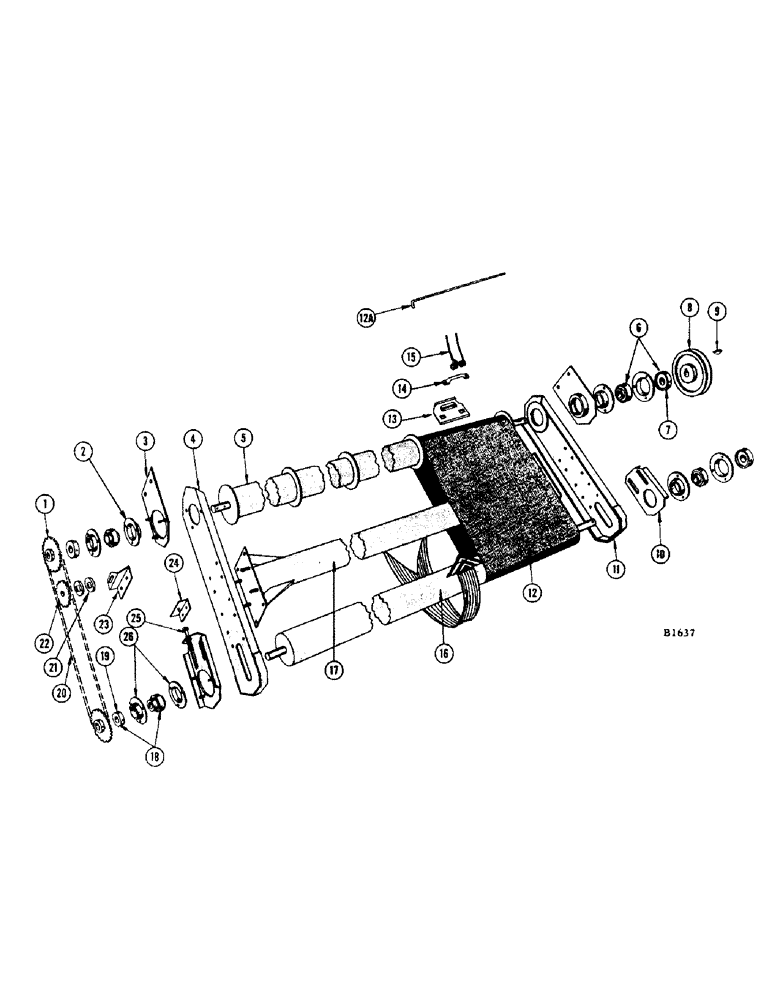

Запчасти Case IH 400 (010) - PICKUP CONVEYOR (58) - ATTACHMENTS/HEADERS

1

F77273

SPROCKET - roller drive (10T) front and rear, R.H. end

2шт.

PIN - Driv-Loc type "A" 1/4" x 1-3/4" (135-78)

2шт.

2

O799CB

X

FLANGETTE - for 3074CSA

4шт.

NUT - 5/16" N.C. (25-105) L.W. (92-5)

6шт.

3

F77175

BRACKET - bearing, for rear conveyor tube

2шт.

4

F82679

SHEET - R.H. end

1шт.

NUT - 5/16" N.F. (25-115) L.W. (92-5) fl. wshr. (95-5)

2шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5)

2шт.

5

F77171

ROLLER - rear, conveyor

1шт.

6

3074CSA

BALL BEARING

- rear roller shaft (Fafnir #RA100NPPB w/O3785CS collar)

2шт.

7

O3785CS

X

COLLAR - for 3074CSA bearing

1шт.

8

F81889

SHEAVE - (8" O.D.) rear roller drive, driven (L.H. end)

1шт.

PIN - Driv-Loc type "A" 1/4" x 3/4" (135-360)

1шт.

9

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

F81889 sheave to F77171 tube #A, 1/4" x 7/8", HT

1шт.

10

F77369

SCREW

PLATE - bearing, front adjusting

2шт.

NUT - 5/16" N.F. (25-115) L.W. (92-5) fl. wshf. (95-5)

2шт.

11

F82678

SHEET - L.H. end

1шт.

12

F79158

CONVEYOR BELT

BELT, CONVEYOR, Pickup, (Includes belt, (36) F10861 clips, (36) F15243 fingers, (36) F15245 retainers and F78466 lacing set)

4шт.

F78466

SET - lacing, for F79158 conveyor belt (Not shown)

1шт.

12a

F21401

PIN - belt lacing

1шт.

13

F10861

CLIP - hold down, spring finger (For conveyor)

36шт.

BOLT - N.C. flat ctsk. 1/4" x 3/4" (121-5) nut (25-104) and L.W. (92-4)

72шт.

14

F15245

RETAINER - spring finger (For conveyor)

36шт.

15

F15243

SPRING

FINGER - spring (For conveyor)

36шт.

16

F77269

ROLLER - front, conveyor

1шт.

17

F81884

TUBE - torque, cross brace

1шт.

NUT - 3/8" N.C. (25-106) L.W. (92-6) fl. wshr. (95-6)

8шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

18

3074CSA

BALL BEARING

- front conveyor roller shaft (Fafnir #RA100NPPB w/03785CS collar)

2шт.

19

O3785CS

X

COLLAR

1шт.

20

F8655

X

CHAIN - lower roller drive (Use (2) B12483 chains, (2) B12485 chains, (1) B12512 conn. link, (1) B12513 roller link and (3) B12515 offset links #C-2040 roller chain)

1шт.

21

O2287CS

WASHER - idler bolt (111-601) 1-5/16" O.D. x 21 32" sq. hole

2шт.

22

F8659

SPROCKET - idler (11T) conveyor chain tightener

1шт.

23

F8658

BRACKET - idler

1шт.

24

F77596

ANGLE - adjusting, for adjusting screw

2шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5)

4шт.

25

F9423

SCREW - adjusting, for bearing plate

2шт.

26

O799CB

X

FLANGETTE - for 3074CSA bearing

4шт.

NUT - 5/16" N.C. (25-105) L.W. (92-5)

6шт.
