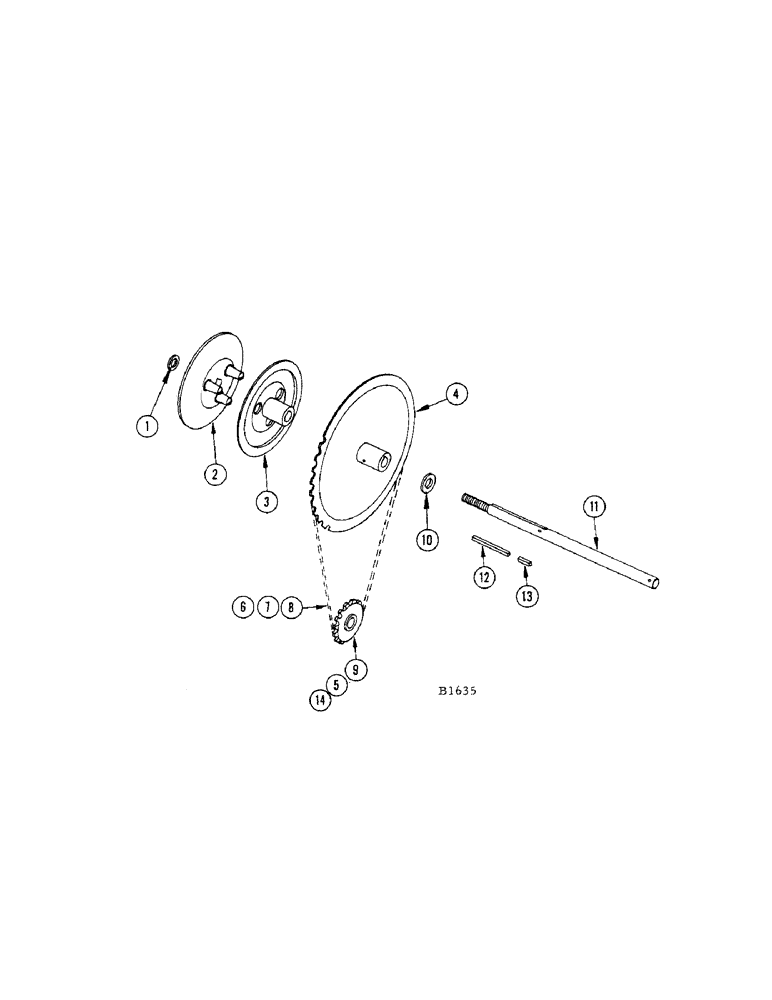

Запчасти Case IH 400 (008) - REEL DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F20276

WASHER - (1-7/16" O.D. x 25/32" I.D. #10 ga.)

1шт.

2

F1572

SHEAVE - half (8.66 O.D.)

1шт.

FITTING - grease 1/8' str. (219-1)

1шт.

3

F1313

SHEAVE

- half (8.66 O.D.)

1шт.

4

F81760

SPROCKET - drives reel jackshaft, driven (60T) - 19-31 RPM with (15T) drive sprocket and 28-45 RPM with (22T) drive sprocket

1шт.

PIN - cotter 3/16" x 2" (132-99)

1шт.

5

F82850

DRIVEN SPROCKET

SPROCKET - (22T) drives reel drive jackshaft - special

1шт.

6

F17924

X

CHAIN - drives drive jackshaft (Use (1) B12472 chain, (1) B12473 chain and (1) B12503 roller link #40) See note

1шт.

7

F17514

X

CHAIN - short extension (Use (3) B12503 roller links #40) See note

1шт.

8

F20637

CHAIN - reel drive (Use (1) B12470 chain, (1) B12473 chain, (1) B12501 conn. link, (1) B12502 offset link, (1) B12503 roller link #40) See note

1шт.

9

F82898

SPROCKET ASSY.

SPROCKET - (15T) drives reel drive jackshaft - standard

1шт.

10

O3032B

X

WASHER - jackshaft

2шт.

11

F15845

JACKSHAFT - reel drive

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

NUT - jam 3/4" N.F. (25-1512)

2шт.

12

F8896

KEY - drive sheaves

1шт.

13

O1045B

KEY

- drive sprocket

1шт.

14

F82851

SPROCKET ASSY.

SPROCKET - (27T) pickup drive

1шт.
