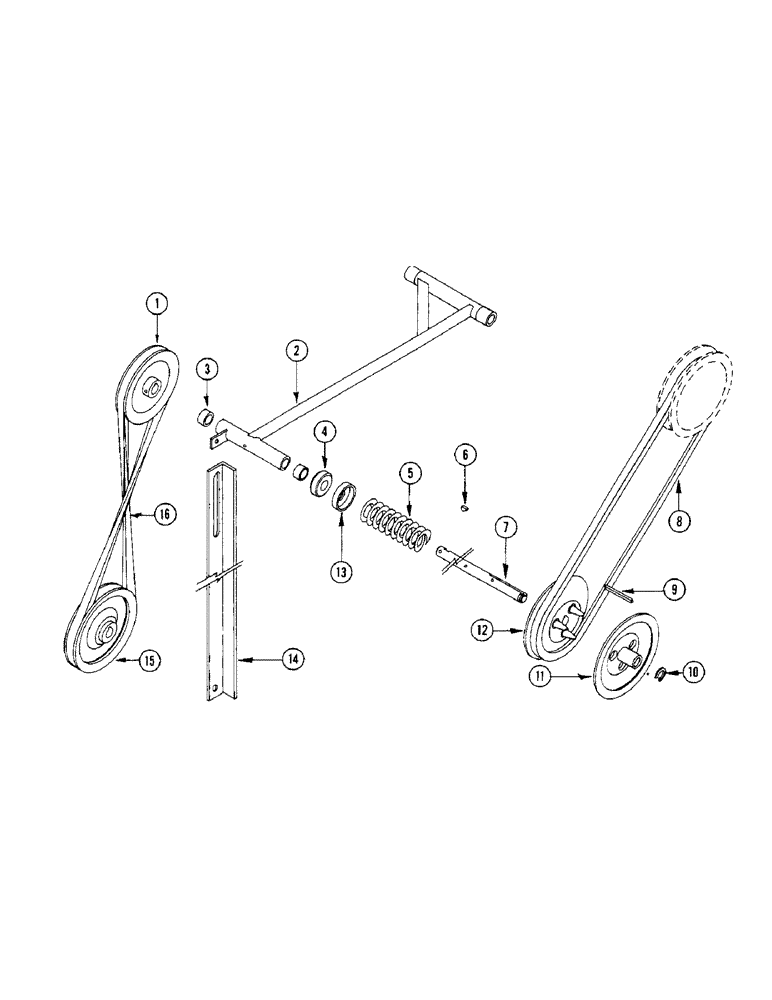

Запчасти Case IH 400 (008[1]) - PICKUP DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F77186

SHEAVE

1шт.

PIN - cotter 1/4" x 2-1/2" (132-157)

1шт.

2

F81886

SUPPORT

1шт.

3

O7056AB

X

BUSHING

4шт.

4

O1664FH

COLLAR - jackshaft

1шт.

PIN - cotter (3/16" x 2-1/2" (132-102)

1шт.

5

F9021

VALVE SPRING

SPRING - variable drive sheaves

1шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

For drive sheaves to jackshaft #A, 1/4" x 7/8"

1шт.

7

F17675

JACKSHAFT - pickup drive

1шт.

FITTING - grease 1/8" str. (219-8)

2шт.

8

F16745

V-BELT

BELT - drive

1шт.

9

F8896

KEY -, Serial Range: sheaves-jackshaft

1шт.

10

O5872AB

X

SNAP RING

1шт.

11

F1313

SHEAVE

HALF - driven

1шт.

12

F1572

SHEAVE HALF - driven

1шт.

FITTING - grease 1/8" str. (219-1)

1шт.

13

F16078

WASHER - cup

1шт.

14

F17678

BRACKET - tightener

1шт.

15

F81889

SHEAVE - rear roller drive, driven (8" O.D.) L.H. end only

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - Driv-Loc type "A" 1/4" x 3/4" (135-360)

1шт.

16

F16744

V-BELT

BELT - rear roller drive

1шт.
