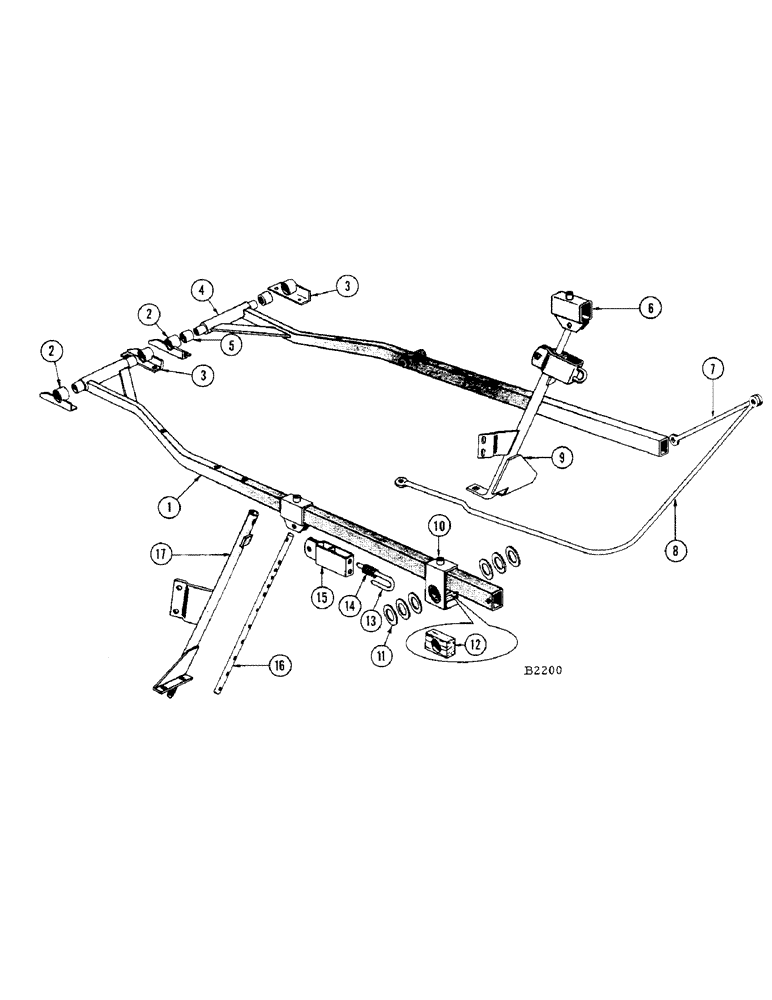

Запчасти Case IH 400 (006) - REEL SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F82529

ARM - support, R.H.

1шт.

2

F81278

BRACKET - R.H. support arm pivot

2шт.

BOLT - rd. hd. sh. sq. nk. 5/16" x 5/8" (12-510) and nut (25-105) L.W. (92-5)

2шт.

BOLT - rd. hd. sh. sq. nk. 5/16" x 3/4" (12-512) and nut (25-105) L.W. (92-5)

2шт.

3

F81054

BRACKET - L.H. support arm pivot

2шт.

BOLT - rd. hd. sh. sq. nk. 5/16" x 5/8" (12-510) and nut (25-105) L.W. (92-5)

1шт.

BOLT - rd. hd. sh. sq. nk. 5/16" x 3/4" (12-512) and nut (25-105) L.W. (92-5)

1шт.

4

F82527

ARM AND BUSHING - support, L.H.

1шт.

5

O7056AB

X

BUSHING - for L.H. arm

2шт.

FITTING - grease 1/4" - 28 N.F. (219-87)

1шт.

6

F82535

BRACKET - support, R.H. and L.H.

2шт.

SCREW - sq. hd. N.C. flat point set 3/8" x 1" (181-647)

1шт.

7

F20027

LINK

- divider loop

2шт.

8

F20026

LOOP - divider point

2шт.

9

F82532

SUPPORT - L.H.

1шт.

BOLT - rd. hd. sq. nk. 7/16" x 1-1/4" (111-404) and nut (129-104) L.W. (192-22)

1шт.

10

F82597

BRACKET - support

2шт.

SCREW - sq. hd. N.C. cup point set 3/8" x 1" (85-616)

2шт.

11

O865HT

WASHER - 3 each side of shaft bearings

12шт.

12

F4342

BEARING - wood, shaft

2шт.

13

F18717

PIN - latch

2шт.

WASHER - 5/16" (95-5)

2шт.

PIN - cotter 3/32" x 3/4" (132-26)

2шт.

14

O2985AB1

SPRING

- latch pin

2шт.

15

F82537

SUPPORT - latch pin

2шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

16

F18715

SUPPORT - upper

2шт.

FHBNF 5/16" x 1/2" (14-524) Flex-Loc nut (131-527)

1шт.

17

F82538

SUPPORT - R.H.

1шт.

FHBNF 3/8" x 1-1/4" (114-201) nut (129-123) and L.W. (192-21)

1шт.

FHBNF 3/8" x 7/8" (114-218) nut (129-123) L.W. (192-21) fl. wshr. 3/8" (195-104)

1шт.
