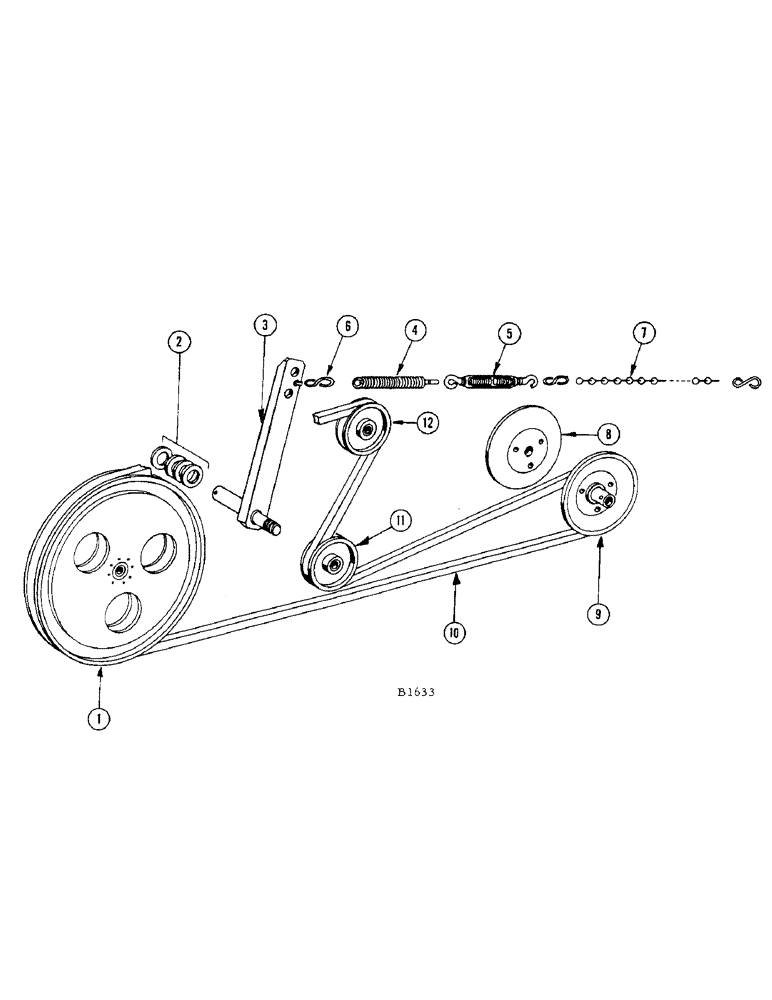

Запчасти Case IH 400 (006[1]) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F82542

SHEAVE

- drive

1шт.

FHBNF 1/2" x 2-3/4" (114-414) dbl. jam nut (129-165)

1шт.

2

O124GR

WASHER

4шт.

3

F83160

BRACKET - idler

1шт.

LOCKWASHER - 5/8" (92-10) N.F. nut (25-1110)

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

4

O1158FS1

SPRING

1шт.

5

F10915

TURNBUCKLE

1шт.

6

F20641

"S" HOOK

3шт.

7

F20640

CHAIN - idler

1шт.

8

F1572

SHEAVE - half (8.66 O.D.)

1шт.

9

F1313

SHEAVE

- half (8.66 O.D.)

1шт.

10

F16633

BELT

Drive

1шт.

11

F11626

BEARING

IDLER

1шт.

12

F6474

PULLEY

IDLER

1шт.

FHBNF 5/8" x 2-1/2" (14-1040) nut (25-1110) and L.W. (92-10)

1шт.

WASHER - 5/8" (195-41)

1шт.
