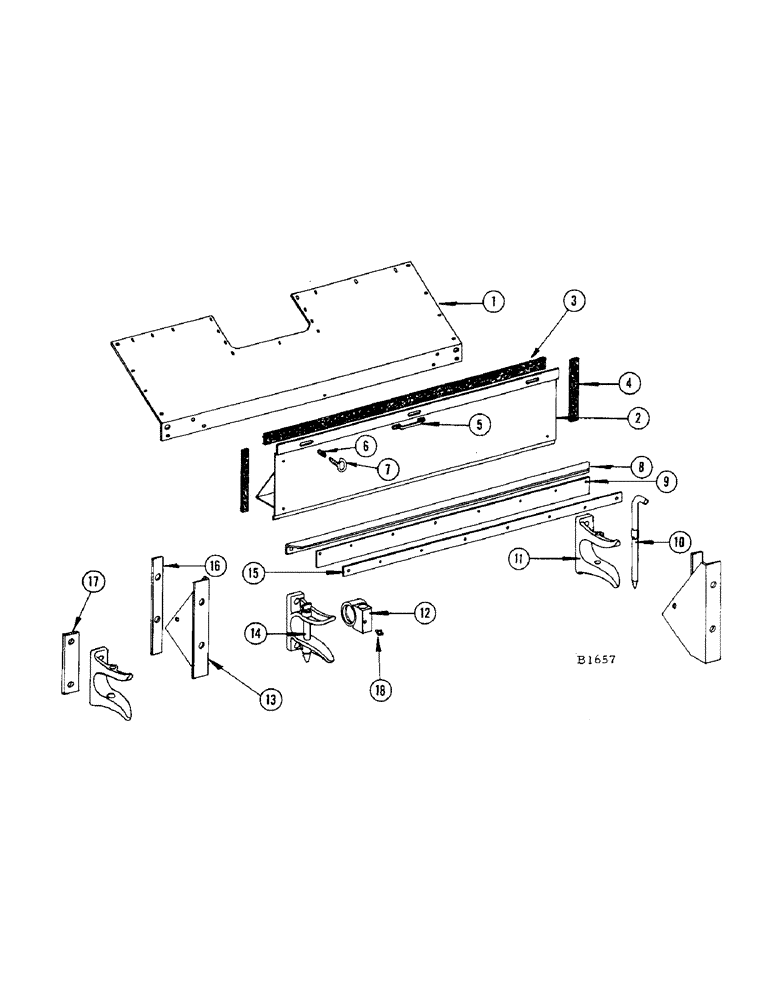

Запчасти Case IH 400 (034[1]) - FRONT ACCESS SECTION AND HEADER PIVOT BRACKETS (39) - FRAMES AND BALLASTING

1

F18479

DECK - front

1шт.

SCREW - N.C. rd. hd. mach. 5/16" x 1/2" (75-58) and nut (25-105) L.W. (92-5)

2шт.

FHBNF 3/8" x 1-1/4" (14-620) dbl. hex. nuts (25-116)

2шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116 L.W. (92-6)

3шт.

FHBNF 1/2" x 1" (14-816) nut (25-118) L.W. (92-8)

2шт.

2

F83090

DOOR - cylinder (Rub Bar Cylinder)

1шт.

RIVET - W.B. hd. 3/16" x 5/16" (49-35)

4шт.

F83315

DOOR - cylinder (Spike Tooth Cylinder)

1шт.

3

F19316

SEAL - top

1шт.

4

F19317

SEAL - side

2шт.

5

228-3

HANDLE - Stanley

1шт.

RIVET - W.B. hd. 3/16" x 3/8" (49-36)

2шт.

6

117EB

SPRING

- door latch

3шт.

7

F19960

LATCH

BOLT - latch

3шт.

NUT - N.C. 1/4" (25-104)

6шт.

8

F16211

ANGLE - feeder spout

1шт.

FHBNF 7/16" x 1" (14-716) nut (25-117) L.W. (92-7)

2шт.

9

F16213

SEAL

- feeder spout angle

1шт.

10

F17831

PIN - L.H. side

1шт.

11

F1105

PIVOT - header

3шт.

FHBNF 5/8" x 1-3/4" (14-1028) nut (25-1110) L.W. (92-10)

6шт.

12

F83093

BEARING

- header pivot

3шт.

13

F18748

PLATE - scuff

2шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

2шт.

14

F6266

PIN - R.H.

2шт.

15

F16214

STRIP - backing

1шт.

FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)

8шт.

16

F18745

SPACER

2шт.

FHBNF 5/8" x 1-3/4" (14-1028) nut (25-1110) and L.W. (92-10)

4шт.

17

F9858

SPACER - strap

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

3шт.
