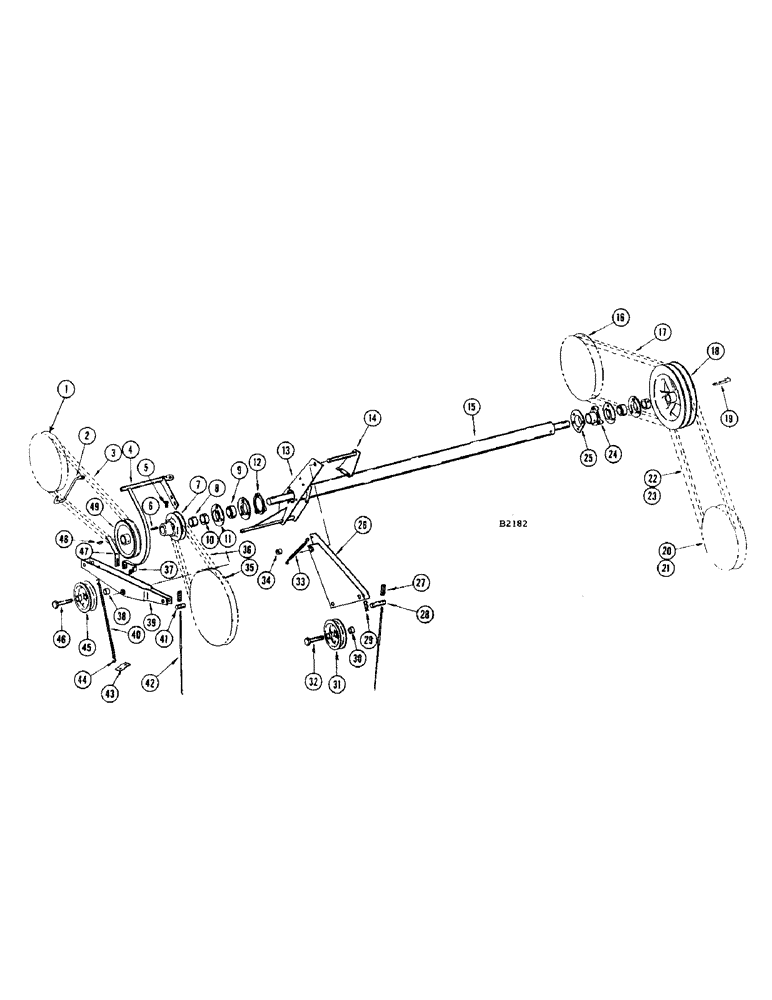

Запчасти Case IH 400 (106) - MAIN COMBINE DRIVE JACKSHAFT (14) - MAIN GEARBOX & DRIVE

1

F81380

SHEAVE - grain bin drive

1шт.

2

F20872

GUIDE - belt

1шт.

FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)

1шт.

3

F20722

SCREW

BELT - grain bin drive

1шт.

4

F83837

GUIDE - belt

1шт.

FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)

2шт.

FHBNF 3/8" x 1" (14-616) nut (26-116) L.W. (92-6)

1шт.

5

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - cup point

1шт.

NUT - 3/8" N.C. jam (25-146)

1шт.

6

F20955

KEY - 5/16" square

1шт.

7

F1683

SHEAVE - header drive

1шт.

8

F20956

SPACER

1шт.

9

T18852

BALL BEARING

BEARING - (Fafnir #1106KRRB)

2шт.

10

O4524B

COLLAR

1шт.

11

T17277

FLANGE

TTE

4шт.

FHBNC 3/8" x 1" (13-616) L.W. (92-6)

3шт.

BOLT - rd. hd. sq. nk. 3/8" x 1-1/2" (12-624) and nut (25-106) L.W. (92-6)

3шт.

12

F1675

SPACER

1шт.

13

F83834

TUBE jackshaft

1шт.

PIN - cotter 3/16" x 1-1/4" (132-93)

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) and nut (25-105) L.W. (92-5)

3шт.

14

F83838

SHAFT - header clutch

1шт.

PIN - cotter 3/16" x 1-1/4" (132-93)

1шт.

FHBNF 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

2шт.

15

F20891

JACKSHAFT - main drive

1шт.

16

F85522

SHEAVE - beater

1шт.

17

F20741

SCREW

BELT - beater drive

1шт.

18

F1676

SHEAVE - main drive

1шт.

FHBNF 1/4" x 2-3/4" (14-444) Gripco nut (131-364)

1шт.

19

O30388HT

KEY

1шт.

20

F85584

SHEAVE - (Before #8262501)

1шт.

21

F1540

SHEAVE - (#8262501 and after)

1шт.

22

F20712

SCREW

BELT - main drive (Before #8262501)

1шт.

23

F40621

BELT - main drive (#8262501 and after)

1шт.

24

F1674

HOLDER - bearing

1шт.

FHBNC 3/8" x 1" (13-616) nut (25-106)

2шт.

25

F17425

SCREW

COLLAR - support

1шт.

BOLT - rhd. sq. nk. 3/8" x 3/4" (11-612) nut (25-106) and L.W. (92-6)

3шт.

26

F83839

ARM - header drive idler

1шт.

27

V14857

HANDLE

SPRING - clutch

2шт.

28

F20730

SCREW

PIN - header idler

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

29

136-161

COTTER - hair pin

1шт.

30

V13384

SPACER

2шт.

31

F11626

BEARING

SHEAVE - tightener

1шт.

32

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- FHNF 5/8" x 2-3/4"

1шт.

LOCKWASHER - (92-10) nut (25-1110)

1шт.

33

146EB

SPRING - belt tightener

1шт.

FHBNF 1/4" x 1-1/4" (14-420) nut (25-114) L.W. (92-4) and wshr. (195-18)

1шт.

34

VB1410

SPACER - main drive jackshaft

1шт.

FHBNF 1/4" x 1-1/4" (14-420) nut (25-114) L.W. (92-4) and wshr. (195-18)

1шт.

35

F83685

SHEAVE - header, driven

1шт.

36

F20721

SCREW

BELT - header drive

1шт.

37

F20830

CLAMP - belt guide

1шт.

38

V13384

SPACER

2шт.

39

F83836

ARM - grain bin idler

1шт.

40

O2678N

SPRING

1шт.

41

F20726

SCREW

PIN - grain bin idler

1шт.

PIN - cotter 3/32" x 1-1/4" (132-30)

2шт.

42

F20732

SCREW

CABLE - clutch

2шт.

NUT - 5/16" N.F. (129-122) wshr. (192-521)

4шт.

43

F17918

BRACKET - locking (For spike tooth machines)

1шт.

BOLT - rhd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

1шт.

44

O5481HT

HOOK

2шт.

45

F6474

PULLEY

SHEAVE - tightener

1шт.

46

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.N. hex.

1шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10)

1шт.

47

F20831

GUIDE - belt

1шт.

BOLT - rd. hd. sq. nk. 1/4" x 3/4" (11-412) nut (25-104) and L.W. (92-4)

2шт.

48

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - ("B" Woodruff)

1шт.

49

F83863

SHEAVE - main drive

1шт.

PIN - cotter 1/4" x 3" (132-159)

1шт.
