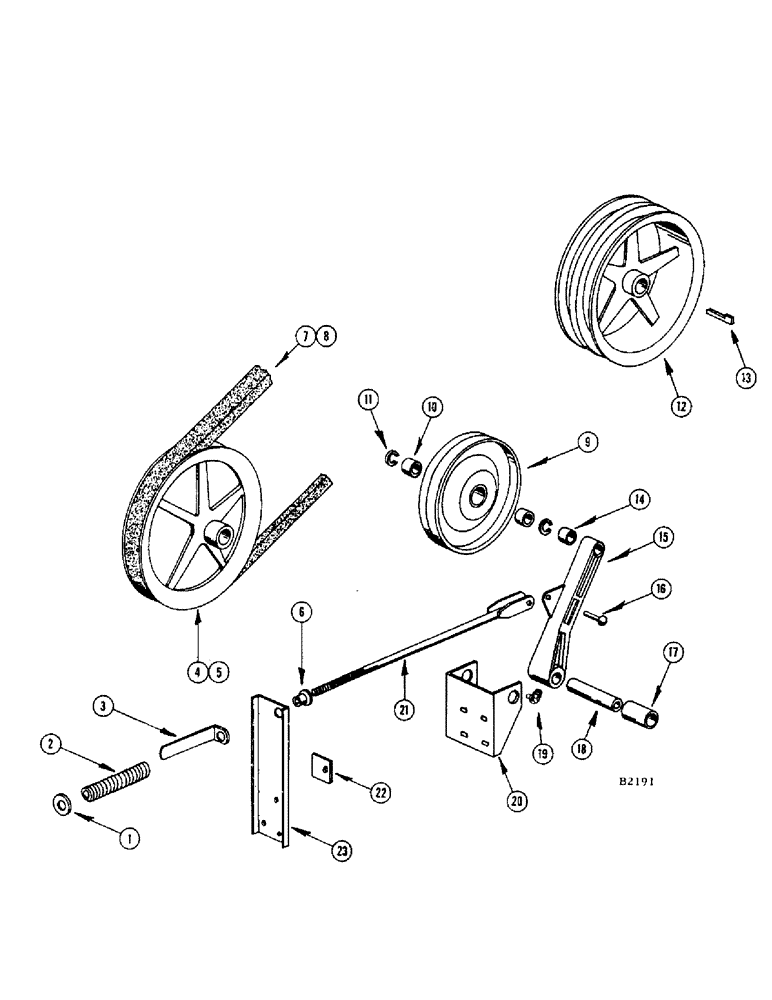

Запчасти Case IH 400 (104) - MAIN COMBINE DRIVE (14) - MAIN GEARBOX & DRIVE

1

O58BL

WASHER

2шт.

2

F17945

SPRING

1шт.

3

F17947

GAUGE

1шт.

4

F85584

SHEAVE - (Before #8262501)

1шт.

5

F1540

SHEAVE - (#8262501 and after)

1шт.

6

F19583

BUSHING

1шт.

7

F20712

SCREW

BELT - drive (Before #8262501)

1шт.

8

F40621

BELT - drive (#8262501 and after)

1шт.

9

F80920

SHEAVE - idler

1шт.

10

F16246

BEARING, BALL

BEARING (Fafnir #203KRR2)

2шт.

11

O3338BF

RING - snap

2шт.

12

F1676

SHEAVE - main drive

1шт.

13

O30388HT

KEY

- gib

1шт.

14

F17354

SPACER - idler

1шт.

FHBNC 5/8" x 3-3/4" (13-1060) jam nut (25-1410)

1шт.

15

F1477

ARM - belt tightener

1шт.

FHBNF 1/2" x 5-1/2" (14-888) L.W. (92-8) nut (129-125)

1шт.

16

O1235HT

PIN - clevis

1шт.

PIN - cotter 3/32" x 7/8" (132-27)

1шт.

17

F17518

SPACER

1шт.

FHBNF 1/2" x 5-1/2" (14-888) nut (25-118) L.W. (92-8)

1шт.

18

F20826

SPACER - pivot

1шт.

19

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease (1/4" - 28 x 90 degrees)

1шт.

20

F20710

SCREW

BRACKET

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

4шт.

21

F83724

ROD - tightener

1шт.

FHBNF 5/16" (25-115)

2шт.

22

F20707

SCREW

SPACER - tightener post

1шт.

23

F20708

SCREW

POST - tightener

1шт.

FHBNF 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

1шт.

FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)

2шт.
