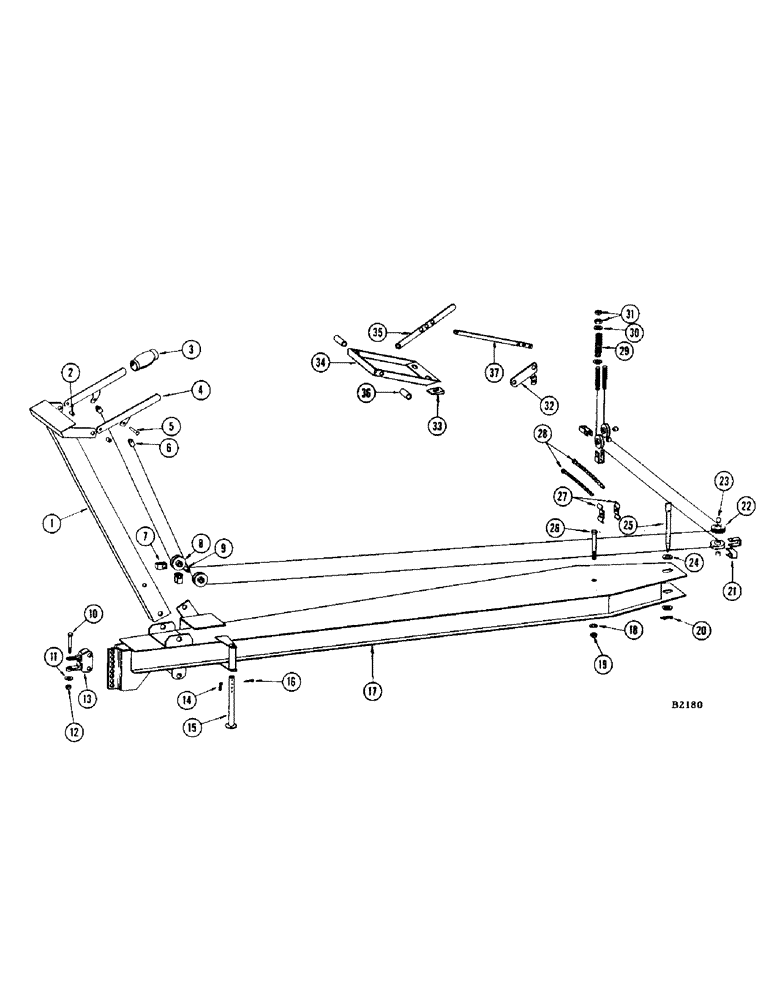

Запчасти Case IH 400 (098) - DRAWBAR ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

F83754

STAND

1шт.

FHBNF 1/2" x 3-1/4" (114-417) nut (129-125) and L.W. (192-23)

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

2

F20734

SCREW

SPACER - control lever

2шт.

3

O4451N

GRIP - lever

2шт.

4

F83757

LEVER - control

2шт.

5

O415CS

PIN - rivet

2шт.

PIN - cotter 3/32" x 3/4" (132-26)

2шт.

6

F20732

SCREW

CABLE

2шт.

7

F21029

GUIDE - cable

4шт.

8

F1687

SHEAVE - cable

2шт.

FHBNF 1/2" x 4-1/2" (114-420) nut (129-125) and L.W. (192-23)

1шт.

9

F21028

BUSHING

2шт.

10

O4424HT

BOLT - drawbar

1шт.

PIN - cotter 3/16" x 1-1/4" (132-93)

1шт.

11

195-545

WASHER,3/4", SAE

FLATWASHER (3/4")

2шт.

12

129-287

SLOTTED NUT,3/4"-10, G5

1шт.

13

F2563

CLEVIS

- drawbar

1шт.

FHBNF 1/2" x 1-3/4" (114-105) nut (129-125) and L.W. (192-23)

2шт.

14

O1095CU

X

PIN - cotter

1шт.

15

F83744

STAND - drawbar

1шт.

FHBNC 5/16" x 2" (114-122) dbl. nut (129-102)

1шт.

16

O1428CH

PIN

1шт.

17

F83738

DRAWBAR

1шт.

18

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

19

129-287

SLOTTED NUT,3/4"-10, G5

1шт.

20

VC1419

X

COTTER - hair pin

1шт.

21

F20733

SCREW

GUIDE - cable

4шт.

22

F1686

PULLEY -

4шт.

FHBNF 5/16" x 1-1/2" (114-107) nut (129-122) and L.W. (192-20)

3шт.

23

F20734

SCREW

SPACER - pulley

4шт.

FHBNF 5/16" x 1-1/2" (14-524) nut (25-115) L.W. (92-5) and wshr. (195-21)

2шт.

24

195-545

WASHER,3/4", SAE

FLATWASHER - (3/4")

2шт.

25

F6266

BOLT - drawbar

1шт.

26

3688HTA

BOLT - drawbar

1шт.

27

N3259

CLAMP - hose

10шт.

FHBNF 3/8" x 3-1/2" (114-226) nut (129-123) and L.W. (192-21)

1шт.

WASHER - 3/4" (195-545)

4шт.

FHBNC 3/8" x 1-1/2" (113-209) L.W. (192-21)

2шт.

FHBNF 5/16" x 5-1/2" (114-111) nut (129-122) and L.W. (192-20) wshr. (195-521)

2шт.

28

F20777

SCREW

HOSE - hydraulic

2шт.

29

V14857

HANDLE

SPRING

2шт.

30

195-521

WASHER,5/16", SAE

4шт.

31

129-122

NUT,5/16"-24, G5

4шт.

32

F85524

LINK - rocker, clutch control extension attachment

2шт.

FHBNF 5/16" x 1-1/4" (114-100) Gripco nut (131-149), clutch control extension attachment

2шт.

33

195-902

WASHER

- beveled, clutch control extension attachment

2шт.

34

F85523

FRAME - extension, clutch control attachment

1шт.

FHBNF 5/16" x 1-1/4" (114-100) Gripco nut (114-100), clutch control extension attachment

2шт.

35

F40608

LEVER - control, clutch extension attachment

2шт.

FHBNF 5/16" x 1-1/2" (114-107) nut (129-122) L.W. (192-20) and fl. wshr. (195-103), clutch control extension attachment

2шт.

36

F20734

SCREW

BUSHING, clutch control extension attachment

2шт.

37

F40611

LINK - extension, clutch control attachment

2шт.

FHBNF 5/16" x 1" (114-104) Gripco nut (131-149), clutch control extension attachment

2шт.
