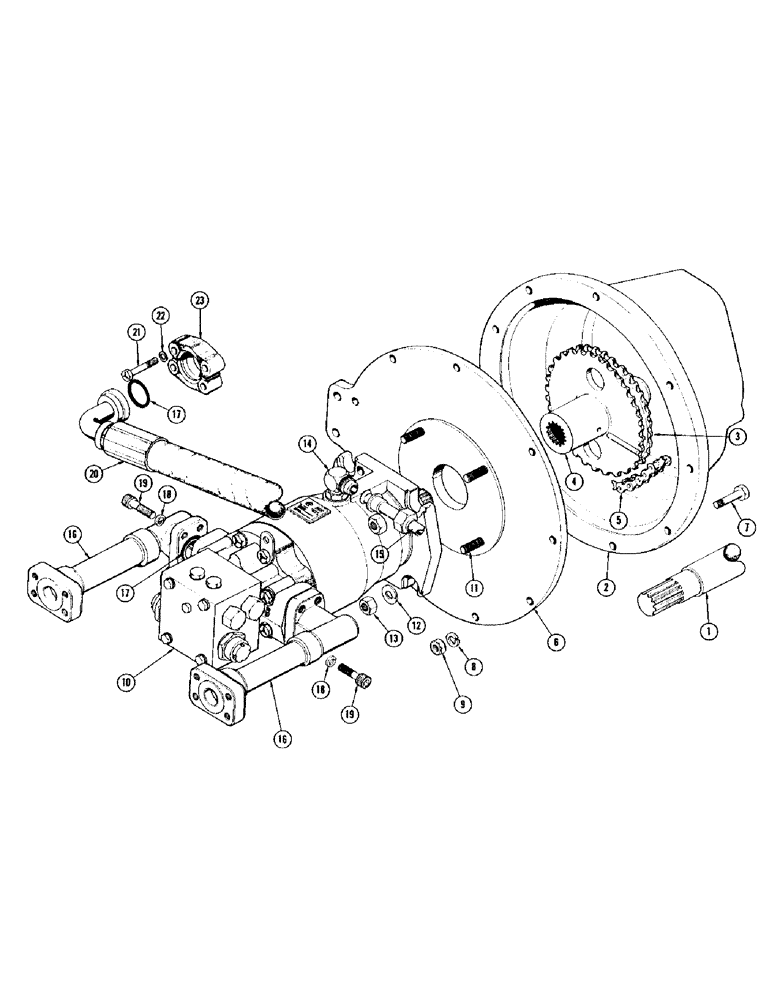

Запчасти Case IH 960 (10) - HYDROSTATIC MOTOR TO TRANSMISSION (29) - HYDROSTATIC DRIVE

1

F3152

SHAFT - input, transmission

1шт.

2

F2196

HOUSING

1шт.

3

F87210

COUPLER - assembly

1шт.

4

F94289

COUPLER - assembly

1шт.

5

F87211

CHAIN - roller, engine coupling

1шт.

6

F2193

PLATE - adapter

1шт.

7

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" hex. N.F.

9шт.

8

92-6

LOCK WASHER,3/8"

9шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

9шт.

10

F94287

MOTOR HOUSING

MOTOR - hydrostatic

1шт.

11

A50241

STUD

4шт.

195-33

WASHER,1/2"

- flat SAE std. 1/2"

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- 1/2" hex. N.C.

4шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

HYDRAULIC FITTING

1шт.

15

F94325

TUBE - hyd., Serial Range: pump-motor

1шт.

16

F94331

LINE - motor loop ext.

2шт.

17

F13297

HARDWARE

"O" RING

4шт.

18

F22904

X

LOCKWASHER

8шт.

19

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

CAP SCREW - socket head

8шт.

20

F89330

REVERSE LOOP LINE

1шт.

F94329

FORWARD LOOP LINE (Not shown)

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" hex. N.C.

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

F22903

CLAMP - split flange

8шт.
