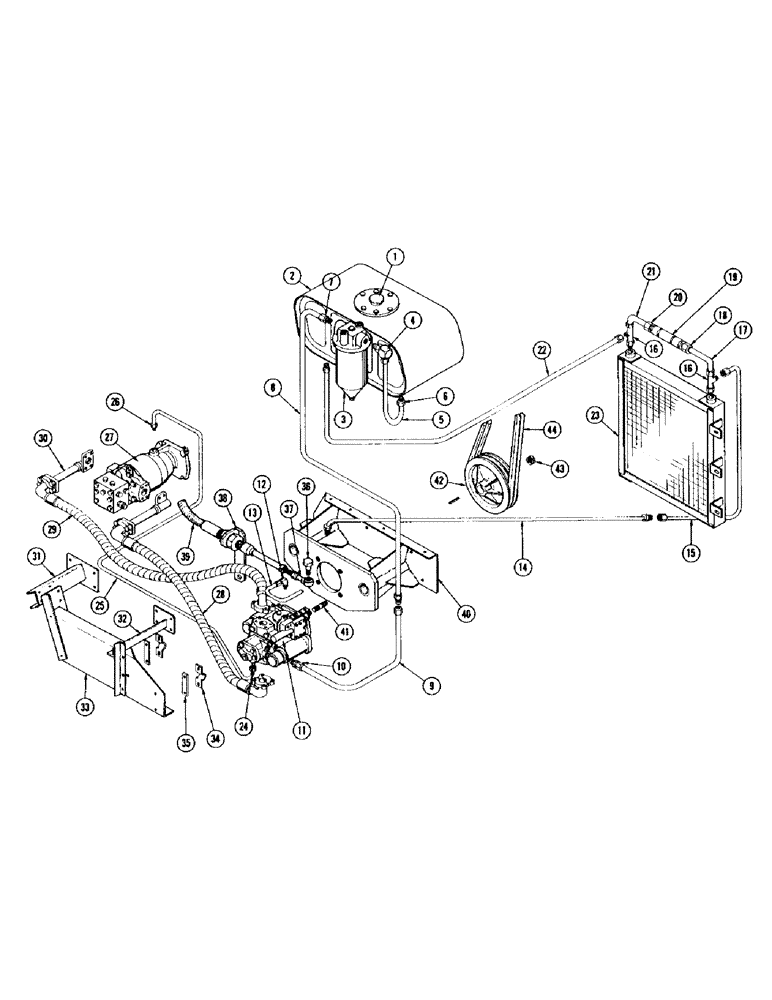

Запчасти Case IH 960 (08) - HYDROSTATIC DRIVE SYSTEM, CONTINUED (29) - HYDROSTATIC DRIVE

31

F94292

SUPPORT - assy. front

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

32

F94293

SUPPORT - assy. rear

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

92-5

LOCK WASHER,5/16"

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

33

F94291

MUD GUARD - assembly

1шт.

34

F22903

CLAMP - hose

2шт.

35

F23027

SPACER

2шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

36

F22857

STUD - pivot

1шт.

37

A35134

BEARING

EYE ROD END

1шт.

38

F94294

EYE - cable assembly

1шт.

39

F88137

CABLE - plastic lined

1шт.

40

F94334

SUPPORT - assembly, pump

1шт.

14-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

- 7/16" x 1" N.F. hex.

4шт.

92-7

LOCK WASHER,7/16"

4шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

92-5

LOCK WASHER,5/16"

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

5шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

5шт.

41

A50249

STUD

S

4шт.

A26468

WASHER - 9/16" flat, special

4шт.

280248

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

25-109

NUT,9/16"-12, G5

- 9/16" N.C. hex.

4шт.

42

F2194

SHEAVE

1шт.

43

L30731

SLOTTED NUT

- 1" hex.

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

44

F22872

BELT

Primary Drive

1шт.
