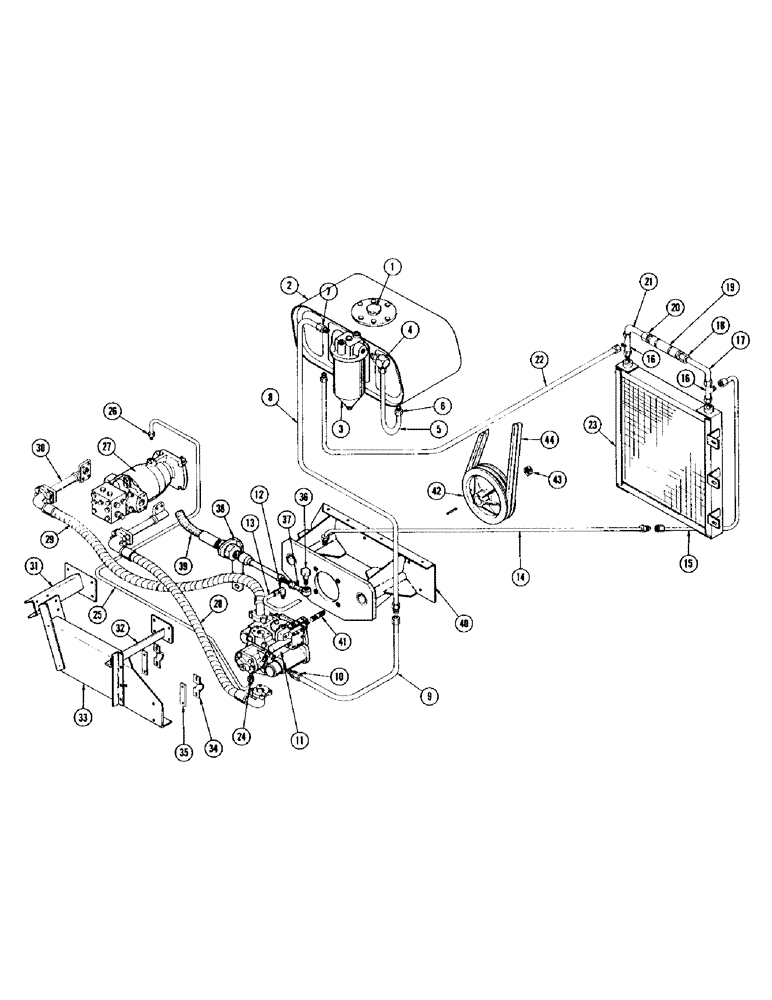

Запчасти Case IH 960 (06) - HYDROSTATIC DRIVE SYSTEM (29) - HYDROSTATIC DRIVE

1

F5922

CAP

- reservoir

1шт.

2

F94317

OIL RESERVOIR

1шт.

F23264

STRAINER - filler neck

1шт.

86512512

PLUG,7/8" - 14 ORB

Hydraulic Hex Hd, 7/8"-14 ORB

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight (F94317 to F94461)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees (F94317 to F94321)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

F94299

OIL FILTER

1шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable (F94299 to F94461) 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

5

F94461

TUBE - hyd. assy., Serial Range: (F94299-F94317)

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight (F94299 to F94459)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight (F94459 to F94460)

1шт.

8

F94459

TUBE - hyd. assy., Serial Range: (F94299-F94460)

1шт.

9

F94460

TUBE - hyd. ass., Serial Range: (F94333-F94459)

1шт.

10

218-5087

CONNECTOR - tube, straight, Serial Range: (F94333-F94460)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING

1шт.

11

F94333

PUMP - hydrostatic

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjusting, 90 degrees (F94333 to F94324)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

F94324

TUBE - assy. (Hyd.), Serial Range: (F94333-F94320)

1шт.

14

F94320

TUBE - hyd. assy., Serial Range: (F94324-F94319)

1шт.

15

F94319

TUBE - hyd. assy., Serial Range: (F94298-F94320)

1шт.

16

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- anchor 10 BCSTC

2шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING

2шт.

17

F94322

TUBE - hyd. ass'y. (F94298 to F94318) 0.625" DIA x 5.40, 3.25" L

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - tube, straight (F94323 to F94318)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

F94318

VALVE - bruning, Serial Range: (F94323-F94322)

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - tube, straight (F94318 to F94322)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

F94322

TUBE - hyd. assy. (F94318 to F94298) 0.625" DIA x 5.40, 3.25" L

1шт.

22

F94321

TUBE - hyd. assy., Serial Range: (F94298-F94317)

1шт.

23

F94298

OIL COOLER

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - tube, straight (F94333 to F94325)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

F94325

TUBE - hyd. assy.

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable

1шт.

27

F94287

MOTOR HOUSING

MOTOR - hydrostatic

1шт.

28

F94329

LINE - forward loop

1шт.

F22903

CLAMP - split flange

4шт.

F13297

HARDWARE

"O" RING

2шт.

29

F89330

LINE - reverse loop

1шт.

F22903

CLAMP - split flange

4шт.

F13297

HARDWARE

"O" RING

2шт.

30

F94331

LINE - motor loop ext.

2шт.

F13297

HARDWARE

"O" RING

2шт.
