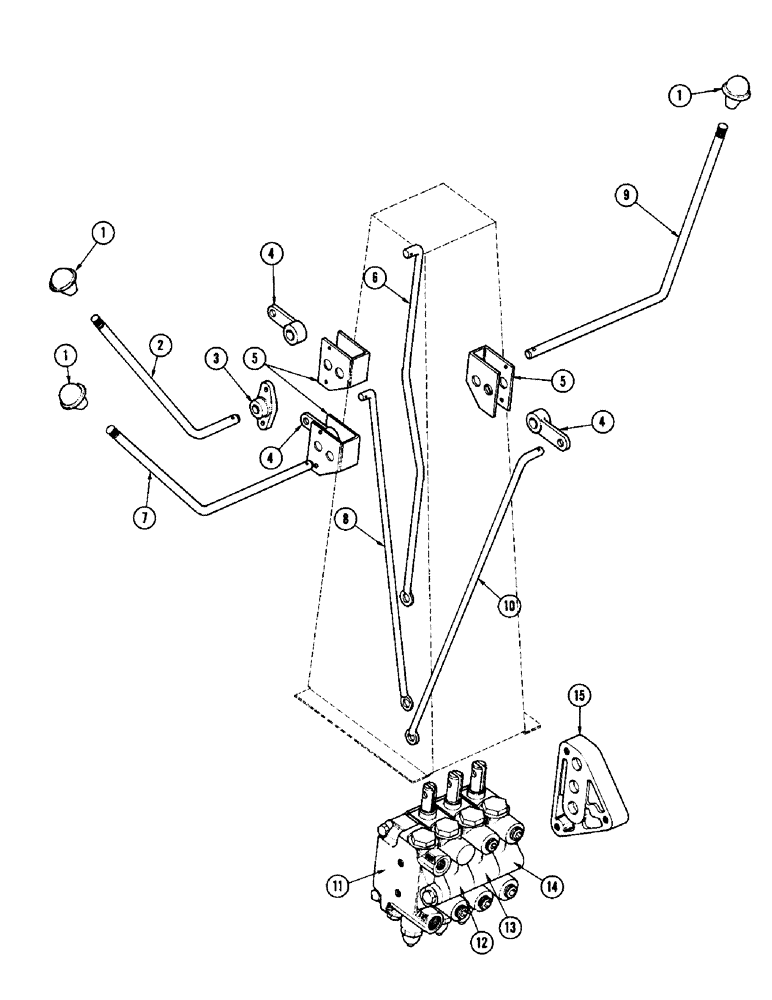

Запчасти Case IH 960 (04) - HYDRAULIC CONTROL LINKAGE (29) - HYDROSTATIC DRIVE

1

F5301

KNOB

3шт.

2

F21583

CARRIAGE BOLT

LEVER - control (Reel lift)

1шт.

3

F1680

BEARING - lever

1шт.

4

F91843

ARM - control lever

3шт.

135-401

PIN - drive lock, 3/16" x 1-1/8"

3шт.

5

F22974

BOLT

BRACKET - control lever

3шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

4шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

F53510

ROD - valve control (Reel) When hyd. folding unloading auger is used

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

F23070

ROD - control valve (Reel) When manual folding unloading auger is used

1шт.

7

F20791

LEVER - control (Hyd. folding unloading auger)

1шт.

8

F20793

ROD - valve control (Hyd. folding unloading auger)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

9

F23066

LEVER - control (Header)

1шт.

10

F20793

ROD - valve control (Header)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

F1290

BODY - port plate (See page 275B, catalog #C957)

1шт.

F94430

VALVE - control (Header & hyd. folding unloading auger)

1шт.

12

F77045

BODY - with spool (See page 275B, catalog #C957)

1шт.

13

F94479

BODY - with spool (See page 275D, catalog #C957) optional

1шт.

F87855

VALVE - control (Header w/manual folding unloading auger)

1шт.

14

F77045

VALVE - reel control (See page 275B, cat. #C957) (Extra)

1шт.

15

F13237

PLATE - end

1шт.

K4475

SPACER - bushing (Used with manual folding unloading auger)

1шт.

F22964

BOLT

SPACER (Without hyd. reel lift)

1шт.
