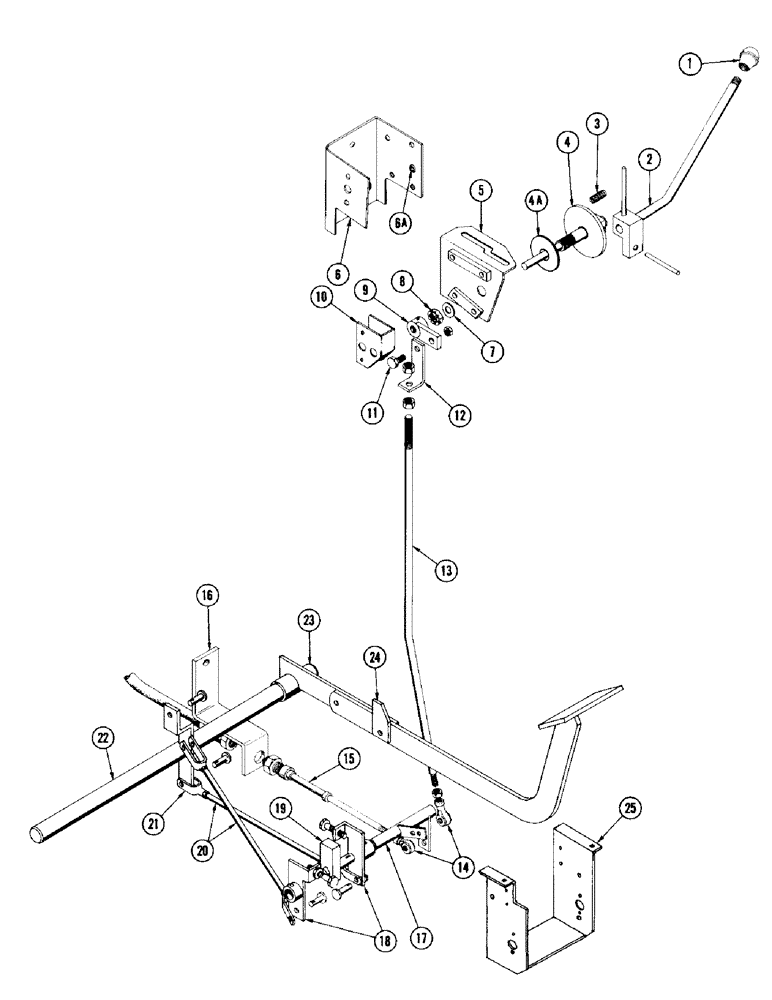

Запчасти Case IH 960 (02) - FOOT CONTROL AND HAND CONTROL LINKAGE (29) - HYDROSTATIC DRIVE

1

F5301

KNOB - control lever

1шт.

2

F94495

LEVER - control welded assembly

1шт.

3

117EB

SPRING

1шт.

4

F94358

SPUD CONTROL ASSEMBLY (Before #8371209)

1шт.

4

F89327

SPUD CONTROL ASSEMBLY (#8371209 and after)

1шт.

4a

F22942

BOLT

DISK - friction

1шт.

5

F94497

GUIDE CONTROL ASSEMBLY

1шт.

6

F94496

SUPPORT BRACKET

1шт.

6a

F94356

BEARING - assy

1шт.

7

F22943

DISC - friction spring, hand control

1шт.

8

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

195-33

WASHER,1/2"

1шт.

9

F94313

CRANK - control assembly (Before #8371209)

1шт.

9

F89328

CRANK - control assembly (#8371209 and after)

1шт.

135-328

PIN - 1/8 x 1 (Type 3 groove)

1шт.

10

F22974

BOLT

BRACKET

1шт.

11

T18655

BOLT - shoulder

1шт.

12

F22895

ADJUSTMENT LINK

1шт.

13

F23068

ROD - control

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

14

A35134

BEARING

EYE ROD END

2шт.

15

F88137

CABLE - plastic lined

1шт.

16

F22876

BRACKET - cable

1шт.

F22385

SPACER

2шт.

F22384

BEARING - pivot pedal

3шт.

17

F94357

SHAFT - int. control assembly

1шт.

F94315

BEARING - flange control

2шт.

18

F94308

ARM - stop assembly

2шт.

19

F22881

TAB - pivot

1шт.

20

F22883

ROD - control

2шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

14-518

BOLT - 5/16" x 1-1/8" N.F. hex. Hex, 5/16"-24 x 1 1/8", G5, Full Thd

2шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F.

2шт.

22

F94307

SHAFT - pivot assembly

1шт.

23

F82424

PEDAL - foot control

1шт.

24

F22477

PEDAL - stop

1шт.

25

F22897

BRACKET

1шт.
