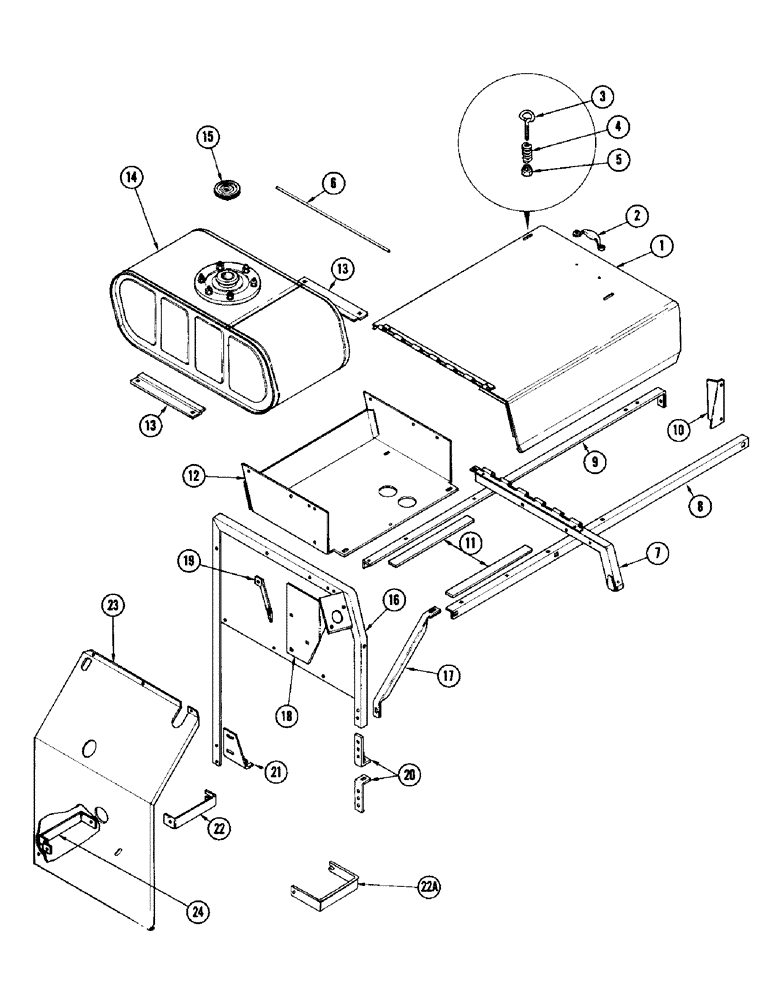

Запчасти Case IH 960 (20) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F84752

HOOD - hinged half

1шт.

2

228-3

HANDLE

1шт.

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- 3/16" x 3/8" W.B.

2шт.

3

F19960

LATCH

2шт.

4

117EB

SPRING

2шт.

5

131-506

NUT,1/4-20

NUT - 1/4" N.C. Flexloc

2шт.

6

F20293

ROD - hinge

1шт.

7

F94301

RIB - support assembly

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. N.C.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

3шт.

8

F22867

PLATE

ANGLE - rear support

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk. N.C.

1шт.

195-18

WASHER,1/4"

- flat SAE std. 1/4"

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

12-510

BOLT - 5/16" x 5/8" rhd. sq. sh. N.C.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

9

F22866

ANGLE - front support

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. N.C.

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

12-510

BOLT - 5/16" x 5/8" rhd. sq. nk. N.C.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk. N.C.

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

10

F22031

FILLER

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

11

F13302

PAD

2шт.

12

F22899

BRACKET - reservoir

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

5шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

5шт.
