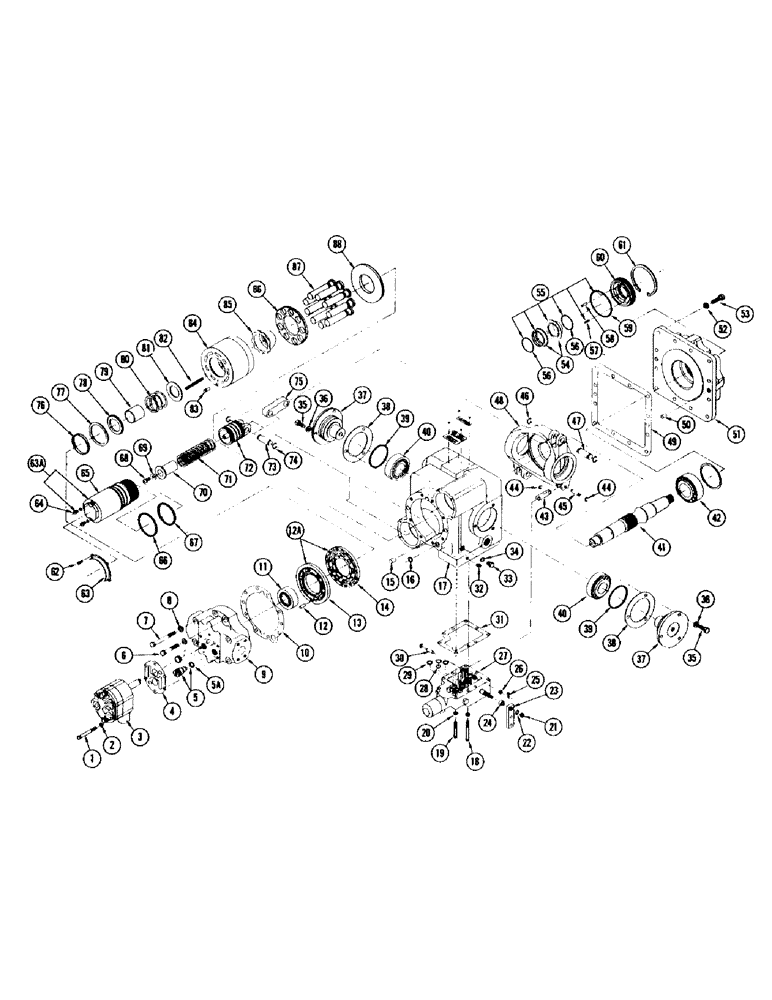

Запчасти Case IH 960 (14) - 22, 2053 PUMP, HYDROSTATIC (29) - HYDROSTATIC DRIVE

1

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

2

A22354

WASHER

4шт.

3

F89255

PUMP - change

1шт.

4

F23109

GASKET

- pump

1шт.

5

F89256

VALVE, CHECK

VALVE - check

2шт.

5a

F23111

O-RING

O RING - valve

2шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW - hex. hd.

5шт.

8

F23114

WASHER

- end cap

26шт.

9

F23115

SCREW

CAP - end

1шт.

F23116

SCREW

SHIM - end cap

1шт.

10

F23117

GASKET,0.25mm Thk

- end cap

1шт.

11

F23118

SCREW

BEARING - rear

1шт.

12

NLS

NO LONGER SERVICED

PIN - plate and housing

1шт.

12a

F89272

LARGE PLATE

PLATE AND BEARING ASS'Y

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

15

F23124

AXLE PIN

PIN - housing

2шт.

16

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O RING

4шт.

17

F23126

HOUSING

- pump

1шт.

18

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Valve Hex, 1/4"-20 x 2 1/4", G5

7шт.

19

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

Valve Hex, 1/4"-20 x 1 3/4", G5

2шт.

20

A22354

WASHER

2шт.

21

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam

1шт.

22

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

23

F23131

HANDLE

- valve

1шт.

24

F23132

SPACER

- handle

1шт.

25

132-4

PIN - handle

1шт.

26

A22354

WASHER

1шт.

27

F89271

VALVE - control

1шт.

28

F23134

PLUG

ORIFICE - valve

1шт.

29

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING

3шт.

30

F23135

PIN

- valve

1шт.

31

F23136

GASKET

- valve

1шт.

32

F23137

PLUG

1шт.

33

9672438

PLUG,7/16" - 20 ORB

1шт.

34

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING

1шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Trunnion Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

36

F23114

WASHER

6шт.

37

F23141

FLANGE

TRUNNION - pump

2шт.

38

F23142

SHIM

- trunnion

1шт.

39

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

RING - trunnion

2шт.

40

F23144

SCREW

BEARING - trunnion

2шт.

41

F23145

SCREW

SHAFT - drive

1шт.

42

F23146

SCREW

BEARING - shaft front

2шт.

43

F23147

LINK

- connector

1шт.

44

F23148

SCREW

RING - retainer

2шт.
