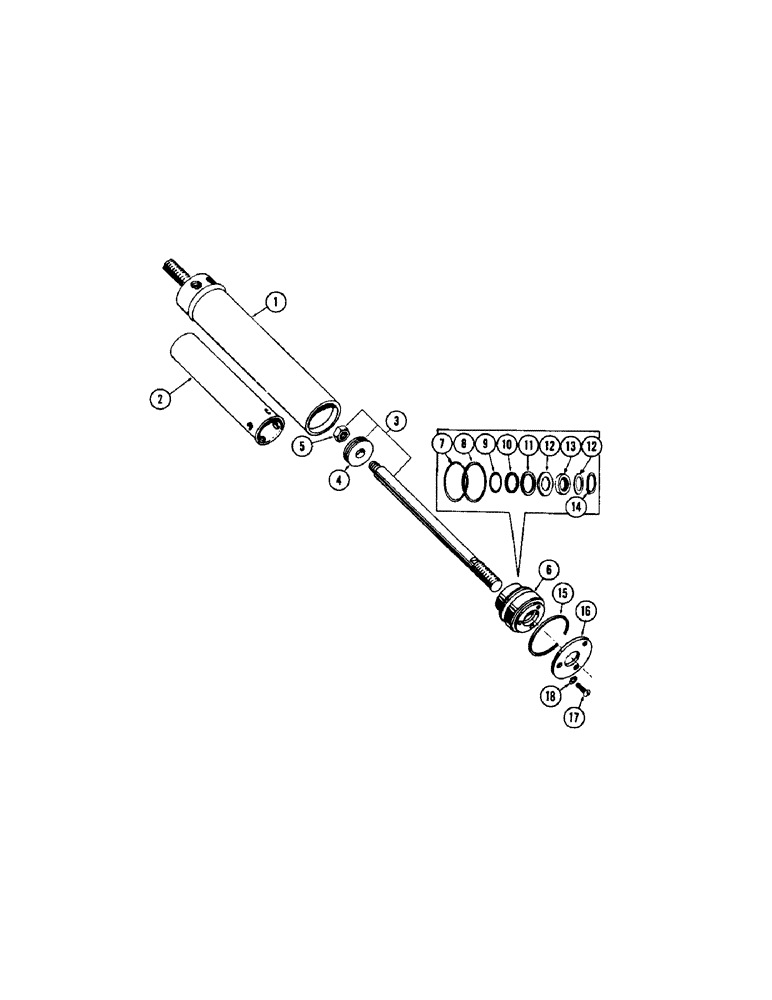

Запчасти Case IH 960 (338) - PARTS FOR F87848 CYLINDER (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

CYLINDER AND HEAD ASSEMBLY

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - piston, inner

1шт.

3

F91833

PISTON

AND ROD ASSEMBLY

1шт.

4

A56226

PISTON ASSY.

PISTON AND RING ASSEMBLY

1шт.

5

131-576

NUT - 3/8" N.F. hex. lock

1шт.

6

A24973

GLAND

ASSEMBLY - repair kit

1шт.

NSS

NOT SOLD SEPARAT

GLAND - (Order A24973)

1шт.

A36396

SEAL KIT

SEAL KIT - rod end

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING

1шт.

8

A35884

WASHER

RING - back-up

1шт.

9

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - inner

1шт.

10

A35879

RING

- back-up, inner

1шт.

11

F9886

WASHER

- retaining

1шт.

12

F9887

WASHER

- retaining, oil seal

2шт.

13

A11061

SEAL

OIL SEAL - gland

1шт.

14

A35882

X

SNAP RING - oil seal retaining

1шт.

15

A35885

RING

SNAP RING - gland retaining

1шт.

16

A35887

PLATE ASSY.

PLATE - end

1шт.

17

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" pan hd.

3шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.
