Запчасти Case IH 960 (336) - F82953 CYLINDER (35) - HYDRAULIC SYSTEMS

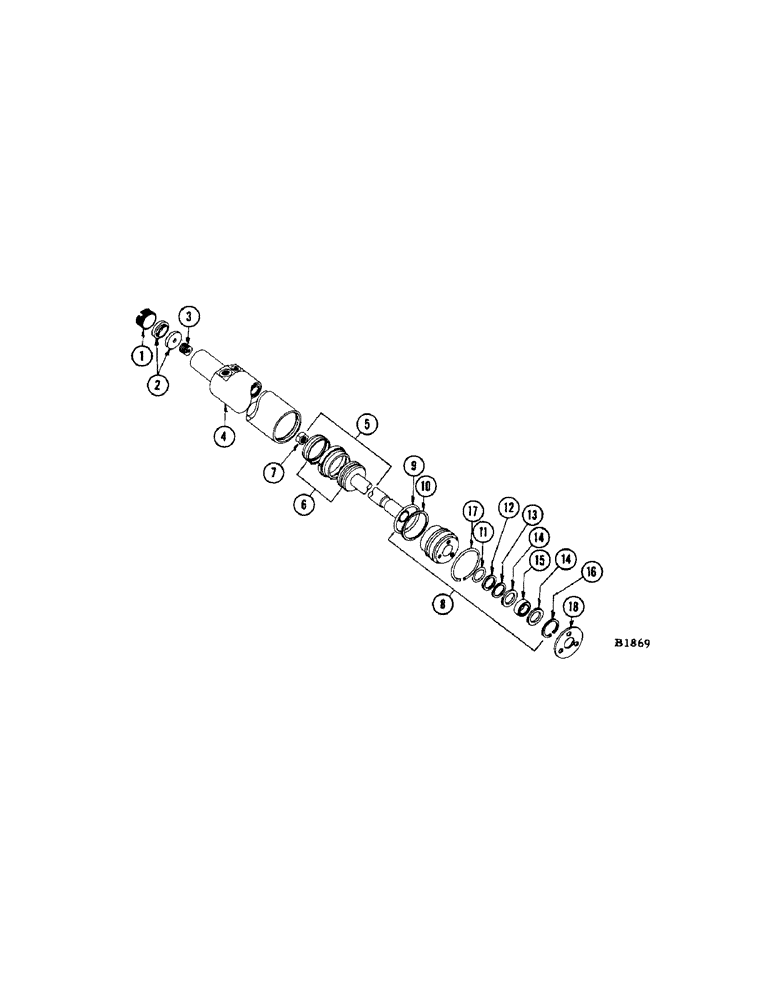

Схема запчастей Case IH 960 - (336) - F82953 CYLINDER (35) - HYDRAULIC SYSTEMS
16
14
14
6
6
9
12
2
3
15
18
1
7
17
11
4
13
8
10

Артикул

Название

Примечание

Количество

1

F19617

PLUG - adjusting

1шт.

2

F19616

SEAT - ball

2шт.

3

F19615

SPRING

- ball seat

1шт.

4

NSS

NOT SOLD SEPARAT

CYLINDER AND HEAD ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

TUBE - piston, cylinder inner

1шт.

5

F91831

PISTON AND ROD ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

6

A56226

PISTON ASSY.

PISTON AND RING ASSEMBLY

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

8

F79038

CYLINDER BEARING ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

9

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING

1шт.

10

A35884

WASHER

RING - back up

1шт.

11

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - inner

1шт.

12

A35879

RING

- back up, inner

1шт.

13

F9886

WASHER

RING - retaining

1шт.

14

F9887

WASHER

RING - retaining, oil seal

2шт.

15

A11061

SEAL

OIL SEAL

1шт.

16

A35882

X

SNAP RING - seal

1шт.

17

A35885

RING

SNAP RING -, Serial Range: bearing-cylinder

1шт.

18

A35887

PLATE ASSY.

PLATE - end, cylinder

1шт.

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" rhd. slotted

3шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

Выбрано товаров: 26
