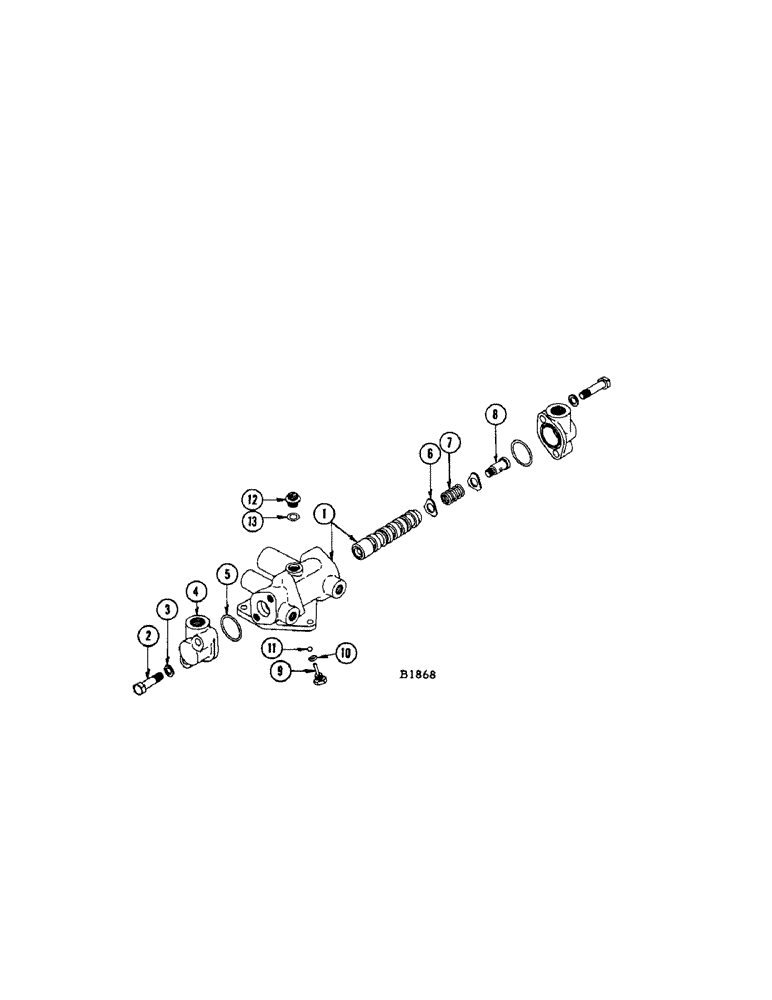

Запчасти Case IH 960 (336[2]) - F82739 VALVE (35) - HYDRAULIC SYSTEMS

1

F82739

VALVE

- power steering, with spool

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

For Ref 4 cap Hex, 3/8"-16 x 2", G5

4шт.

3

F19626

WASHER - for ref. 2 bolts

4шт.

4

F19624

CAP

- end

2шт.

5

F21003

O-RING,1.237" ID x 1.443" OD

SEAL - end cap

2шт.

6

F19619

WASHER

- centering

2шт.

7

F19622

VALVE SPRING

SPRING - valve centering

1шт.

8

F19623

SCREW,3/8" - 24 x 15/16"

- spring centering

1шт.

9

F82943

VALVE

PLUG

1шт.

10

F19630

O-RING

"O" RING

1шт.

11

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

12

F83122

PLUG

SCREW - adjusting

1шт.

13

F19628

O-RING

"O" RING

1шт.
