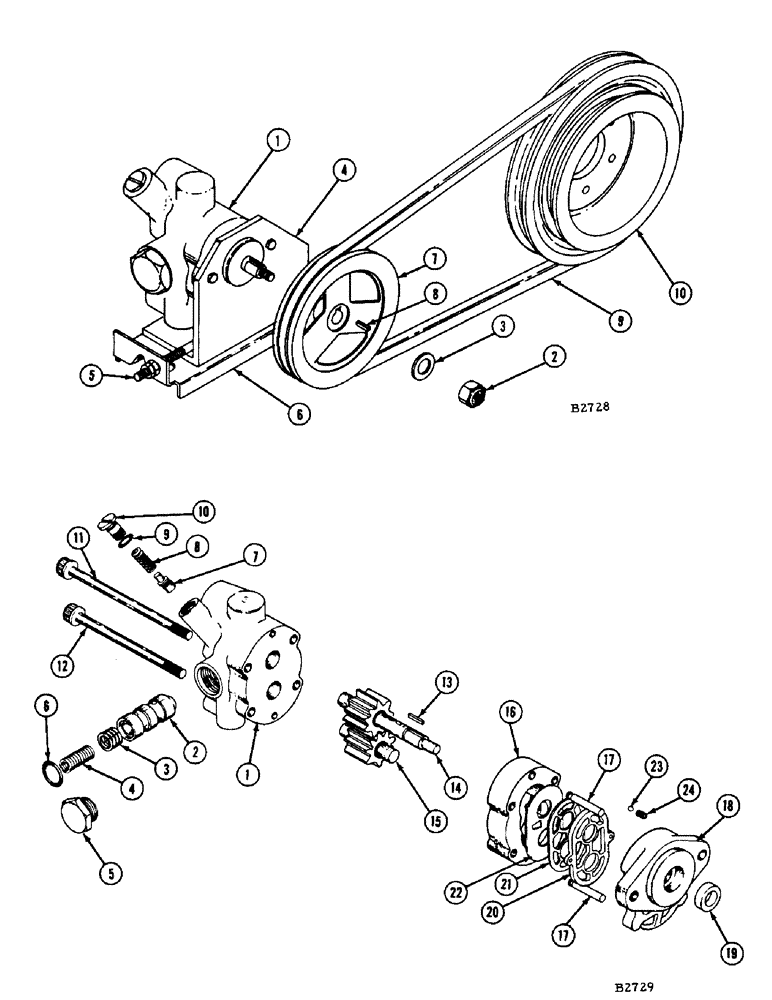

Запчасти Case IH 960 (277A) - HYDRAULIC PUMP DRIVE NO 8334601 & AFTER (35) - HYDRAULIC SYSTEMS

1

F91969

PUMP - hydraulic (Exh. then use F89253)

1шт.

F89253

PUMP - hydraulic (Replaces F91969 when exh.)

1шт.

2

131-706

LOCK NUT

NUT - pump shaft (3/8" N.F. huglock)

1шт.

3

F60727

WASHER

1шт.

4

F22563

PLATE - support

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex., nut (25-116) L.W. (92-6)

2шт.

5

F18676

BOLT - adjusting

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

6

F22562

BRACKET - adjusting

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" rhd. sq. nk., nut and lockwasher

1шт.

7

F1719

SHEAVE - pump drive, driven (For F91969 pump)

1шт.

F1760

SHEAVE - pump drive, driven (For F89253 pump)

1шт.

8

F22590

KEY

- for F1719 sheave

1шт.

F23213

KEY

- for F1760 sheave

1шт.

9

F22503

BELT

- hydraulic pump drive (#8334601 thru #8358000)

1шт.

F22948

BOLT

BELT - hydraulic pump drive (#8358001 and after)

1шт.

10

F1721

SHEAVE - double (#8334601 thru #8358000)

1шт.

F1643

SHEAVE - double (#8358001 and after) See ref. 5 page 276

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

195-33

WASHER,1/2"

- (Between F60727 and F1719)

1шт.

F94058

KIT - repair, back-up plate

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - flow divider

1шт.

3

F22587

SPRING - sleeve

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

5

F22586

PLUG

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING

1шт.

7

FH732180

VALVE POPPET

POPPET

1шт.

8

F12862

SPRING

1шт.

9

F12267

WASHER

SHIM

1шт.

10

F22585

PLUG - slotted

1шт.

11

166-37

SCREW - cap, 5/16" x 3-3/4"

1шт.

12

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

SCREW - cap, 5/16" x 3-1/4"

3шт.

13

F22590

KEY

- used with F1719 sheave for F91969 pump

1шт.

F23213

KEY

- used with F1760 sheave for F89253 pump

1шт.

14

F94059

GEAR - drive (Includes shaft) For F91969 pump

1шт.

F89266

GEAR - for F89253 pump

1шт.

15

FHO40683

GEAR

- idler

1шт.

16

F1724

BODY

- pump

1шт.

17

F22589

PIN

- dowel (1-1/2")

2шт.

18

FHO40642

PLATE

- front

1шт.

F94060

KIT

- repair, seal

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

20

FHO40659

SEAL

- diaphragm

1шт.

21

FHO40618

OIL SEAL

GASKET - back-up

1шт.

22

FHO40600

BODY

DIAPHRAGM

1шт.

23

211-6

BALL,7/32" Dia

steel 7/32" Dia

2шт.

24

F9883

SPRING

- steel ball

2шт.
