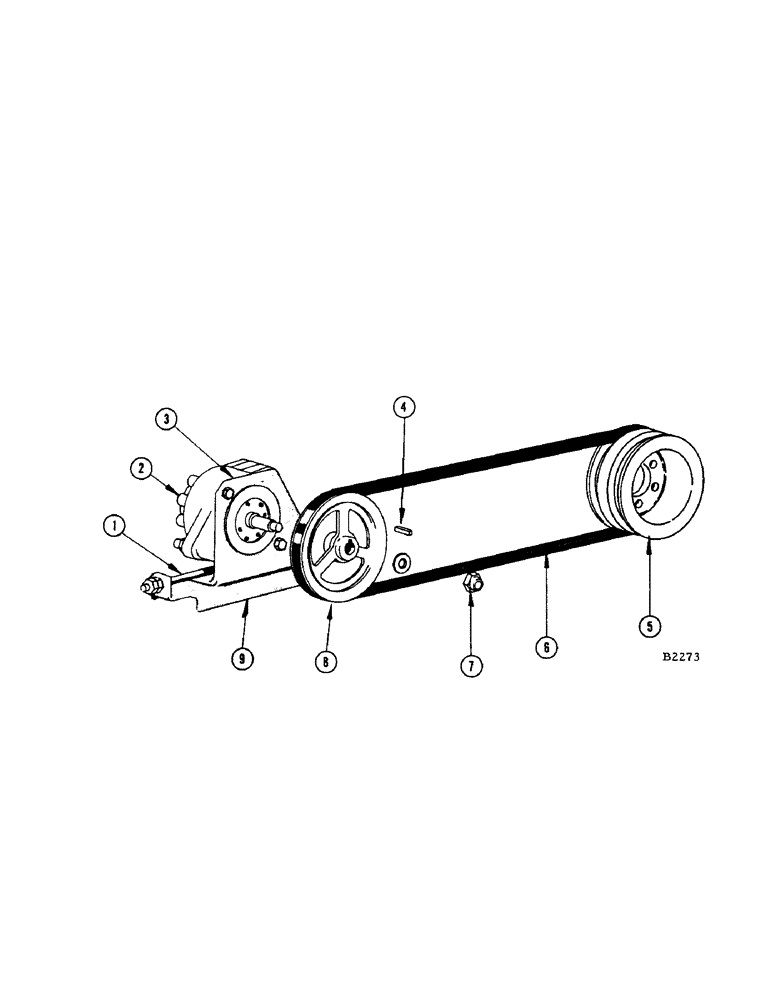

Запчасти Case IH 960 (276) - HYDRAULIC PUMP DIRVE BEFORE NO. 8334601 (35) - HYDRAULIC SYSTEMS

1

F18676

BOLT - adjusting

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

2

F79197

PUMP - hydraulic

1шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (14-724) Nut (25-117) and L.W. (92-7)

2шт.

3

F83224

PLATE - support

1шт.

BOLT - 3/8" x 1-1/14" N.C. rhd. sq. nk. (11-620) and Nut (25-106) L.W. (92-6)

1шт.

4

F9856

KEY

-, Serial Range: F1256-shaft

1шт.

5

F1643

SHEAVE - double (Drives hydraulic pump and grain bin)

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) L.W. (92-5)

3шт.

6

F18677

X

BELT - hydraulic pump drive (Replaced by F22170 when stocks are exhausted)

1шт.

F22170

BELT

- hydraulic pump drive (Replaces F18677 when stocks are exhausted)

1шт.

7

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - pump shaft (1/2" - 20 elastic stop)

1шт.

WASHER - 1/2" flat (95-8)

1шт.

8

F1256

SHEAVE - pump drive, driven

1шт.

9

F20942

BRACKET - adjusting

1шт.

BOLT - 3/8" x 1" N.C. rhd. sq. nk. (11-616) and Nut (25-106) L.W. (92-6)

3шт.

F79524

LARGE PLATE

KIT - back plate, includes valve seat

1шт.
