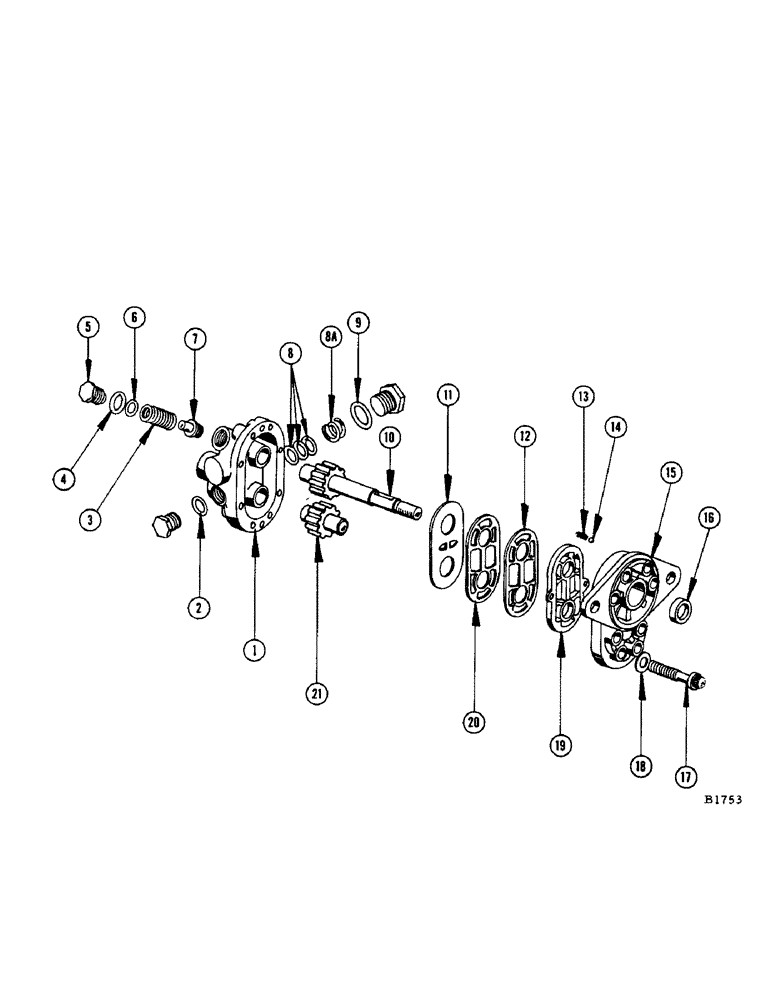

Запчасти Case IH 960 (276[1]) - HYDRAULIC PUMP F79197 BEFORE NO. 8334601 (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

2

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - spool (Replaces F11410 when exhausted)

1шт.

F11410

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - spool (Replaced by A7982)

1шт.

3

F12265

SPRING - relief valve (Replaced by F14841 when exh.)

1шт.

3

F14841

SPRING - relief valve (Replaces F12265 when exh.)

1шт.

4

F59121

O-RING

"O" RING - poppet

1шт.

5

F10890

PLUG

- (9/16" N.F.) For poppet

1шт.

6

F12267

WASHER

SHIM - relief valve

1шт.

7

F86259

VALVE POPPET

POPPET - (Replaced by FH732180 when exh.)

1шт.

7

FH732180

VALVE POPPET

POPPET - (Replaces F86259 when exh.)

1шт.

8

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

"O" RING - back plate

3шт.

8a

F21353

SPRING

- sleeve

1шт.

9

F10895

X

"O" RING - back plate

1шт.

10

F79201

GEAR

- drive (Includes shaft)

1шт.

11

F11404

DIAPHRAGM

- front plate

1шт.

12

F10896

GASKET

- protector

1шт.

13

F9883

SPRING

- steel ball

2шт.

14

211-6

BALL,7/32" Dia

steel 7/32" Dia

2шт.

15

F79198

PLATE ASSY.

PLATE - front

1шт.

16

F11406

SEAL

- drive gear shaft

1шт.

17

F11407

X

CAP SCREW - (5/16" x 2-1/2" N.F.) Body

8шт.

18

F10897

WASHER

- body cap screws

8шт.

19

F11409

SEAL

- diaphragm

1шт.

20

F11405

GASKET

- back up, front plate

1шт.

21

F79200

GEAR

- idler (Includes shaft)

1шт.
