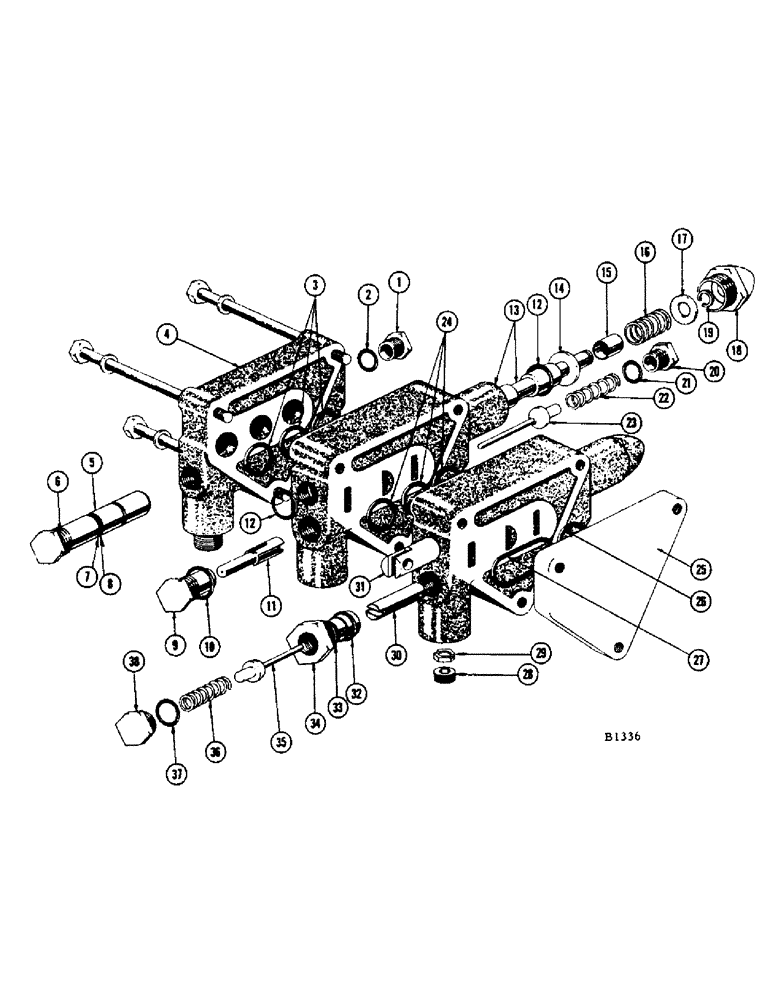

Запчасти Case IH 960 (274) - F87262 (35) - HYDRAULIC SYSTEMS

1

F8240

PLUG - upper port plate

1шт.

2

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) For plate plug

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D.) Port plate

3шт.

4

F1290

BODY - port plate

1шт.

13-578

BOLT - 5/16" x 4-7/8" N.C. hex. and L.W.

3шт.

5

F84829

VALVE

- relief, for F1290 port plate

1шт.

F84831

SEAL

KIT - port plate seal repair

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.)

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 5/8" I.D.)

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8" I.D.) backup-rubber

1шт.

9

F8242

PLUG - body

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) Body plug

1шт.

11

F8243

PLUNGER - lockout

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) Spool

2шт.

13

F77045

BODY - with spool (Includes ref. 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23)

1шт.

14

F8235

WASHER

- (59/64" O.D.) Backup

1шт.

15

F8224

SLEEVE

- spool

1шт.

16

F8225

SPRING - spool centering

1шт.

17

F8236

SHIM

WASHER - (51/64" O.D.) Backup

1шт.

18

F77047

CAP

- spool

1шт.

19

F8237

RING

SNAP RING - spool cap

1шт.

20

F8240

PLUG - lockout spring

1шт.

21

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) For F8240 plug

1шт.

22

F8228

SPRING

- lockout

1шт.

23

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

F8245

RETAINER - orifice plate (Not shown) same as ref. 28

1шт.

F8223

PLATE - orifice (Not shown) See ref. 29

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D.) For F77045

3шт.

25

F1228

PLATE - cover

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D.) For F1228

3шт.

27

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 1-1/2" I.D.)

1шт.

28

F8245

RETAINER - orifice plate

1шт.

29

F12260

PLATE - orifice

1шт.

30

F8229

PLUNGER

- lockout

1шт.

31

F77046

BODY - with spool (Includes ref. 12, 14, 15, 16, 17, 18, 19, 30, 32, 33, 34, 35, 36, 37 and 38)

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 9/16" I.D.) Lockout seat

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) Lockout seat

1шт.

34

F8227

SEAT - lockout

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

36

F8228

SPRING

- lockout

1шт.

37

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) For F11828 plug

1шт.

38

F11828

PLUG

- slotted, lockout spring

1шт.

F84830

KIT - major seal repair

1шт.

F84831

SEAL

KIT - repair, port plate seal (Includes ref. 6, 7 and 8)

1шт.

F84832

KIT-O-RING - between sections (Includes ref. 3, 24, 26 and 27)

1шт.

F84833

KIT - repair (F77046 V.S. section) (Includes ref. 12, 32, 33, 35 and 37)

1шт.

F84834

KIT

- repair (F77045 header section) (Includes ref. 10, 12, 21 and 23)

1шт.
