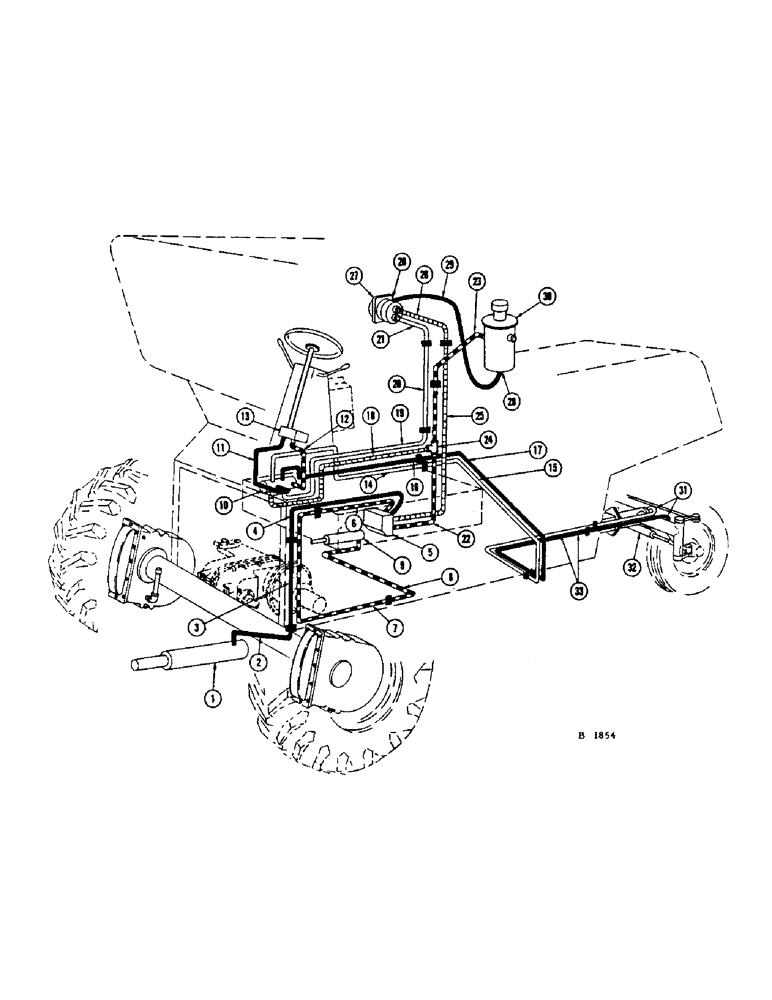

Запчасти Case IH 960 (273A) - HYDRAULIC SYSTEM NO. 8358001 AND AFTER (35) - HYDRAULIC SYSTEMS

1

F82009

CYLINDER - header lift (Grain combine)

1шт.

F82886

CYLINDER - header lift (Special combine)

1шт.

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - elbow 1/4" - 90 degree street, hose to cylinder

1шт.

2

F17490

HOSE - header lift cylinder

1шт.

F17859

CLIP - hose, F17490

1шт.

F17860

CLAMP - hose, F17490

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114)

1шт.

3

F81767

LINE - hydaulic, header lift lower

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6 HTX-S (F81767 to F81766)

1шт.

F17491

CLIP - hydraulic line

1шт.

F17867

CLIP - hydraulic line

2шт.

O2270N

SPACER

1шт.

4

F81766

LINE - hydraulic, header lift upper

1шт.

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF, #6-6FTXA (F81766 to valve)

1шт.

5

F87181

VALVE

- header lift and V.S. control (Manual unloading auger)

1шт.

F94386

VALVE - header lift and V.S control (Hydraulic unloading auger)

1шт.

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - #4-4 FTX-S

2шт.

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4"

2шт.

6

F81768

LINE - hydraulic, V.S. traction drive front

1шт.

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF, #6-6FTXA (F81768 to valve)

1шт.

7

F81769

LINE - hydraulic V.S. traction center

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-6HTX-S (F81768 to F81769 to F81770)

2шт.

F17867

CLIP - hydraulic line

4шт.

O2342FH

CLIP - hydraulic line

2шт.

B18299

SPACER

- hydraulic line

2шт.

8

F81770

LINE - hydraulic, V.S. traction drive lower

1шт.

F17867

CLIP - hydraulic line

3шт.

9

F76962

CYLINDER - variable speed control

1шт.

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - elbow #6-CTX-S (F81770 to F76962)

1шт.

10

A37980

VALVE

ASSEMBLY

1шт.

11

F84372

LINE - hydraulic, pump to valve R.H.

1шт.

12

F84376

LINE - hydraulic, pump to valve L.H.

1шт.

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - connector #8-F50X-S, F84372-376 to pump and valve

4шт.

13

F86570

PUMP - hydrostatic hand

1шт.

14

F82756

LINE - hydraulic, valve to cylinder front upper

1шт.

15

F82762

LINE - hydraulic, valve to cylinder rear upper

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S (F82756 to F82762)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector #6-F50X-S, F82756 to valve

1шт.

F22818

CLIP - hydraulic line

4шт.

16

F82757

LINE - hydraulic, valve to cylinder front lower

1шт.

17

F82761

LINE - hydraulic, valve to cylinder rear lower

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S (F82757 to F82761)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector #6-F50X-S, F82757 to valve

1шт.

F17491

CLIP - hydraulic line

2шт.

18

F22706

PLOW BOLT

LINE - hydraulic, Serial Range: valve-tee

1шт.

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

FITTING - connector #6-8F50X-S. F22706 to valve

1шт.

19

F82755

LINE - hydraulic, valve to pump front

1шт.

20

F82759

LINE - hydraulic, valve to pump rear

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S, F82755 to F82759

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector #6-F50X-S. F82755 to valve

1шт.

F17867

CLIP - hydraulic line

1шт.

21

F22509

HOSE -, Serial Range: pump-steering

1шт.

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

FITTING - elbow 3/4" x 45 degree street, F22509 to F79197

1шт.

22

F22704

PLOW BOLT

LINE - hydraulic, return, Serial Range: valve-tee

1шт.

23

F22817

LINE - hydraulic, return, from, Serial Range: tee-reservoir

1шт.

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING - connector #10-FTX-6

1шт.

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - connector #8-8FTX-S, F22704 to valve

1шт.

24

218-595

TEE,7/8"-14, 37 Degree

FITTING - tee #10 JTX-S, F22706 to F22704 to F22817

1шт.

25

F91752

LINE - rear pressure, Serial Range: pump-valve

1шт.

F91753

LINE - front pressure, Serial Range: pump-valve

1шт.

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

FITTING - union #8-HTX-S, F91752 to F91753

1шт.

F17487

CLIP - hydraulic line (F81762, 5, 7, 9, F91752 & F22705)

1шт.

F17488

STRIP - canvas (Use with F17487)

1шт.

26

F22508

HOSE -, Serial Range: pump-valve

1шт.

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

FITTING - adapter #8-8GTX-S. F22508 to F81762

1шт.

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - connector #8-8FTX-S. F81762 to valve

1шт.

27

F91969

PUMP - hydraulic (Exh. then use F89253)

1шт.

F89253

PUMP - hydraulic (Replaces F91969 when exh.)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116) and L.W.

2шт.

F60727

WASHER

1шт.

28

F22507

COUPLING - F22511 hose, Serial Range: pump-reservoir

2шт.

29

F22511

HOSE - intake

1шт.

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - F22511 hose

2шт.

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, F22511 to F83852 90º, 3/4"-14, NPT

1шт.

30

F83852

RESERVOIR - hydraulic

1шт.

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4"

1шт.

31

F12430

HOSE - hydraulic, 40" axle (Grain combine)

2шт.

F21221

HOSE - hydraulic, 66" axle (Grain combine)

2шт.

F22490

HOSE - hydraulic, 78" axle (Grain combine)

2шт.

F19381

HOSE - hydraulic, steering cylinder (Special combine)

2шт.

F8807

CLIP - hydrualic hose, steering cylinder

1шт.

F9566

CUSHION - hose clip

1шт.

32

F87848

CYLINDER - steering (Grain combine)

1шт.

NUT - 5/8" N.F. hex. jam (25-1510)

2шт.

F91830

CYLINDER

- steering (Special combine)

1шт.

NUT - 5/8" N.F. hex. jam (25-1510)

2шт.

33

F82803

LINE - hydraulic, extension (Special combine)

2шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S (F82803 to F82761-762)

2шт.
