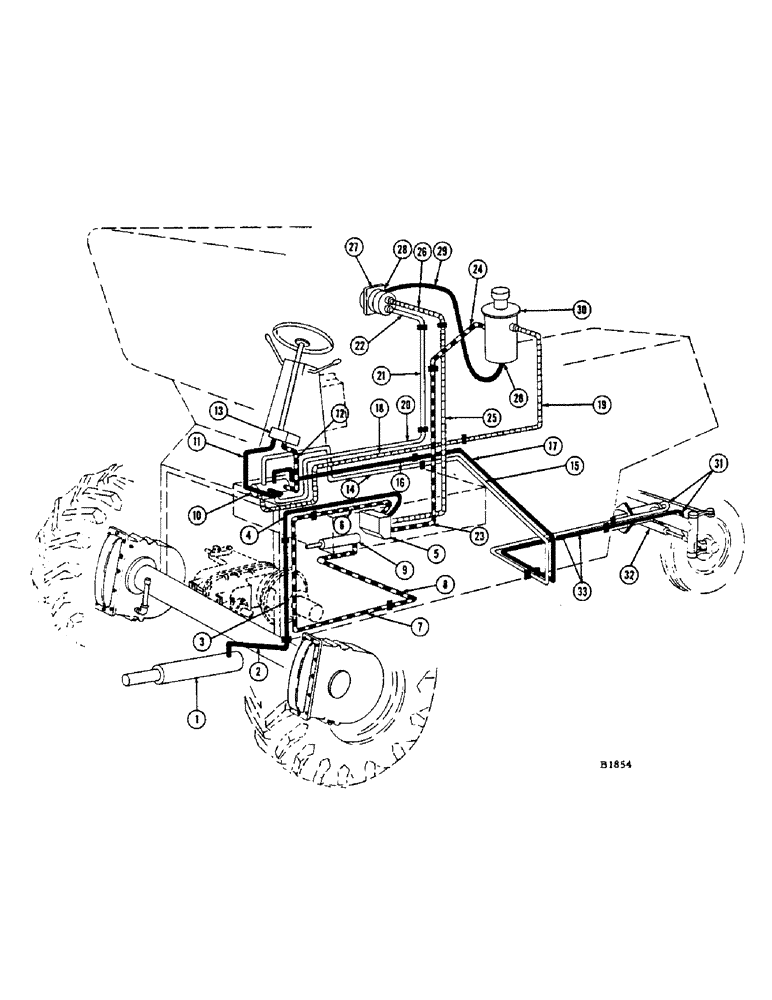

Запчасти Case IH 960 (270) - HYDRAULIC SYSTEM, BEFORE NO. 8358001 (35) - HYDRAULIC SYSTEMS

1

F82009

CYLINDER - header lift (Grain combine)

1шт.

F82886

CYLINDER - header lift (Special combine)

1шт.

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - elbow 1/4" - 90 degree street, hose to cylinder

1шт.

2

F17490

HOSE - header lift cylinder

1шт.

F17859

CLIP - hose, F17490

1шт.

F17860

CLAMP - hose, F17490

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114)

1шт.

3

F81767

LINE - hydraulic, header lift lower

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S (F81767 to F81766)

1шт.

F17491

CLIP - hydraulic line

1шт.

F17867

CLIP - hydraulic line

2шт.

O2270N

SPACER

1шт.

4

F81766

LINE - hydraulic, header lift upper

1шт.

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF, #6-6FTXA (F81766 to valve)

1шт.

5

F87262

VALVE

- header lift and variable speed control (Before #8311400)

1шт.

F87181

VALVE

- header lift and variable speed control (#8311400 and after)

1шт.

6

F81768

LINE - hydraulic, V.S. traction drive front

1шт.

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF, #6-6FTXA (F81768 to valve)

1шт.

7

F81769

LINE - hydraulic V.S. traction center

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITING - union #6-6HTXS (F81768 to F81769 to F81770)

2шт.

F17867

CLIP - hydrualic line

4шт.

B18299

SPACER

2шт.

8

F81770

LINE - hydraulic, V.S. traction drive lower

1шт.

F17867

CLIP - hydraulic line

3шт.

9

F76962

CYLINDER - variable speed control

1шт.

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - elbow #6-CTX-S (F81770 to F76962)

1шт.

10

A37980

VALVE

ASSEMBLY - (Replaces F82739 when exhausted)

1шт.

F82739

VALVE

ASSEMBLY - (Replaced by A37980 when exhausted)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116)

3шт.

11

F84372

LINE - hydraulic, pump to valve R.H.

1шт.

12

F84376

LINE - hydraulic, pump to valve L.H.

1шт.

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - connector #8-F50X-S, F84372-376 to pump and valve

4шт.

13

F86570

PUMP - hydrostatic hand

1шт.

14

F82756

LINE - hydraulic, valve to cylinder front upper

1шт.

15

F82762

LINE - hydraulic, valve to cylinder rear upper

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S (F82756 to F82762)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector #6-F50X-S, F82756 to valve

1шт.

F17486

CLIP - hydraulic line

4шт.

16

F82757

LINE - hydraulic, valve to cylinder front lower

1шт.

17

F82761

LINE - hydraulic, valve to cylinder rear lower

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S (F82757 to F82761)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector #6-F50X-S, F82757 to valve

1шт.

F17491

CLIP - hydraulic line

2шт.

18

F82754

LINE - hydraulic, valve to reservoir front

1шт.

19

F82758

LINE - hyd., valve to reservoir rear (Replaced by F91799)

1шт.

F91799

LINE - hyd., valve to reservoir rear (Replaces F82758 when exh.)

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S, F82754 to F82758

1шт.

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

FITTING - connector #6-8F50X-S, F82754 to valve

1шт.

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - elbow #6-CTX-S, F82758 to F83852

1шт.

20

F82755

LINE - hydraulic, valve to pump front

1шт.

21

F82759

LINE - hydraulic, valve to pump rear

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union #6-HTX-S, F82755 to F82759

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector #6-F50X-S, F82755 to F82739

1шт.

F17867

CLIP - hydraulic line

1шт.

22

F17766

HOSE - pump to steering (Before #8334601)

1шт.

F22509

HOSE - pump to steering (#8334601 and after)

1шт.

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

FITTING - ell 3/4" x 45 degree street, F17766 to F79197

1шт.

23

F81765

LINE - hydraulic, return, Serial Range: valve-reservoir

1шт.

24

F20910

HOSE - reservoir return

1шт.

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - connector #8-8FTX-S, F81765 to valve

1шт.

221-414

FITTING,90 Degree, 1/2"-14, NPT

- ell 1/2" x 90 degree street, F20910 to F83852

1шт.

25

F81762

LINE - hydraulic, rear pressure, Serial Range: pump-valve

1шт.

F91753

LINE - front pressure, Serial Range: pump-valve

1шт.

F17487

CLIP - hydraulic line (F81762-5-7-9)

1шт.

F17488

STRIP - canvas (Use with F17487)

1шт.

26

F51061

HOSE - pump to valve (Before #8334601)

1шт.

F22508

HOSE - pump to valve (#8334601 and after)

1шт.

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

FITTING - adaptor #8-8 GTX-S, F51061 to F81762

1шт.

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - connector #8-8 FTX-S, F81762 to valve

1шт.

27

F79197

PUMP - hydraulic (Before #8334601)

1шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (14-724) Nut (25-117)

2шт.

NUT - 1/2" - 20 stop (131-9) Flat washer (95-8)

1шт.

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

FITTING - ell 3/4" x 45 degree street, F18673 to F79197

1шт.

F91969

PUMP - hydraulic (#8334601 and after) (Exh. then use F89253)

1шт.

F89253

PUMP - hydraulic (#8334601 and after) (Replaces F91969 when exh.)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116) L.W.

2шт.

F60727

WASHER

- (8334601 and after)

1шт.

28

F8049

COUPLING - F18673 hose to pump and reservoir (Before #8334601)

2шт.

F22507

COUPLER - hose (#8334601 and after)

1шт.

29

F18673

HOSE - intake (Before #8334601)

1шт.

F22511

HOSE - intake (#8334601 and after)

1шт.

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - F18673 hose

2шт.

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, F18673 to F83852 90º, 3/4"-14, NPT

1шт.

30

F83852

RESERVOIR - hydraulic

1шт.

31

F12430

HOSE - hydraulic, 40" axle (Grain combine)

2шт.

F21221

HOSE - hydraulic, 66" axle (Grain combine)

2шт.

F22490

HOSE - hydraulic, 78" axle (Grain combine)

2шт.

F19381

HOSE - hydraulic, steering cylinder (Special combine)

2шт.

F8807

CLIP - hydraulic hose, steering cylinder

1шт.

F9566

CUSHION - hose clip

1шт.

32

F87848

CYLINDER - steering (Grain combine) Replaces F86540

1шт.

NUT - 5/8" N.F. hex. jam (25-1510)

2шт.

F91830

CYLINDER

- steering (Special combine) Replaces F82953

1шт.

NUT - 5/8" N.F. hex. jam (25-1510)

2шт.

33

F82803

LINE - hydraulic, extension (Special combine)

2шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union 6-HTX-S, F82803 to F82761 - 762

2шт.
