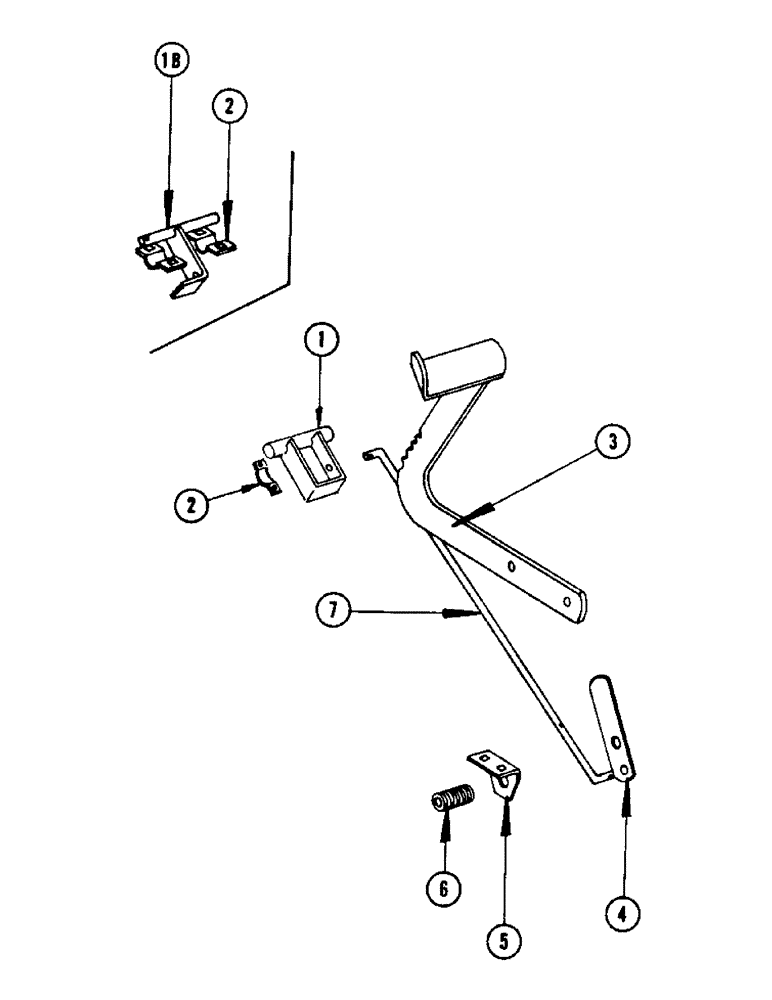

Запчасти Case IH 960 (326) - BRAKE LOCK (33) - BRAKES & CONTROLS

1

F84907

LOCK - parking brake (#8311400 and after)

1шт.

1b

F81750

LOCK - parking brake (Before #8311400)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

F17464

CLIP - anchor

2шт.

BOLT - 1/4" x 1/2" N.C. rhd. sq. nk. (11-48)

4шт.

NUT - 1/4" (25-104) L.W. (92-4)

4шт.

3

F82425

PEDAL - L.H. brake

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116)

2шт.

4

F17466

HANDLE - lock

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (13-624) locknut (131-6)

1шт.

5

F17465

BRACKET - parking brake lock

1шт.

BOLT - 1/4" x 1/2" N.C. rhd. sq. nk. (11-48) Nut (25-104)

2шт.

LOCKWASHER - 1/4" (92-4)

2шт.

6

A30370

SPRING - for ref. 4 handle

1шт.

7

F17467

ROD - parking brake lock

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.
