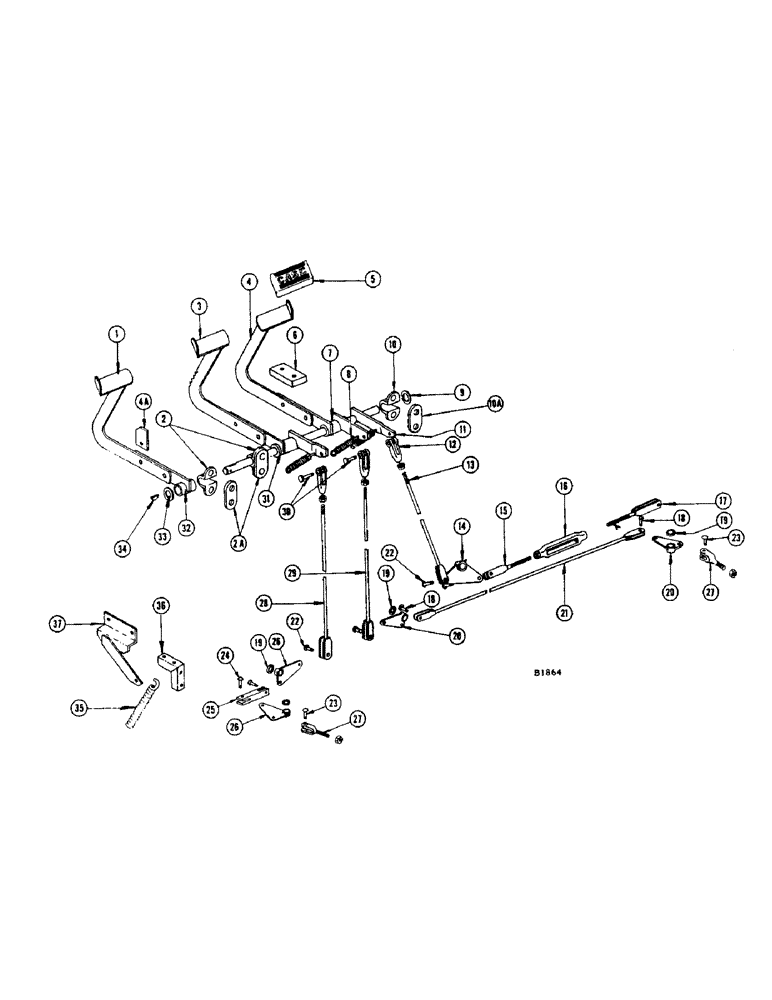

Запчасти Case IH 960 (322) - TURNING BRAKE PEDAL AND LINKAGE, 960 SPECIAL COMBINE (33) - BRAKES & CONTROLS

1

F82424

PEDAL - clutch

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

2

F22384

BEARING - pivot (Replaces F1227 when exhausted)

2шт.

2a

F22385

SPACER - pivot bearing (Used with ref. 2)

2шт.

F1227

BEARING - pivot, brakes and clutch shaft (Replaced by F22384 and F22385 when stocks are exhausted)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

4шт.

3

F82425

PEDAL - L.H. brake

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

4

F82426

PEDAL - R.H. brake

1шт.

4a

F22477

STOP - pedal

3шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

5

F9197

PAD

COVER - brake pedals and clutch pedal

3шт.

6

F4334

BLOCK - rub, R.H. brake pedal

1шт.

BOLT - 5/16" x 1-1/4" N.C. rhd. sq. nk. (11-520)

2шт.

NUT - 5/16" (25-105) L.W. (92-5)

2шт.

7

F82748

HUB - R.H. brake pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4" - 28 thrd. str.

1шт.

8

F17468

SPRING

- for brake and clutch rods (Before #8323600)

3шт.

8

F17468

SPRING

- for brake rods (#8323600 and after)

2шт.

9

O906B

WASHER

- brake pedal shaft

1шт.

10

F22384

BEARING - pivot, clutch shaft (See ref. 2 and 2A)

1шт.

10a

F22385

SPACER - pivot bearing (See ref. 2A)

1шт.

F1227

BEARING - pivot, clutch shaft (See ref. 2 and 2A)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

11

F81671

SHAFT - clutch pivot, with hub

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

12

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for clutch and brake rods to ref. 11 shaft

3шт.

13

F81908

ROD - clutch, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

14

F1442

BELLCRANK - clutch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

15

F82737

ROD - bellcrank to clutch, L.H.

1шт.

NUT - 5/16" N.C. hex. (25-105)

1шт.

16

F17954

TURNBUCKLE - for ref. 15 and ref. 17 rods

1шт.

17

F82084

ROD - bellcrank to clutch, R.H.

1шт.

18

O5341CS

PIN - clevis, ref. 21 cross link to ref. 20 bellcrank

2шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

19

F20286

WASHER

- for ref. 20 bellcrank

8шт.

20

F1594

BELLCRANK - R.H. cross link and R.H. brake rod

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

2шт.

132-50

COTTER PIN,1/8" x 1 1/4"

PIN - cotter 1/4" x 1-1/2"

2шт.

21

F82730

LINK - cross, turning brake

1шт.

22

O1235HT

PIN - clevis

4шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

23

O2009TS

PIN - clevis

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

24

VT2689

PIN - for ref. 25 to ref. 26 (Replaced by 141-4 when exh.)

2шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (Replaces VT2689 when stock is exhausted) 3/8" x 1.060"

2шт.

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

25

F19293

LINK - cross, L.H. brake link

1шт.

26

F1594

BELLCRANK - L.H. cross link and L.H. brake rod

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

PIN - cotter 1/4" x 1-1/2"

1шт.

27

F19554

CLEVIS - brake rods to ref. 20 and ref. 26 bellcranks

2шт.

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex. jam

2шт.

28

F82753

ROD - L.H. brake, Serial Range: pedal-bellcrank

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

29

F82751

ROD - R.H. brake, Serial Range: pedal-bellcrank

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

30

O5341CS

PIN - ref. 12 clevis to pivot hubs

3шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

31

F82749

HUB - L.H. brake pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4" - 28 thrd. str.

1шт.

32

F77497

HUB - clutch pivot (Keys to ref. 11 shaft)

1шт.

33

O906B

WASHER

- clutch pedal shaft

1шт.

34

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 32 hub to ref. 11 shaft #A, 1/4" x 7/8", HT

1шт.

35

F22480

SPRING - clutch pedal (#8323600 and after)

1шт.

36

F91646

SUPPORT - spring (#8323600 and after)

1шт.

37

F91949

LEVER - spring - (#8323600 and after)

1шт.
