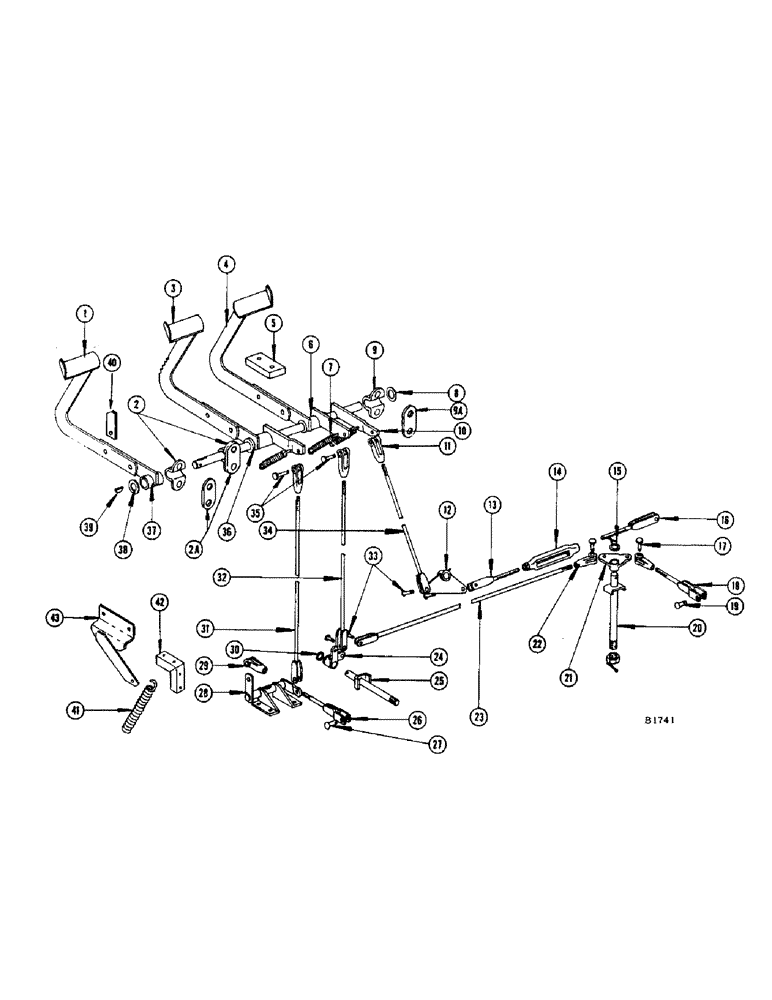

Запчасти Case IH 960 (306) - TURNING BRAKE PEDAL AND LINKAGE - GRAIN COMBINE (33) - BRAKES & CONTROLS

1

F82424

PEDAL - clutch

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

F9197

PAD

COVER - clutch pedal (Not shown)

1шт.

2

F22384

BEARING - pivot, clutch shaft (Replaces F1227 when stocks are exhausted)

2шт.

2a

F22385

SPACER - pivot bearing (Use with ref. 2)

2шт.

F1227

BEARING - pivot, brake and clutch shaft (Replaced by F22384 and F22385 when stocks are exhausted)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

4шт.

3

F82425

PEDAL - L.H. brake

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

4

F82426

PEDAL - R.H. brake

1шт.

F9197

PAD

COVER - brake pedals (Not shown)

2шт.

5

F4334

BLOCK - rub, R.H. brake pedal

1шт.

BOLT - 5/16" x 1-1/4" N.C. rhd. sq. nk. (11-520)

2шт.

NUT - 5/16" (25-105) L.W. (92-5)

2шт.

6

F81933

HUB - R.H. brake pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4" - 28 thrd. str.

1шт.

7

F17468

SPRING

- for brake and clutch rods (Before #8323600)

3шт.

7

F17468

SPRING

- for brake rods (#8323600 and after)

2шт.

8

O906B

WASHER

- brake pedal shaft

1шт.

9

F22384

BEARING - pivot clutch shaft (See ref. 2 and 2A)

1шт.

9a

F22385

SPACER - pivot shaft (See ref. 2A)

1шт.

F1227

BEARING - pivot, clutch shaft (See ref. 2 and 2A)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

10

F81671

SHAFT - clutch pivot, with hub

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

11

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for clutch and brake rods to ref. 10 shaft

3шт.

12

F1442

BELLCRANK - clutch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

13

F81910

ROD - bellcrank to clutch, L.H.

1шт.

NUT - 5/16" N.C. hex. (25-105)

1шт.

14

F17954

TURNBUCKLE - ref. 13 and ref. 16 rods

1шт.

15

B18080

WASHER

- for ref. 21 bellcrank

1шт.

16

F82084

ROD - bellcrank to clutch, LH.

1шт.

17

O5341CS

PIN - clevis, 213-3 clevis for ref. 18 and ref. 23 links to ref. 21 bellcrank

2шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

18

F81930

LINK - rod, F1485, Serial Range: bellcrank-clutch

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - 1/2" clevis, ref. 18 link to clutch arm

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

20

F81951

STUD - bellcrank, R.H. brake

1шт.

NUT - 5/8" N.F. slotted (25-1310)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21

F1485

BELLCRANK - R.H. brake

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - ref. 18 and ref. 23 links to ref. 21 bellcrank

2шт.

23

F81928

LINK - cross, turning brake

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

24

F1484

BELLCRANK - (Exhaust then use F89246)

1шт.

F89246

BELLCRANK - (Replaces F1484 when exh.)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

25

F81952

STUD - bellcrank

1шт.

NUT - 5/8" N.F. hex. slotted (25-1310)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

26

F81930

LINK - rod

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

27

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - 1/2" clevis, ref. 26 link to clutch arm

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

28

F82087

BELLCRANK - L.H. turn brake

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

BOLT - 5/16" x 6" N.C. rhd. sq. nk. (11-596)

4шт.

NUT - 5/16" (25-105) L.W. (92-5)

4шт.

29

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - ref. 26 link to ref. 28 bellcrank

1шт.

30

B18080

WASHER

- ref. 24 bellcrank

1шт.

31

F81936

ROD - L.H. brake, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

32

F81913

ROD - R.H brake, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

33

O1235HT

PIN - clevis, for welded end of ref. 13, 31, 32 and 34 rods

4шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

4шт.

34

F81908

ROD - clutch, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

35

O5341CS

PIN - clevis (1 each for clevis 213-3 of ref. 31, 32 and 34 rods)

3шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

3шт.

36

F81934

HUB - L.H. brake pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4" - 28 thrd. str.

1шт.

37

F77497

HUB - clutch pivot (Keys to ref. 10 shaft)

1шт.

38

O906B

WASHER

- clutch pedal shaft

1шт.

39

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 37 hub to ref. 10 shaft #A, 1/4" x 7/8", HT

1шт.

40

F22477

STOP - pedal (Ref. 1, 3 and 4)

3шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

41

F22480

SPRING - clutch pedal (#8323600 and after)

1шт.

42

F91946

SUPPORT - spring (#8323600 and after)

1шт.

43

F91949

LEVER - spring (#8323600 and after)

1шт.
