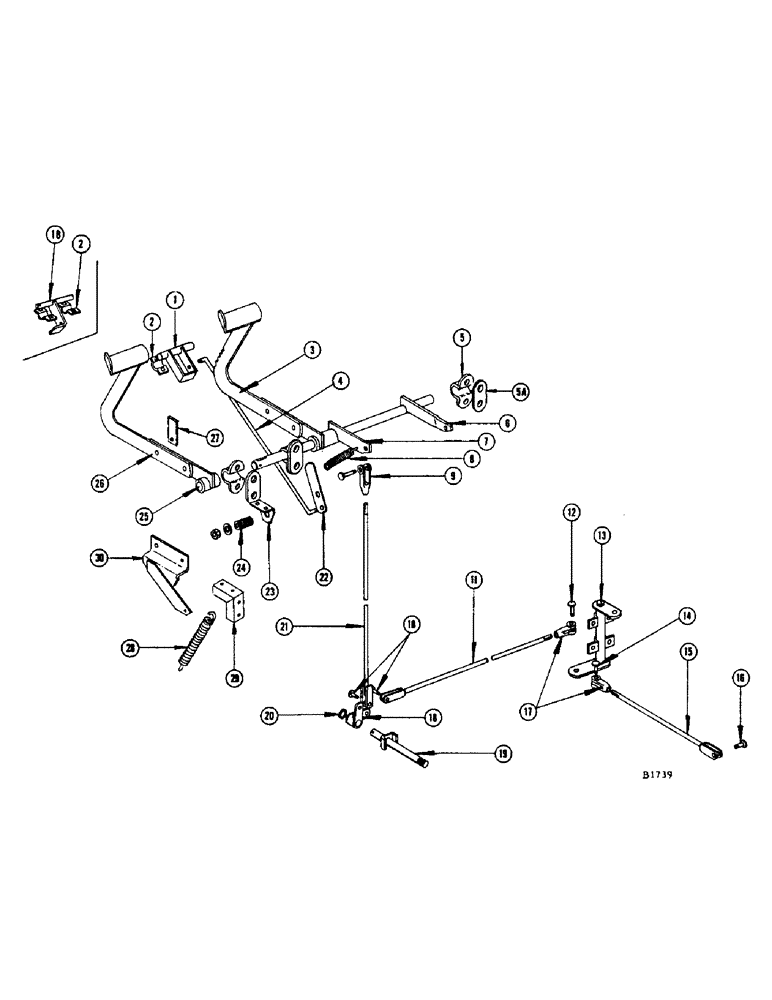

Запчасти Case IH 960 (304) - PARKING BRAKE PEDAL AND LINKAGE, GRAIN COMBINE (33) - BRAKES & CONTROLS

1

F84907

LOCK - parking brake (#8311400 and after)

1шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

1b

F81750

LOCK - parking brake (Before #8311400)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

F17464

CLIP - brake lock anchor

2шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) Nut (25-104) L.W. (92-4)

4шт.

3

F82425

PEDAL - parking brake

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

4

F17467

ROD - brake lock

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

5

F22384

BEARING - pivot, brake and clutch shaft (Replaces F1227 when stocks are exhausted)

3шт.

5a

F22385

SPACER - pivot shaft (Use with ref. 5)

3шт.

F1227

BEARING - pivot, brake and clutch shaft (Replaced by F22384 and F22385 when stocks are exhausted)

3шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

3шт.

6

F81671

SHAFT - clutch pivot, with hub

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

F81672

SHAFT - brake pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 3/8 drive

1шт.

8

F17468

SPRING

- brake and clutch rods (Before #8323600)

2шт.

8

F17468

SPRING

- brake rods (#8323600 and after)

1шт.

9

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for F81913 rod

1шт.

O5341CS

PIN - 213-3 clevis

1шт.

10

O1235HT

PIN - clevis, for F81912, F81913 rods

2шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

11

F81912

LINK - cross, parking brake

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

12

O5341CS

PIN - for F81912 rod

1шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

13

F81947

BELLCRANK - parking brake

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

BOLT - 5/16" x 5" rhd. sq. nk. (11-580) Nut (25-105)

4шт.

14

O5341CS

PIN - for F81911 rod

1шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

15

F81911

LINK - parking brake

1шт.

NUT - 5/16" x N.F. hex. (25-115)

1шт.

16

O1235HT

PIN - clevis, for F81911 rod

1шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

17

21-3

CLEVIS - for F81911, F81912 rods

2шт.

18

F1484

BELLCRANK - (Exh. then use F89246)

1шт.

F89246

BELLCRANK - (Replaces F1484 when exh.)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

19

F81952

STUD - bellcrank

1шт.

NUT - 5/8" N.F. hex. slotted (25-1310)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

B18080

WASHER

- bellcrank

1шт.

21

F81913

ROD - brake pedal

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

22

F17466

HANDLE - brake lock

1шт.

23

F17465

BRACKET - brake lock

1шт.

24

A30370

SPRING

1шт.

25

F77497

HUB - clutch pivot

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

26

F82424

PEDAL - clutch

1шт.

27

F22477

STOP - pedal (Ref. 3 and 26)

2шт.

28

F22480

SPRING - clutch pedal (#8323600 and after)

1шт.

29

F91946

SUPPORT - spring (#8323600 and after)

1шт.

30

F91949

LEVER - spring (#8323600 and after)

1шт.
