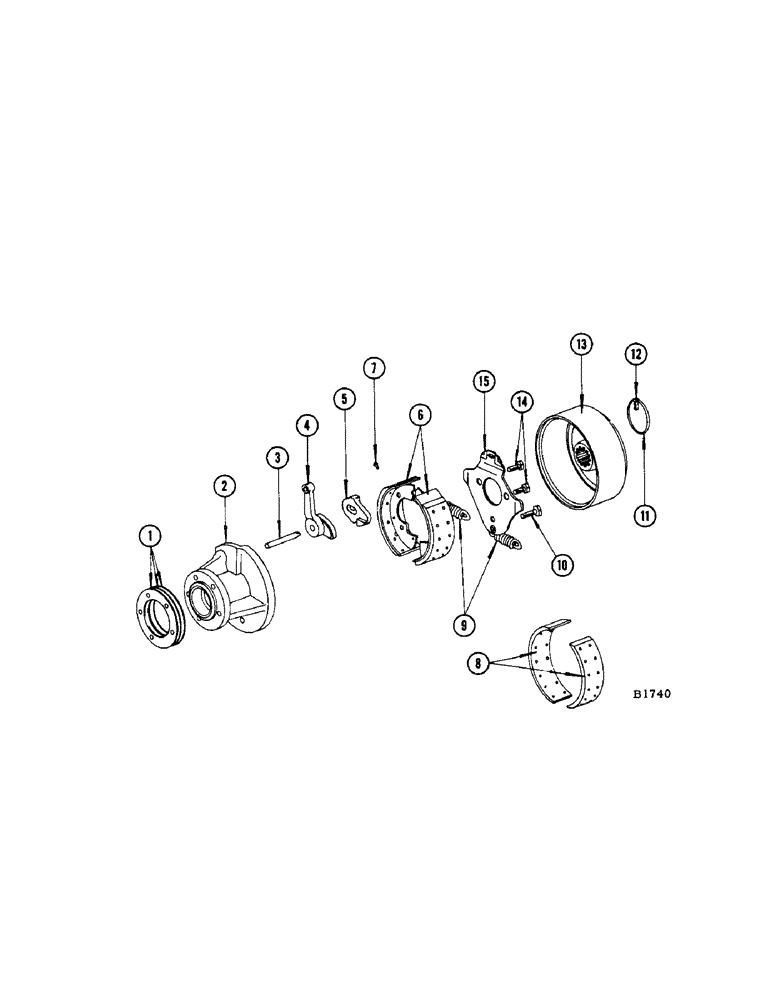

Запчасти Case IH 960 (302[1]) - TURNING BRAKES - GRAIN COMBINE (33) - BRAKES & CONTROLS

1

F18263

SHIM - axle shaft bearing (.003")

1шт.

F18264

SHIM - axle shaft bearing (.005")

1шт.

F18265

SHIM - axle shaft bearing (.010")

1шт.

2

F1565

ADAPTOR - brake housing, R.H.

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. (113-301) L.W. (92-7)

5шт.

F1566

ADAPTOR - brake housing, L.H.

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. (113-301) L.W. (92-7)

5шт.

3

F18364

PIN - cam and lever operating

2шт.

4

F18362

LEVER - brake actuating, L.H.

1шт.

F18363

LEVER - brake actuating, R.H.

1шт.

5

F18360

CAM - L.H. actuating

1шт.

F18361

CAM - R.H. actuating

1шт.

6

F82296

SHOE - brake

1шт.

7

33230

RIVET

- brake lining (Brass tubular)

48шт.

8

F82297

KIT

LINING - brake (Includes 1 pair of linings)

1шт.

9

F18366

SPRING

- brake return

4шт.

10

113-609

X

BOLT - (5/8" x 1-5/8" N.C. hex. grade 7 or 8) For ref. 15 plate

2шт.

LOCKWASHER - 5/8" (92-10)

2шт.

11

391-620

LOCK,#16 Ga x 12"

WIRE - (12" - #16) For ref. 12 bolt

1шт.

12

F18397

BOLT - brake drum (3/8" x 1/2" N.C. grade 2)

1шт.

13

F1567

DRUM

- brake

2шт.

14

113-415

BOLT - (1/2" x 1-1/8" N.C. hex. grade 7 or 8) For ref. 15 plate

4шт.

LOCKWASHER - 1/2" (92-8)

4шт.

15

F82301

PLATE - brake support

2шт.
