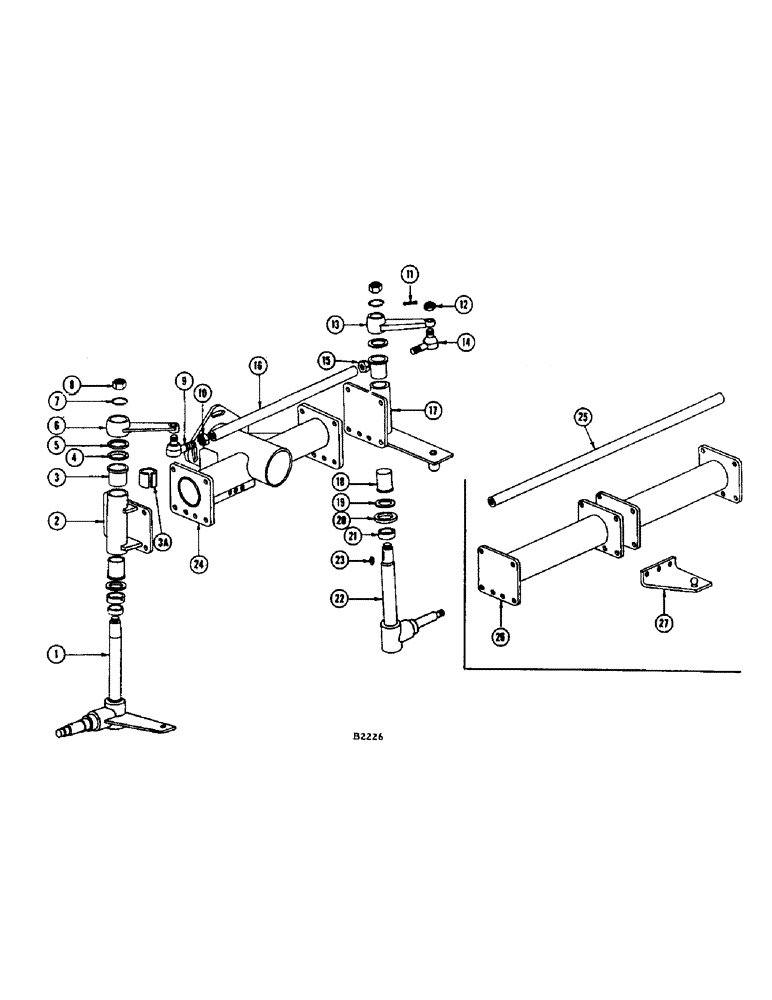

Запчасти Case IH 960 (348) - ADJUSTABLE REAR AXLE, 960 SPECIAL COMBINE (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
1
F84042
SPINDLE - L.H. steering
1шт.
2
F84842
TUBE - L.H. spindle
1шт.
FITTING - grease 1/8" str. (219-1)
1шт.
BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Nut (25-118)
4шт.
LOCKWASHER - (92-8)
4шт.
3
F14817
BUSHING
2шт.
3a
F14818
SPACER - (For ref. 2 and 17)
1шт.
4
O168CB
WASHER - shim, spindle tube
6шт.
5
V20203
PLATE
WASHER - spindle tube
4шт.
6
F3149
ARM - L.H. spindle
1шт.
7
92-16
LOCK WASHER,1"
WASHER, LOCK, , Spindle 1"
2шт.
8
25-1516
NUT,Jam, 1"-14, G5
- (1" N.F. hex. jam) Spindle
2шт.
9
F86783
END - L.H., tie rod
1шт.
10
129-350
NUT - (1" N.C. hex., L.H. thrd.) Ref. 9 end
1шт.
11
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), , Tie rod ends 1/8" x 1"
2шт.
12
25-139
SLOTTED NUT,9/16"-18, G5
NUT - (9/16" N.F. hex. slotted) Tie rod ends
2шт.
13
F3150
ARM - R.H. spindle
1шт.
14
F86782
END - R.H., tie rod
1шт.
15
25-1416
NUT,Jam, 1"-8, G5
- 1" N.C. hex. jam, ref. 14 end
1шт.
16
F12740
TIE ROD - center (Narrow axle)
1шт.
17
F84840
TUBE - R.H. spindle
1шт.
FITTING - grease 1/8" str. (219-1)
1шт.
BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Nut (25-118)
4шт.
LOCKWASHER - (92-8)
4шт.
18
F14817
BUSHING
2шт.
19
F10300
WASHER - thrust, spindle
2шт.
20
A27602
THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"
BEARING - spindle
2шт.
21
F10299
SLEEVE - spindle bearing
2шт.
22
F86312
SPINDLE - R.H. steering
1шт.
23
126-40
WOODRUFF KEY,#G, 3/8" x 1 1/2"
Spindle arms to spindle #G, 3/8" x 1 1/2"
2шт.
24
F83561
AXLE - rear
1шт.
FITTING - grease (1/8" - 67-1/2 degrees (219-40)
1шт.
25
F12739
HOUSING
TIE ROD - center (Wide axle)
1шт.
26
F83562
EXTENSION - axle (Wide axle)
2шт.
BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Nut (25-118)
12шт.
LOCKWASHER - (92-8)
12шт.
27
F83563
PLATE - and anchor, steering cylinder (Wide axle)
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116)
3шт.
LOCKWASHER - (92-6)
3шт.
Выбрано товаров: 39
