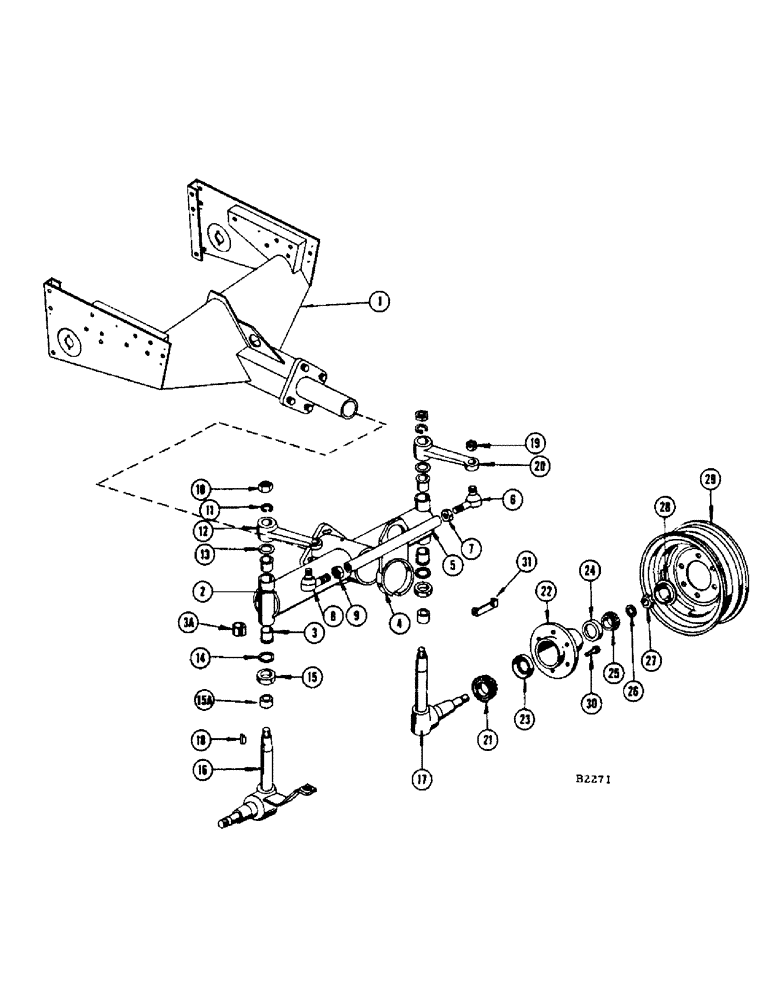

Запчасти Case IH 960 (346) - REAR AXLE - HEAVY DUTY NARROW, 960 SPECIAL COMBINE (27) - REAR AXLE SYSTEM

1

F82711

SUPPORT - rear axle (Rice special w/grain bin)

1шт.

A27339

GROMMET

1шт.

F84468

SUPPORT - rear axle (Rice special with bagger)

1шт.

A27339

GROMMET

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

6шт.

BOLT - 3/8" x 2-3/4" N.F. hex. (14-644) Nut (25-116)

8шт.

2

F82718

AXLE - rear

1шт.

3

F14817

BUSHING

4шт.

3a

F14818

SPACER

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

2шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" - 67-1/2 degrees

1шт.

4

F83340

COLLAR - axle

1шт.

5

F12740

TIE ROD - center

1шт.

6

F86782

END - R.H., tie rod

1шт.

7

25-1416

NUT,Jam, 1"-8, G5

- 1" N.C. hex. jam

1шт.

8

F86783

END - L.H. tie rod

1шт.

9

129-350

NUT - 1" N.C. hex. jam, L.H. thrd.

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- 1" N.F. hex. jam

2шт.

11

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

12

F3149

ARM - L.H. spindle

1шт.

13

O168CB

WASHER - shim, spindle tube

1шт.

V20203

PLATE

WASHER

1шт.

14

F10300

WASHER - thrust

2шт.

15

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - spindle

2шт.

15a

F10299

SLEEVE - bearing

2шт.

16

F84042

SPINDLE - L.H. steering

1шт.

17

F86312

SPINDLE - R.H. steering

1шт.

18

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

2шт.

19

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" N.F. slotted hex.

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

20

F3150

ARM - R.H. spindle

1шт.

21

F86364

BEARING CONE

BEARING AND SEAL - inner bearing

2шт.

22

F79241

HUB - wheel

2шт.

23

F62097

CUP ASSY.

CUP - inner bearing

2шт.

24

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing

2шт.

25

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing

2шт.

26

A31148

WASHER

- wheel bearing

2шт.

27

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

28

G57436

CYLINDER END CAP

CAP - hub

2шт.

29

O9930HT

WHEEL - rear (For 7.50 x 18 tire)

2шт.

30

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel

12шт.

31

F20025

BRACKET

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex. (14-720) Stop nut (131-7)

2шт.
