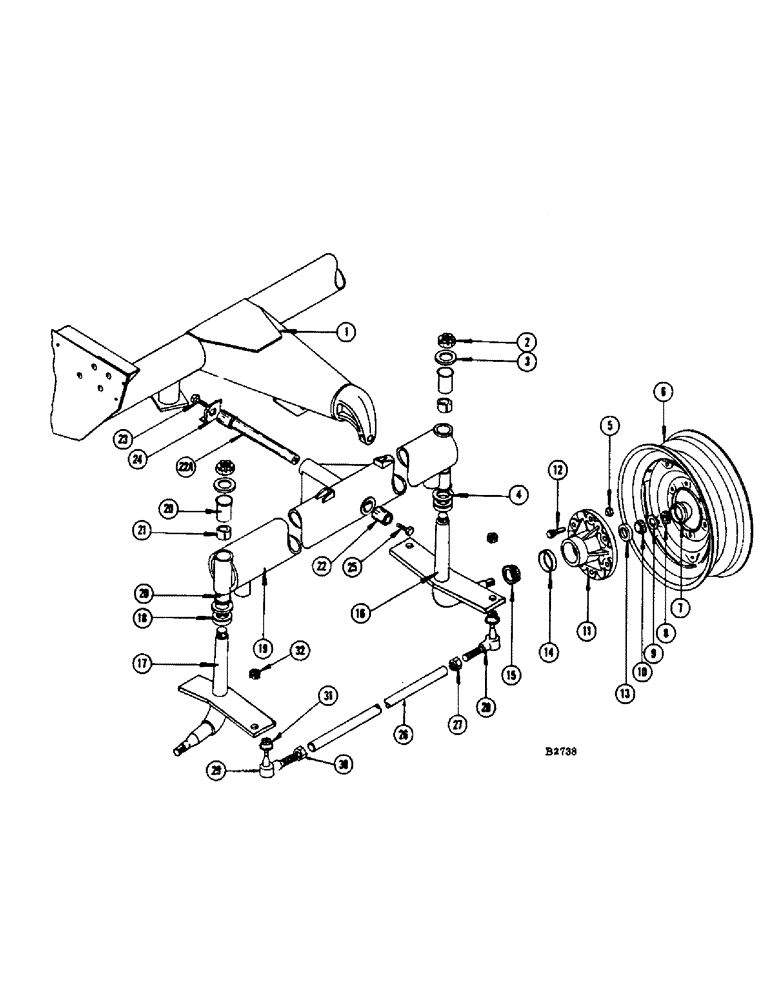

Запчасти Case IH 960 (342) - STEERING ARM AND AXLE, 78" WIDE, GRAIN COMBINE (27) - REAR AXLE SYSTEM

1

F88323

TUBE

SUPPORT - rear axle (Grain combine w/grain bin)

1шт.

A27339

GROMMET

1шт.

F88325

SUPPORT - rear axle (Grain combine w/bagger)

1шт.

A27339

GROMMET

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116), Lockwasher (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

9шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex., nut (25-116) Lockwasher (92-6)

12шт.

2

F62106

NUT

- steering spindles

2шт.

3

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- upper, spindles

1шт.

4

A30047

WASHER

- lower, spindles

2шт.

5

F23214

WHEEL NUT

- 1/2" N.F. (For ref. 12 bolt)

12шт.

6

F18801

MAKING-UP

WHEEL - steering (For 6:00 x 16, 4-ply tire)

2шт.

7

MT2560S

CAP

HUB CAP - wheel

2шт.

8

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex. slotted (For R.H. and L.H. spindles)

2шт.

9

O2736AB

WASHER - wheel hub

2шт.

10

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing outer, wheel hub

2шт.

11

F81254

HUB - wheel

2шт.

12

11175K

BOLT

6шт.

13

B12410

BEARING, CUP,1.782" OD

CUP - bearing outer

1шт.

14

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing inner

1шт.

15

T17079

CUP

SEAL AND CONE - wheel hub

2шт.

16

F83452

SPINDLE - R.H. (78" wide axle)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

PIN - cotter 3/32" x 1-1/4"

1шт.

132-58

COTTER PIN

PIN - cotter 1/8" x 2-1/4"

1шт.

17

F83085

SPINDLE - L.H. steering (78" wide axle)

1шт.

132-58

COTTER PIN

PIN - 1/8" x 2-1/4" cotter

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

18

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - spindle

2шт.

19

F91953

AXLE - rear (78" wide axle)

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" x 67-1/2 degrees

1шт.

20

F14814

BUSHING

4шт.

21

F14813

SPACER

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" - 45 degrees

2шт.

22

F11810

BUSHING - pivot

2шт.

22a

F22489

SHAFT - pivot

2шт.

23

114-621

BOLT

- rear axle pivot

1шт.

24

F22495

WASHER - thrust, pivot bolt

2шт.

25

114-620

BOLT

- front axle pivot

1шт.

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

26

F22579

TUBE - tie rod (Exh. then use F23121)

1шт.

F23121

TUBE - tie rod (Replaces F22579 when stock exh.)

1шт.

PIN - cotter, 1/8" x 1-1/4" (132-50)

2шт.

27

F22580

NUT

- jam R.H. thrd.

1шт.

28

F94027

END

- R.H. (Exh. then use F89267)

1шт.

F89267

END

- R.H. (Replaces F94027 when exh.)

1шт.

29

F94026

END - L.H. (Exh. then use F89268)

1шт.

F89268

END - L.H. (Replaces F94026 when exh.)

1шт.

30

F22578

NUT - jam L.H. thrd.

1шт.

31

G46043

COVER

SEAL - (Rubber) Tie rod ends (For F94026 & F94027)

2шт.

32

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" N.F. hex. slotted (For F94026 & F94027 ends)

2шт.
