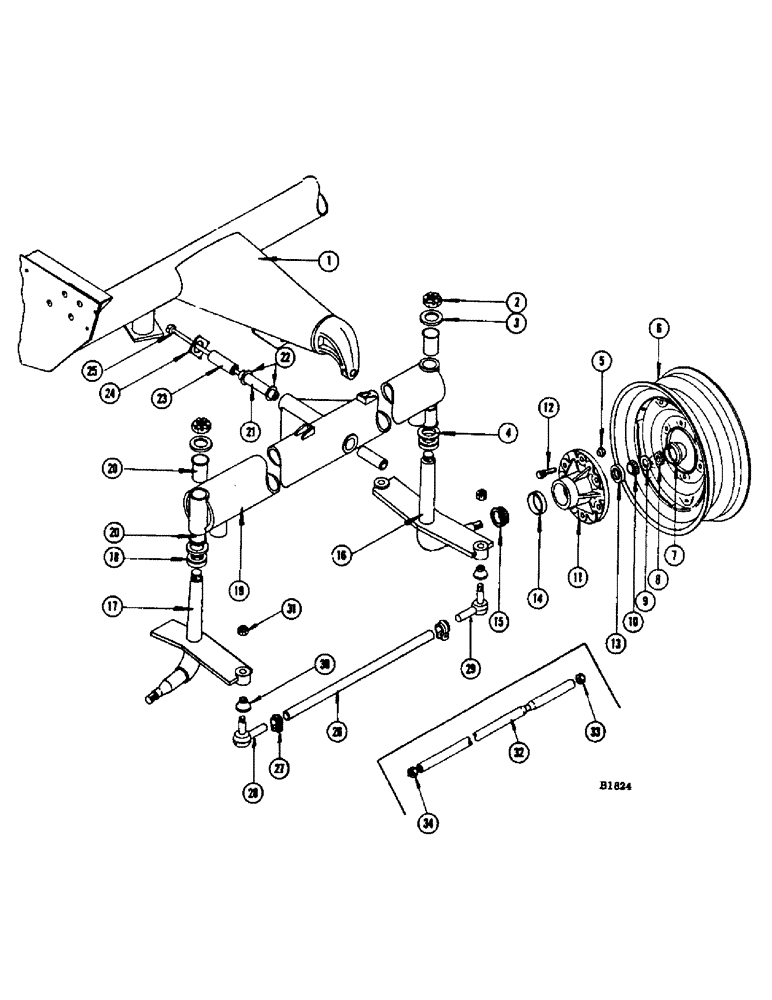

Запчасти Case IH 960 (340) - STEERING ARM AND AXLE, 40" AND 66" WIDE, GRAIN COMBINE (27) - REAR AXLE SYSTEM

1

F83440

AXLE, REAR

SUPPORT - rear axle (Grain combine w/grain bin)

1шт.

F83442

SUPPORT - rear axle (Grain combine w/bagger)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

6шт.

BOLT - 3/8" x 2-3/4" N.F. hex. (14-644) Nut (25-116) L.W.

8шт.

2

F62106

NUT

- steering spindles

2шт.

3

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- upper, spindles

2шт.

4

F30047

WASHER - lower, spindles

2шт.

5

F23214

WHEEL NUT

- (1/2" N.F.) For ref. 12 bolt

12шт.

6

F18801

MAKING-UP

WHEEL - steering (For 6:00 x 16 4 ply tire)

2шт.

7

MT2560S

CAP

HUB CAP - wheel

2шт.

8

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - (5/8" N.F. hex. slotted) For R.H. and L.H. spindles

2шт.

9

O2736AB

WASHER - wheel hub

2шт.

10

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - (Timken #LM11949) Bearing outer, wheel hub

2шт.

11

F81254

HUB - wheel

2шт.

12

11175K

BOLT

12шт.

13

B12410

BEARING, CUP,1.782" OD

CUP - (Timken #LM11910) Bearing outer

2шт.

14

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - (Timken #LM67010) Bearing inner

2шт.

15

T17079

CUP

SEAL AND CONE - wheel hub

2шт.

16

F83448

SPINDLE - R.H. (40" axle)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.

F83452

SPINDLE - R.H. (66" axle)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.

17

F83082

SPINDLE - L.H. steering (40" axle)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.

F83085

SPINDLE - L.H. (66" axle)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.

18

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - spindle

2шт.

19

F83446

AXLE

- rear (40") Replaced by F91738

1шт.

F91738

AXLE

- rear (40") Replaces F83446 when stock is exh.

1шт.

F83450

AXLE - rear (66")

1шт.

20

F11016

BUSHING - (For F83450 axle)

4шт.

F14814

BUSHING - (For F83446 and F91738 axles)

4шт.

F14813

SPACER - (Between F14814 bushings) Not shown

2шт.

21

F16989

SPACER

1шт.

22

F18831

SPACER

SUPPORT - (Rubber) Spacer

2шт.

23

F19421

BUSHING

- pivot

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease

2шт.

24

F16990

WASHER - thrust, pivot bolt

2шт.

25

F18113

BOLT

- rear axle pivot

1шт.

NUT - 5/8" N.F. hex. (25-1110) Shakeproof L.W. (193-14)

1шт.

26

F18081

TUBE - tie rod (40" axle)

1шт.

27

F18082

CLAMP - L.H. end (40" axle)

2шт.

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.F. hex. (131-5) Jam nut

2шт.

28

F82096

END

- L.H.

1шт.

PIN - cotter, 1/8" x 1-1/4" (132-50) 9/16" L.W. (92-9)

1шт.

29

F82095

ROD

END - R.H.

1шт.

PIN - cotter, 1/8" x 1-1/4" (132-50) 9/16" L.W. (92-9)

1шт.

30

G46043

COVER

SEAL - rubber, tie rod ends

2шт.

31

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" N.F. hex. slotted (For ends)

2шт.

32

F18080

TUBE - tie rod (66" axle) 53.875" L

1шт.

33

G49084

JAM NUT

- jam R.H. (66" axle)

1шт.

34

G49085

JAM NUT

- jam L.H. (66" axle)

1шт.
