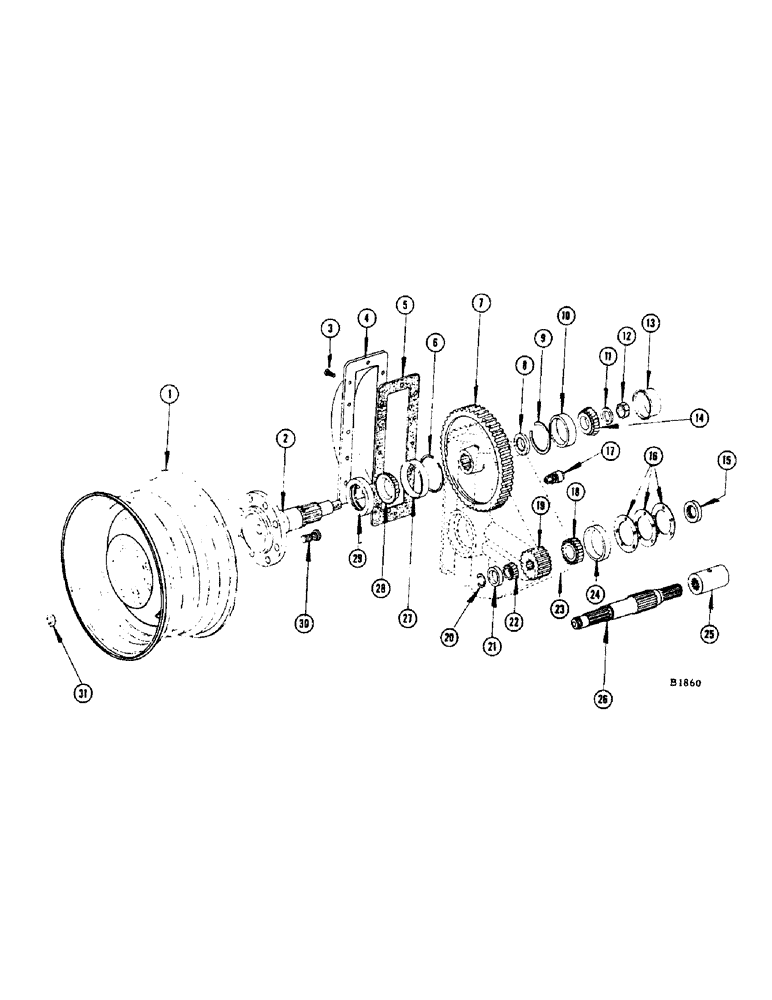

Запчасти Case IH 960 (318) - FINAL DROP BOX HOUSING, 960 SPECIAL COMBINE (25) - FRONT AXLE SYSTEM

1

F19309

WHEEL - rim and disc (For 18.4/15 x 26, 8 ply tire)

2шт.

F20562

DISC

WHEEL - rim and disc (For 23.1/18 x 26, 8 ply)

2шт.

F84858

WHEEL - rim and disc (For 18.4/15 x 30 tires)

2шт.

F94077

WHEEL - rim and disc (For 28.1 x 26, 10 ply)

2шт.

2

F3415

SHAFT AND HUB - axle, drive wheel

2шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8" x 3/4" N.C. hex.

24шт.

92-6

LOCK WASHER,3/8"

24шт.

4

F19474

PAN - drop box housing

2шт.

PLUG - 3/4" pipe (221-5)

2шт.

5

F18266

GASKET - drop box housing pan

2шт.

6

F18198

SNAP RING - outer, final drive shaft bearing (If req'd)

2шт.

7

F19515

GEAR - (82T) Final drive

2шт.

8

F19603

SPACER - final drive gear

2шт.

9

F19669

SNAP RING - inner, final drive shaft bearing (If req'd)

2шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner drive shaft

2шт.

11

F19658

WASHER - final drive shaft nut

2шт.

12

F19657

NUT

- final drive shaft

2шт.

PIN - cotter 5/32" x 1-3/4" (132-75)

2шт.

13

F23266

CAP - inner bearing, final drive shaft

2шт.

14

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner, drive shaft

2шт.

15

F22582

OIL SEAL

- inner, axle shaft

2шт.

F18181

OIL SEAL

- inner, axle shaft (Replaced by F22582)

2шт.

16

F18263

SHIM - (.003") Axle shaft bearing

4шт.

F18264

SHIM - (.005") Axle shaft bearing

4шт.

F18265

SHIM - (.010") Axle shaft bearing

4шт.

17

T25082

BREATHER - final drive housing

2шт.

18

O818CS

CONE

- axle shaft bearing, inner

2шт.

19

F19514

PINION - (15T) Final drive

2шт.

20

F18197

SNAP RING

- outer, axle shaft bearing

2шт.

21

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - axle shaft bearing, outer

2шт.

22

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - axle shaft bearing, outer

2шт.

23

F1612

HOUSING - R.H., final drive

1шт.

ELBOW - 3/4" - 90 degrees (221-378)

1шт.

NIPPLE - 3/4" pipe (221-221)

1шт.

CAP - 3/4" pipe (221-526)

1шт.

NIPPLE - 3/4" x 2-1/4" reducing (221-701)

1шт.

PLUG - pipe 3/4" (221-15)

1шт.

F1620

HOUSING - L.H., final drive

1шт.

ELBOW - 3/4" - 90 degrees (221-378)

1шт.

NIPPLE - 3/4" pipe (221-221)

1шт.

CAP - 3/4" pipe (221-526)

1шт.

NIPPLE - 3/4" x 2-1/4" reducing (221-701)

1шт.

PLUG - pipe 3/4" (221-15)

1шт.

24

F62007

CUP

- axle shaft bearing, inner

2шт.

25

F19601

SLEEVE - axle shaft to inner axle shaft

2шт.

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

2шт.

26

F19607

SHAFT - final drive pinion

2шт.

27

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - outer, drive shaft

2шт.

28

G15207

ROLLER BEARING

CONE - outer, drive shaft

2шт.

29

F22670

SEAL

OIL SEAL - outer, final drive shaft

2шт.

30

F18184

BOLT - wheel (8 for each wheel)

16шт.

30

F22153

BOLT - wheel (8 for each) Use on F84858 wheel - 2-1/4" long

16шт.

31

F62206

NUT

- wheel

16шт.
